NA2XSH / NA2XS(F)H / NA2XS(FL)H Cable
The NA2XSH medium voltage cable, along with the multicore variants designated NA2XSEH, are low smoke zero halogen insulated and sheathed cables. Increasingly European projects are specifying MV cables that run from outside to in without jointing (as opposed to terminating externally) and with that the need exists for a cable with the fire protection properties of an LSZH cable. The NA2XSH and its variants are CPR compliant.
NA2XSH cable specification
NA2XSH cables are the aluminium conductor equivalent of the N2XSH cables, typically selected where space constraints in installation are not a consideration, as aluminium cables are significantly larger than the equivalent current carrying capacity sized copper cables.
Like these copper cables, the NA2XSH 6/10kV, 12/20kV and 18/30kV cables are also available with additional waterblocking layers, either single - NA2XS(F)H - or dual - NA2XS(FL)H. This provides a longitudinal and radial layer of protection for the conductor in the event that the cables are installed in places subject to intermittent flooding or waterlogging, such as cable ducts. As a European standard MV cable, the NA2XSH can also be buried direct in the ground without the provision of additional protection (where appropriate under any prevailing building and wiring regulations).
NA2XSH cable voltages
Predominantly this cable is specified with a voltage rating of 12/20kV. The NA2XSH cable is also available in other voltage ratings, including 6/10kV and 18/30kV. Where 3-core variants are required, this information can be supplied on request.
NA2XSH cable datasheets
The choice of NA2XSH cables versus N2XSH may be appropriate if the installation requires a lighter cable - our MV technical team can support with making that decision. Similarly, they can advise if a alternate sheathing material, NA2XSY for PVC or NA2XS2Y for PE, may be more suitable. In all cases, information on dimensions and electrical characteristics are available on the cable datasheets, whilst our technical experts can provide support from specification to installation, by phone and by email, providing advice, fast quotes and an express delivery, often directly from stock.
Construction Table
NA2XSH Aluminium XLPE LSZH 12/20kV Cable
|

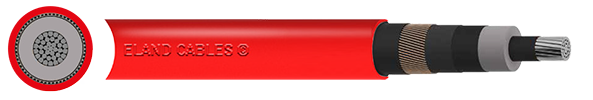

NA2XS(F)H Aluminium XLPE LSZH 12/20kV Cable
|

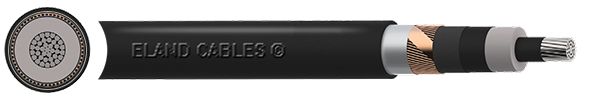

NA2XS(FL)H Aluminium XLPE LSZH 12/20kV Cable
|
|
|---|---|---|---|
| CONDUCTOR | Class 2 stranded Aluminium | ||
| CONDUCTOR SCREEN | Semi-conductive material | ||
| INSULATION | XLPE (Cross-linked Polyethylene) | ||
| INSULATION SCREEN | Semi-conductive material | ||
| BEDDING | LSZH (Low Smoke Zero Halogen) | ||
| SCREEN | Copper wires and Copper tape | ||
| WATER-BLOCKING | - | Longitudinal Waterblocking tape either side of screen | Longitudinal Waterblocking tape either side of screen + Radial Al/PET waterblocking bonded to sheath |
| OUTER SHEATH | LSZH (Low Smoke Zero Halogen) | ||
NA2XSH / NA2XS(F)H / NA2XS(FL)H Cable
YOUR CABLE OPTIONS
Use the FastQuote filters to find the exact cable specifications you need.
Need a bespoke solution? Learn more about customised cables.
| Product name | Part No | Cores | Nominal cross-sectional area (mm²) | Sheath colour | Length (m) | |
|---|---|---|---|---|---|---|
| NA2XSH Aluminium XLPE LSZH 6/10kV Cable | C9XH10KV1035RDC | 1 | 35mm² | Red | ||
| NA2XSH Aluminium XLPE LSZH 6/10kV Cable | C9XH10KV1050RDC | 1 | 50mm² | Red | ||
| NA2XSH Aluminium XLPE LSZH 6/10kV Cable | C9XH10KV1070RDC | 1 | 70mm² | Red | ||
| NA2XSH Aluminium XLPE LSZH 6/10kV Cable | C9XH10KV1095RDC | 1 | 95mm² | Red | ||
| NA2XSH Aluminium XLPE LSZH 6/10kV Cable | C9XH10KV1120RDC | 1 | 120mm² | Red | ||
| NA2XSH Aluminium XLPE LSZH 6/10kV Cable | C9XH10KV1150RDC | 1 | 150mm² | Red | ||
| NA2XSH Aluminium XLPE LSZH 6/10kV Cable | C9XH10KV1185RDC | 1 | 185mm² | Red | ||
| NA2XSH Aluminium XLPE LSZH 6/10kV Cable | C9XH10KV1240RDC | 1 | 240mm² | Red | ||
| NA2XSH Aluminium XLPE LSZH 6/10kV Cable | C9XH10KV1300RDC | 1 | 300mm² | Red | ||
| NA2XSH Aluminium XLPE LSZH 6/10kV Cable | C9XH10KV1400RDC | 1 | 400mm² | Red | ||
| NA2XSH Aluminium XLPE LSZH 6/10kV Cable | C9XH10KV1500RDC | 1 | 500mm² | Red | ||
| NA2XSH Aluminium XLPE LSZH 6/10kV Cable | C9XH10KV1630RDC | 1 | 630mm² | Red | ||
| NA2XSH Aluminium XLPE LSZH 8.7/15kV Cable | C9XH15KV1050 | 1 | 50mm² | Black | ||
| NA2XSH Aluminium XLPE LSZH 8.7/15kV Cable | C9XH15KV1070 | 1 | 70mm² | Black | ||
| NA2XSH Aluminium XLPE LSZH 8.7/15kV Cable | C9XH15KV1095 | 1 | 95mm² | Black | ||
| NA2XSH Aluminium XLPE LSZH 8.7/15kV Cable | C9XH15KV1120 | 1 | 120mm² | Black | ||
| NA2XSH Aluminium XLPE LSZH 8.7/15kV Cable | C9XH15KV1150 | 1 | 150mm² | Black | ||
| NA2XSH Aluminium XLPE LSZH 8.7/15kV Cable | C9XH15KV1185 | 1 | 185mm² | Black | ||
| NA2XSH Aluminium XLPE LSZH 8.7/15kV Cable | C9XH15KV1240 | 1 | 240mm² | Black | ||
| NA2XSH Aluminium XLPE LSZH 8.7/15kV Cable | C9XH15KV1300 | 1 | 300mm² | Black | ||
| NA2XSH Aluminium XLPE LSZH 8.7/15kV Cable | C9XH15KV1400 | 1 | 400mm² | Black | ||
| NA2XSH Aluminium XLPE LSZH 8.7/15kV Cable | C9XH15KV1500 | 1 | 500mm² | Black | ||
| NA2XSH Aluminium XLPE LSZH 8.7/15kV Cable | C9XH15KV1630 | 1 | 630mm² | Black | ||
| NA2XSH Aluminium XLPE LSZH 8.7/15kV Cable | C9XH15KV1800 | 1 | 800mm² | Black | ||
| NA2XSH Aluminium XLPE LSZH 8.7/15kV Cable | C9XH15KV11000 | 1 | 1000mm² | Black | ||
| NA2XSH Aluminium XLPE LSZH 12/20kV Cable | C9XH20KV1035RDC | n/a | n/a | Red | ||
| NA2XSH Aluminium XLPE LSZH 12/20kV Cable | C9XH20KV1050RDC | n/a | n/a | Red | ||
| NA2XSH Aluminium XLPE LSZH 12/20kV Cable | C9XH20KV1070RDC | n/a | n/a | Red | ||
| NA2XSH Aluminium XLPE LSZH 12/20kV Cable | C9XH20KV1095RDC | n/a | n/a | Red | ||
| NA2XSH Aluminium XLPE LSZH 12/20kV Cable | C9XH20KV1120RDC | n/a | n/a | Red | ||
| NA2XSH Aluminium XLPE LSZH 12/20kV Cable | C9XH20KV1150RDC | n/a | n/a | Red | ||
| NA2XSH Aluminium XLPE LSZH 12/20kV Cable | C9XH20KV1185RDC | n/a | n/a | Red | ||
| NA2XSH Aluminium XLPE LSZH 12/20kV Cable | C9XH20KV1240RDC | n/a | n/a | Red | ||
| NA2XSH Aluminium XLPE LSZH 12/20kV Cable | C9XH20KV1300RDC | n/a | n/a | Red | ||
| NA2XSH Aluminium XLPE LSZH 12/20kV Cable | C9XH20KV1400RDC | n/a | n/a | Red | ||
| NA2XSH Aluminium XLPE LSZH 12/20kV Cable | C9XH20KV1500RDC | n/a | n/a | Red | ||
| NA2XSH Aluminium XLPE LSZH 12/20kV Cable | C9XH20KV1630RDC | n/a | n/a | Red | ||
| NA2XSH Aluminium XLPE LSZH 12/20kV Cable | C9XH20KV3035RDC | n/a | n/a | Red | ||
| NA2XSH Aluminium XLPE LSZH 12/20kV Cable | C9XH20KV3050RDC | n/a | n/a | Red | ||
| NA2XSH Aluminium XLPE LSZH 12/20kV Cable | C9XH20KV3070RDC | n/a | n/a | Red | ||
| NA2XSH Aluminium XLPE LSZH 12/20kV Cable | C9XH20KV3095RDC | n/a | n/a | Red | ||
| NA2XSH Aluminium XLPE LSZH 12/20kV Cable | C9XH20KV3120RDC | n/a | n/a | Red | ||
| NA2XSH Aluminium XLPE LSZH 12/20kV Cable | C9XH20KV3150RDC | n/a | n/a | Red | ||
| NA2XSH Aluminium XLPE LSZH 12/20kV Cable | C9XH20KV3185RDC | n/a | n/a | Red | ||
| NA2XSH Aluminium XLPE LSZH 12/20kV Cable | C9XH20KV3240RDC | n/a | n/a | Red | ||
| NA2XSH Aluminium XLPE LSZH 12/20kV Cable | C9XH20KV3300RDC | n/a | n/a | Red | ||
| NA2XSH Aluminium XLPE LSZH 12/20kV Cable | C9XH20KV3400RDC | n/a | n/a | Red | ||
| NA2XSH Aluminium XLPE LSZH 18/30kV Cable | C9XH30KV1035RDC | 1 | 35mm² | Red | ||
| NA2XSH Aluminium XLPE LSZH 18/30kV Cable | C9XH30KV1050RDC | 1 | 50mm² | Red | ||
| NA2XSH Aluminium XLPE LSZH 18/30kV Cable | C9XH30KV1070RDC | 1 | 70mm² | Red | ||
| NA2XSH Aluminium XLPE LSZH 18/30kV Cable | C9XH30KV1095RDC | 1 | 95mm² | Red | ||
| NA2XSH Aluminium XLPE LSZH 18/30kV Cable | C9XH30KV1120RDC | 1 | 120mm² | Red | ||
| NA2XSH Aluminium XLPE LSZH 18/30kV Cable | C9XH30KV1150RDC | 1 | 150mm² | Red | ||
| NA2XSH Aluminium XLPE LSZH 18/30kV Cable | C9XH30KV1185RDC | 1 | 185mm² | Red | ||
| NA2XSH Aluminium XLPE LSZH 18/30kV Cable | C9XH30KV1240RDC | 1 | 240mm² | Red | ||
| NA2XSH Aluminium XLPE LSZH 18/30kV Cable | C9XH30KV1300RDC | 1 | 300mm² | Red | ||
| NA2XSH Aluminium XLPE LSZH 18/30kV Cable | C9XH30KV1400RDC | 1 | 400mm² | Red | ||
| NA2XSH Aluminium XLPE LSZH 18/30kV Cable | C9XH30KV1500RDC | 1 | 500mm² | Red | ||
| NA2XSH Aluminium XLPE LSZH 18/30kV Cable | C9XH30KV1630RDC | 1 | 630mm² | Red | ||
| NA2XS(F)H Aluminium XLPE LSZH 8.7/15kV Cable | C9XHF15KV1050 | 1 | 50mm² | Black | ||
| NA2XS(F)H Aluminium XLPE LSZH 8.7/15kV Cable | C9XHF15KV1070 | 1 | 70mm² | Black | ||
| NA2XS(F)H Aluminium XLPE LSZH 8.7/15kV Cable | C9XHF15KV1095 | 1 | 95mm² | Black | ||
| NA2XS(F)H Aluminium XLPE LSZH 8.7/15kV Cable | C9XHF15KV1120 | 1 | 120mm² | Black | ||
| NA2XS(F)H Aluminium XLPE LSZH 8.7/15kV Cable | C9XHF15KV1150 | 1 | 150mm² | Black | ||
| NA2XS(F)H Aluminium XLPE LSZH 8.7/15kV Cable | C9XHF15KV1185 | 1 | 185mm² | Black | ||
| NA2XS(F)H Aluminium XLPE LSZH 8.7/15kV Cable | C9XHF15KV1240 | 1 | 240mm² | Black | ||
| NA2XS(F)H Aluminium XLPE LSZH 8.7/15kV Cable | C9XHF15KV1300 | 1 | 300mm² | Black | ||
| NA2XS(F)H Aluminium XLPE LSZH 8.7/15kV Cable | C9XHF15KV1400 | 1 | 400mm² | Black | ||
| NA2XS(F)H Aluminium XLPE LSZH 8.7/15kV Cable | C9XHF15KV1500 | 1 | 500mm² | Black | ||
| NA2XS(F)H Aluminium XLPE LSZH 8.7/15kV Cable | C9XHF15KV1630 | 1 | 630mm² | Black | ||
| NA2XS(F)H Aluminium XLPE LSZH 8.7/15kV Cable | C9XHF15KV1800 | 1 | 800mm² | Black | ||
| NA2XS(F)H Aluminium XLPE LSZH 8.7/15kV Cable | C9XHF15KV11000 | 1 | 1000mm² | Black | ||
| NA2XS(F)H Aluminium XLPE LSZH 12/20kV Cable | C9XHF20KV1035RDC | 1 | 35mm² | Red | ||
| NA2XS(F)H Aluminium XLPE LSZH 12/20kV Cable | C9XHF20KV1050RDC | 1 | 50mm² | Red | ||
| NA2XS(F)H Aluminium XLPE LSZH 12/20kV Cable | C9XHF20KV1070RDC | 1 | 70mm² | Red | ||
| NA2XS(F)H Aluminium XLPE LSZH 12/20kV Cable | C9XHF20KV1095RDC | 1 | 95mm² | Red | ||
| NA2XS(F)H Aluminium XLPE LSZH 12/20kV Cable | C9XHF20KV1120RDC | 1 | 120mm² | Red | ||
| NA2XS(F)H Aluminium XLPE LSZH 12/20kV Cable | C9XHF20KV1150RDC | 1 | 150mm² | Red | ||
| NA2XS(F)H Aluminium XLPE LSZH 12/20kV Cable | C9XHF20KV1185RDC | 1 | 185mm² | Red | ||
| NA2XS(F)H Aluminium XLPE LSZH 12/20kV Cable | C9XHF20KV1240RDC | 1 | 240mm² | Red | ||
| NA2XS(F)H Aluminium XLPE LSZH 12/20kV Cable | C9XHF20KV1300RDC | 1 | 300mm² | Red | ||
| NA2XS(F)H Aluminium XLPE LSZH 12/20kV Cable | C9XHF20KV1400RDC | 1 | 400mm² | Red | ||
| NA2XS(F)H Aluminium XLPE LSZH 12/20kV Cable | C9XHF20KV1500RDC | 1 | 500mm² | Red | ||
| NA2XS(F)H Aluminium XLPE LSZH 12/20kV Cable | C9XHF20KV1630RDC | 1 | 630mm² | Red | ||
| NA2XS(F)H Aluminium XLPE LSZH 12/20kV Cable | C9XHF20KV3035RDC | 3 | 35mm² | Red | ||
| NA2XS(F)H Aluminium XLPE LSZH 12/20kV Cable | C9XHF20KV3050RDC | 3 | 50mm² | Red | ||
| NA2XS(F)H Aluminium XLPE LSZH 12/20kV Cable | C9XHF20KV3070RDC | 3 | 70mm² | Red | ||
| NA2XS(F)H Aluminium XLPE LSZH 12/20kV Cable | C9XHF20KV3095RDC | 3 | 95mm² | Red | ||
| NA2XS(F)H Aluminium XLPE LSZH 12/20kV Cable | C9XHF20KV3120RDC | 3 | 120mm² | Red | ||
| NA2XS(F)H Aluminium XLPE LSZH 12/20kV Cable | C9XHF20KV3150RDC | 3 | 150mm² | Red | ||
| NA2XS(F)H Aluminium XLPE LSZH 12/20kV Cable | C9XHF20KV3185RDC | 3 | 185mm² | Red | ||
| NA2XS(F)H Aluminium XLPE LSZH 12/20kV Cable | C9XHF20KV3240RDC | 3 | 240mm² | Red | ||
| NA2XS(F)H Aluminium XLPE LSZH 12/20kV Cable | C9XHF20KV3300RDC | 3 | 300mm² | Red | ||
| NA2XS(F)H Aluminium XLPE LSZH 12/20kV Cable | C9XHF20KV3400RDC | 3 | 400mm² | Red | ||
| NA2XS(FL)H Aluminium XLPE LSZH 12/20kV Cable | C9XHL20KV1035RDC | 1 | 35mm² | Red | ||
| NA2XS(FL)H Aluminium XLPE LSZH 12/20kV Cable | C9XHL20KV1050RDC | 1 | 50mm² | Red | ||
| NA2XS(FL)H Aluminium XLPE LSZH 12/20kV Cable | C9XHL20KV1070RDC | 1 | 70mm² | Red | ||
| NA2XS(FL)H Aluminium XLPE LSZH 12/20kV Cable | C9XHL20KV1095RDC | 1 | 95mm² | Red | ||
| NA2XS(FL)H Aluminium XLPE LSZH 12/20kV Cable | C9XHL20KV1120RDC | 1 | 120mm² | Red | ||
| NA2XS(FL)H Aluminium XLPE LSZH 12/20kV Cable | C9XHL20KV1150RDC | 1 | 150mm² | Red | ||
| NA2XS(FL)H Aluminium XLPE LSZH 12/20kV Cable | C9XHL20KV1185RDC | 1 | 185mm² | Red | ||
| NA2XS(FL)H Aluminium XLPE LSZH 12/20kV Cable | C9XHL20KV1240RDC | 1 | 240mm² | Red | ||
| NA2XS(FL)H Aluminium XLPE LSZH 12/20kV Cable | C9XHL20KV1300RDC | 1 | 300mm² | Red | ||
| NA2XS(FL)H Aluminium XLPE LSZH 12/20kV Cable | C9XHL20KV1400RDC | 1 | 400mm² | Red | ||
| NA2XS(FL)H Aluminium XLPE LSZH 12/20kV Cable | C9XHL20KV1500RDC | 1 | 500mm² | Red | ||
| NA2XS(FL)H Aluminium XLPE LSZH 12/20kV Cable | C9XHL20KV1630RDC | 1 | 630mm² | Red | ||
| NA2XS(FL)H Aluminium XLPE LSZH 12/20kV Cable | C9XHL20KV3035RDC | 3 | 35mm² | Red | ||
| NA2XS(FL)H Aluminium XLPE LSZH 12/20kV Cable | C9XHL20KV3050RDC | 3 | 50mm² | Red | ||
| NA2XS(FL)H Aluminium XLPE LSZH 12/20kV Cable | C9XHL20KV3070RDC | 3 | 70mm² | Red | ||
| NA2XS(FL)H Aluminium XLPE LSZH 12/20kV Cable | C9XHL20KV3095RDC | 3 | 95mm² | Red | ||
| NA2XS(FL)H Aluminium XLPE LSZH 12/20kV Cable | C9XHL20KV3120RDC | 3 | 120mm² | Red | ||
| NA2XS(FL)H Aluminium XLPE LSZH 12/20kV Cable | C9XHL20KV3150RDC | 3 | 150mm² | Red | ||
| NA2XS(FL)H Aluminium XLPE LSZH 12/20kV Cable | C9XHL20KV3185RDC | 3 | 185mm² | Red | ||
| NA2XS(FL)H Aluminium XLPE LSZH 12/20kV Cable | C9XHL20KV3240RDC | 3 | 240mm² | Red | ||
| NA2XS(FL)H Aluminium XLPE LSZH 12/20kV Cable | C9XHL20KV3300RDC | 3 | 300mm² | Red | ||
| NA2XS(FL)H Aluminium XLPE LSZH 12/20kV Cable | C9XHL20KV3400RDC | 3 | 400mm² | Red |
