Tri-rated Cable - BS6231 / UL758 / CSA22.2

Tri-Rated cable (also known as BS6231 control panel wire or switchgear cable) is a fire retardant cable used in electrical cabinets, switch control, relay and instrumentation panels of power switchgear. It derives its name from meeting the specifications of three separate standard-setting bodies – the British Standards Institute (BSi), the Underwriters Laboratories’ (UL) Appliance Wiring Materials (AWM), and the Canadian Standards Association (CSA) - hence making it tri-rated. This product's triple rating makes it highly sought-after around the world as the triple certification of these cables enables their use in the North American markets as well as the European ones, which can result in a leaner and more flexible equipment manufacturing process. These cables are referred to as H05V2-K and H07V2-K under their European harmonisation (HAR) designation code.

As a flexible (Class 5) high temperature, flame-retardant single core cable with a single layer of insulation of heat resistant polyvinyl chloride (PVC), tri-rated cable is designed and manufactured to be used in the wiring of electrical cabinets, switch control, relay and instrumentation panels of power switchgear, and for internal connectors in rectifier equipment, motor starters and controllers. It is also designed for use inside small electrical devices. As a result, tri-rated cable has applications in most industries.

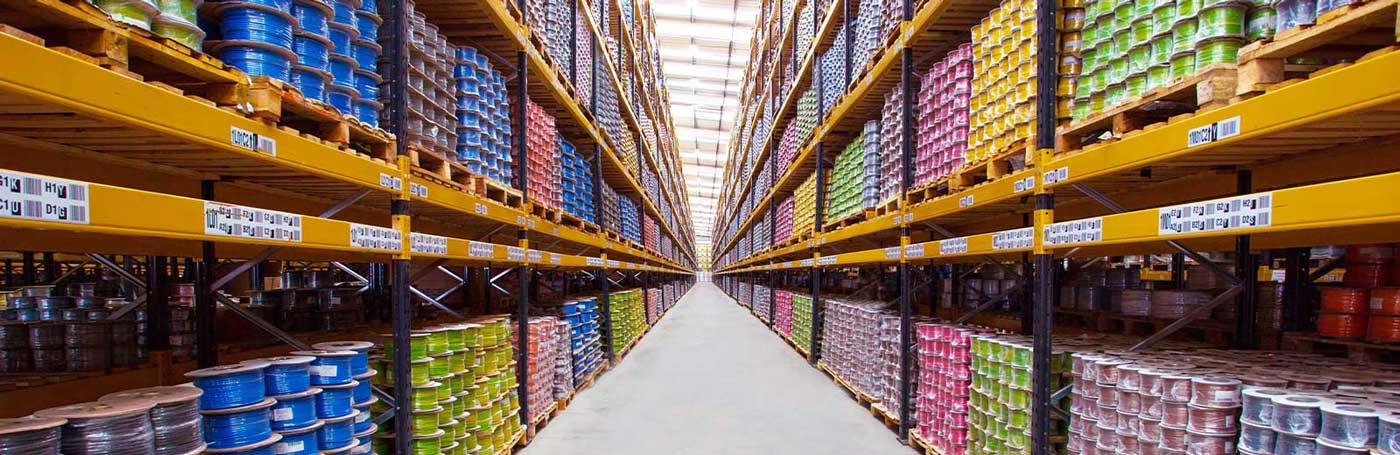

Eland Cables is a leading tri-rated cable supplier offering one of the most comprehensive ranges of sizes and colours in the industry. Our BS, CSA and UL-approved tri-rated cable is widely used by leading switchgear equipment manufacturers, and it features on some of the most prestigious lists of approved control panel wire and switchgear cable worldwide. Our tri-rated cable also BASEC approved.

As a cable supplier, we are unique in that we hold the BSI RoHS Kitemark and we test our cables in a UKAS accredited in-house laboratory accredited to ISO17025. Buy tri-rated cables from Eland Cables to ensure the quality of your products and installations.

Fastquote En

Your tailored quote direct to your inbox

Your basket is currently empty

More information

Tri-Rated Cable Standards & Approvals

British Standard Institute - British Standard BS6231 Type CK. This standard covers single core PVC insulated flexible electrical cables of rated voltage 600/1000V for switchgear and control gear wiring.

British Standard BS6231 Type CK specifications require this high temperature cable to operate at a maximum temperature of 90oC in continuous use, however tri rated cable has a maximum operating temperature of 105oC in order to also comply with UL758 and CSA 22.2 No.210.

Tri-rated cable, panel wire manufactured to BS6231 Type CK, should not be confused with other cable manufactured to BS6231 Type BK which has a maximum conductor operating temperature of 70oC.

Canadian Standards Association - CSA 22.2 This standard specifies the requirement for flexible cords, elevator cables, and hoistway cables rated to a maximum of 600V.

UL 758 This standard specifies the requirements for flexible cords, elevator cables, electric vehicle cables, and hoistway cables rated up to 600V.

Our cables are recognised to UL style:
 - UL 1015 cable size: 30 AWG - 2000 kcmil

Our Tri-Rated cable also holds BASEC approval from the British Approvals Service for Cables.

Tri-rated sheath product colour codes

Colour Product Code Colour Product Code
Black BK Green GN
Light Blue LTBL Dark Blue DKBL
Blue BL Green/Yellow GY
Orange OR Red RD
Pink PK Yellow YW
Violet VI Brown BR
White WH Grey GR

The above colours are available as standard. Other colours are available upon request.

Bi-Rated Cable

As BS6231 covers sizes up to a maximum of 240mm2, panel wire with a size ranging up to 500mm2 which are covered under the specifications set by the CSA and UL are known as bi-rated cables.

H05V2-K / H07V2-K Cable

Our cables also meet and exceed the requirements of the harmonised cable types H05V2-K and H07V2-K.

H05Z-K / H07Z-K / 2491B / 6701B - LSZH Cable

As trirated cable is not suitable for applications requiring Low Smoke Zero Halogen (LSZH) insulation, alternative panel wire must be used. These include H05Z-K, H07Z-K, 2491B and 6701B with these panel wires generally being required for use in public areas to prevent the smoke and toxic fumes which could represent a threat to life or cause damage to equipment in the event of a fire.

Tri-Rated Cable Selection

Please refer to our tri-rated cable product datasheet for the full cable specification and for guidance on the utilisation of the information contained in the above tri-rated dimensions and electrical characteristics table. Our technical engineers have a wealth of experience advising on tri-rated current rating (current carrying capacity) and voltage drop. Please contact us to discuss our tri-rated specifications and for technical support with selecting the right cable for your specific application. Please use our Fast Quote application or contact our sales team to obtain a product quote.

Construction Table

  tri-rated-cable-h05v2-k-h07v2-k-end.png Tri-Rated Cable - BS6231 / UL758 / CSA22.2
VOLTAGE

UL, CSA: 0.6/1kV
BS 6231: 0.6/1kV
BS EN 50525-2-31: 300/500V, 450/750V

CONDUCTOR

Class 5 Flexible Copper Conductor

OUTER SHEATH

PVC (Polyvinyl Chloride)

Tri-Rated Cable - BS6231 / UL758 / CSA22.2

1 product(s)

YOUR CABLE OPTIONS

Use the FastQuote filters to find the exact cable specifications you need.

Need a bespoke solution? Click here.

Reset

Product name Part No Nominal cross-sectional area (mm²) Size (AWG) Sheath colour Length (m)
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBK0005 0.5 22 Black
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBK00075 0.75 20 Black
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBK0010 1 18 Black
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBK0015 1.5 16 Black
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBK0025 2.5 14 Black
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBK0040 4 12 Black
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBK0060 6 10 Black
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBK010 10 8 Black
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBK016 16 6 Black
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBK025 25 4 Black
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBK035 35 2 Black
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBK050 50 1 Black
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBK070 70 2/0 Black
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBK095 95 3/0 Black
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBK120 120 4/0 Black
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBK150 150 250 MCM Black
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBK185 185 350 MCM Black
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBK240 240 450 MCM Black
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGN0005 0.5 22 Green
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGN00075 0.75 20 Green
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGN0010 1 18 Green
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGN0015 1.5 16 Green
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGN0025 2.5 14 Green
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGN0040 4 12 Green
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGN0060 6 10 Green
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBL0005 0.5 22 Blue
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBL00075 0.75 20 Blue
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBL0010 1 18 Blue
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBL0015 1.5 16 Blue
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBL0025 2.5 14 Blue
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBL0040 4 12 Blue
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBL0060 6 10 Blue
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBL010 10 8 Blue
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBL016 16 6 Blue
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBL025 25 4 Blue
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBL035 35 2 Blue
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBL050 50 1 Blue
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBL070 70 2/0 Blue
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBL095 95 3/0 Blue
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBL120 120 4/0 Blue
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TLTBL0005 0.5 22 Light Blue
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TLTBL00075 0.75 20 Light Blue
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TLTBL0010 1 18 Light Blue
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TLTBL0015 1.5 16 Light Blue
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TLTBL0025 2.5 14 Light Blue
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TLTBL0040 4 12 Light Blue
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TLTBL0060 6 10 Light Blue
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TDKBL0005 0.5 22 Dark Blue
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TDKBL00075 0.75 20 Dark Blue
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TDKBL0010 1 18 Dark Blue
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TDKBL0015 1.5 16 Dark Blue
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TDKBL0025 2.5 14 Dark Blue
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TDKBL0040 4 12 Dark Blue
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TDKBL0060 6 10 Dark Blue
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGR0005 0.5 22 Grey
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGR00075 0.75 20 Grey
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGR0010 1 18 Grey
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGR0015 1.5 16 Grey
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGR0025 2.5 14 Grey
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGR0040 4 12 Grey
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGR0060 6 10 Grey
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGR010 10 8 Grey
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGR016 16 6 Grey
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGR025 25 4 Grey
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGR035 35 2 Grey
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGR050 50 1 Grey
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGR070 70 2/0 Grey
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGR095 95 3/0 Grey
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGY0005 0.5 22 Green/Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGY00075 0.75 20 Green/Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGY0010 1 18 Green/Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGY0015 1.5 16 Green/Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGY0025 2.5 14 Green/Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGY0040 4 12 Green/Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGY0060 6 10 Green/Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGY010 10 8 Green/Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGY016 16 6 Green/Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGY025 25 4 Green/Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGY035 35 2 Green/Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGY050 50 1 Green/Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGY070 70 2/0 Green/Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGY095 95 3/0 Green/Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGY120 120 4/0 Green/Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGY150 150 250 MCM Green/Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGY185 185 350 MCM Green/Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TGY240 240 450 MCM Green/Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TOR0005 0.5 22 Orange
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TOR00075 0.75 20 Orange
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TOR0010 1 18 Orange
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TOR0015 1.5 16 Orange
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TOR0025 2.5 14 Orange
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TOR0040 4 12 Orange
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TOR0060 6 10 Orange
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TRD0005 0.5 22 Red
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TRD00075 0.75 20 Red
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TRD0010 1 18 Red
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TRD0015 1.5 16 Red
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TRD0025 2.5 14 Red
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TRD0040 4 12 Red
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TRD0060 6 10 Red
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TRD010 10 8 Red
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TRD016 16 6 Red
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TRD025 25 4 Red
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TRD035 35 2 Red
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TRD050 50 1 Red
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TRD070 70 2/0 Red
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TRD095 95 3/0 Red
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TPK0005 0.5 22 Pink
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TPK00075 0.75 20 Pink
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TPK0010 1 18 Pink
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TPK0015 1.5 16 Pink
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TPK0025 2.5 14 Pink
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TPK0040 4 12 Pink
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TPK0060 6 10 Pink
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TYW0005 0.5 22 Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TYW00075 0.75 20 Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TYW0010 1 18 Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TYW0015 1.5 16 Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TYW0025 2.5 14 Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TYW0040 4 12 Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TYW0060 6 10 Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TYW010 10 8 Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TYW016 16 6 Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TYW025 25 4 Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TYW035 35 2 Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TYW050 50 1 Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TYW070 70 2/0 Yellow
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TVI0005 0.5 22 Violet
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TVI00075 0.75 20 Violet
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TVI0010 1 18 Violet
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TVI0015 1.5 16 Violet
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TVI0025 2.5 14 Violet
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TVI0040 4 12 Violet
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TVI0060 6 10 Violet
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBR0005 0.5 22 Brown
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBR00075 0.75 20 Brown
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBR0010 1 18 Brown
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBR0015 1.5 16 Brown
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBR0025 2.5 14 Brown
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBR0040 4 12 Brown
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBR0060 6 10 Brown
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBR010 10 8 Brown
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBR016 16 6 Brown
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBR025 25 4 Brown
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBR035 35 2 Brown
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBR050 50 1 Brown
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBR070 70 2/0 Brown
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TBR095 95 3/0 Brown
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TWH0005 0.5 22 White
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TWH00075 0.75 20 White
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TWH0010 1 18 White
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TWH0015 1.5 16 White
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TWH0025 2.5 14 White
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TWH0040 4 12 White
Tri-rated Cable - BS6231 / UL758 / CSA22.2 A2TWH0060 6 10 White
