H05BZ5-F and H07BZ5-F cables
to H05BZ5-F & H07BZ5-F Cable datasheet
Key Features: H05BZ5-F & H07BZ5-F Cable
- Application: Electric vehicle connection cable.
- Suitability: Domestic and public fast-charge units (Mode 1, 2 and 3). Suitable for permanent external installation.
- Standards & Voltage Rating: EN 50620. H05BZ5-F 300/500V. H07BZ5-F 450/750V.
- Construction: Class 5 flexible stranded Copper conductor, Rubber insulation, Communication and Pilot cores, and Polyurethane Halogen Free (PUR-HF) outer sheath.
- Details: Tear resistant. Good resistance to oils and greases.
Eland Cables is a leading global supplier of power, instrumentation and data cables for critical infrastructure and electrification. Our complete cable solutions are underpinned by technical expertise and our Cable Lab®, ensures rigorous compliance. Contact our team to discuss your requirements.
Jump To:
- H05BZ5-F & H07BZ5-F EV connection cable
- H05BZ5-F & H07BZ5-F Cable Specification
- Specifying EV Charging Cables
- Datasheet
The H05BZ5-F and H07BZ5-F cables are part of Eland Cables' EV portfolio, offering an end-to-end, grid to car solution for electric vehicle charging. They are AC charging cables for plug-in connections running from car to charging unit, to be terminated with a moulded plug, whether universal format or model specific..
The H05BZ5-F cable and H07BZ5-F cable are suitable for domestic (Mode 1) and some public fast-charge units (Mode 2 and 3 - AC) and are manufactured in accordance with the harmonised European standard EN 50620.
The standard IEC/EN 61851-1 prescribes the charging modes the cables are suitable for: the H05BZ5-F cable with its conductors up to 2.5mm2 fulfils the criteria for AC domestic charging units for electric vehicles (classified as Mode 1). These cables have a rated voltage of 300/500V, suitable for single-phase current circuits.
The H07BZ5-F cables are covered under the harmonised standard to a cross-sectional area size of 35mm2, and are suitable for 'Mode 2' AC charging units up to 22kW and 'Mode 3' AC charging to 43kW. These cables offer three-phase current charging as the larger conductor sizes have a higher voltage rating of 450/750V.

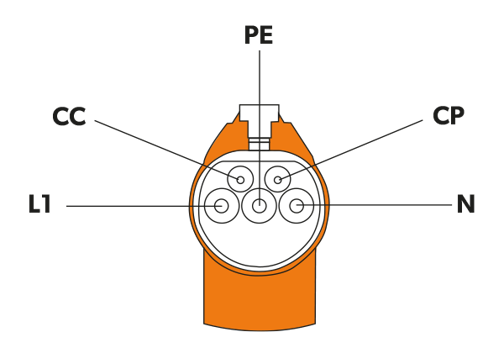

These multicore cables all have rubber insulated flexible copper conductors, laid up alongside control (CC) and pilot (CP) cores of 0.5mm2 and 1.0mm2 for communication, all sheathed in a halogen-free Polyurethane. PUR is a hard-wearing, tear resistant material with good resistance to oils and greases. It is suitable for permanent external installation.
Where an AC max voltage of 0.6/1kV is required, the Eland EV Charging cable should also be considered (also suitable for DC charge to 1.8kV). Our Mode 4 EV charge cable may also be appropriate for your installations. For more information and to discuss your project with one of our EV industry experts, please get in touch.
More information
Construction Table
H05BZ5-F and H07BZ5-F cables
|
|
|---|---|
| VOLTAGE | H05BZ5-F 300/500V |
| CONDUCTOR | Class 5 flexible stranded Copper |
| INSULATION | Rubber |
| LAY UP | With Communication and Pilot cores |
| OUTER SHEATH | PUR-HF (Polyurethane Halogen Free) |
YOUR CABLE OPTIONS
Use the FastQuote filters to find the exact cable specifications you need.
Need a bespoke solution? Learn more about customised cables.
| Product name | Part No | Cores | Nominal cross-sectional area (mm²) | Sheath colour | Length (m) | |
|---|---|---|---|---|---|---|
| H05BZ5-F and H07BZ5-F cables | B6Q1030015BK | 3 | 1.5mm² | Black | ||
| H05BZ5-F and H07BZ5-F cables | B6Q2030015BK | 3 | 1.5mm² | Black | ||
| H05BZ5-F and H07BZ5-F cables | B6Q1030025BK | 3 | 2.5mm² | Black | ||
| H05BZ5-F and H07BZ5-F cables | B6Q2030025BK | 3 | 2.5mm² | Black | ||
| H05BZ5-F and H07BZ5-F cables | B6Q2030040BK | 3 | 4mm² | Black | ||
| H05BZ5-F and H07BZ5-F cables | B6Q2030060BK | 3 | 6mm² | Black | ||
| H05BZ5-F and H07BZ5-F cables | B6Q203010BK | 3 | 10mm² | Black | ||
| H05BZ5-F and H07BZ5-F cables | B6Q203016BK | 3 | 16mm² | Black | ||
| H05BZ5-F and H07BZ5-F cables | B6Q203025BK | 3 | 25mm² | Black | ||
| H05BZ5-F and H07BZ5-F cables | B6Q203035BK | 3 | 35mm² | Black | ||
| H05BZ5-F and H07BZ5-F cables | B6Q2040025BK | 4 | 2.5mm² | Black | ||
| H05BZ5-F and H07BZ5-F cables | B6Q2040040BK | 4 | 4mm² | Black | ||
| H05BZ5-F and H07BZ5-F cables | B6Q2040060BK | 4 | 5mm² | Black | ||
| H05BZ5-F and H07BZ5-F cables | B6Q204010BK | 4 | 10mm² | Black | ||
| H05BZ5-F and H07BZ5-F cables | B6Q204016BK | 4 | 16mm² | Black | ||
| H05BZ5-F and H07BZ5-F cables | B6Q204025BK | 4 | 25mm² | Black | ||
| H05BZ5-F and H07BZ5-F cables | B6Q2050025BK | 5 | 2.5mm² | Black | ||
| H05BZ5-F and H07BZ5-F cables | B6Q2050040BK | 5 | 4mm² | Black | ||
| H05BZ5-F and H07BZ5-F cables | B6Q2050060BK | 5 | 6mm² | Black | ||
| H05BZ5-F and H07BZ5-F cables | B6Q205010BK | 5 | 10mm² | Black | ||
| H05BZ5-F and H07BZ5-F cables | B6Q205016BK | 5 | 16mm² | Black | ||
| H05BZ5-F and H07BZ5-F cables | B6Q205025BK | 5 | 25mm² | Black | ||
| H05BZ5-F and H07BZ5-F cables | B6Q205035BK | 5 | 35mm² | Black | ||
| H05BZ5-F and H07BZ5-F cables | B6Q1030015OR | 3 | 1.5mm² | Orange | ||
| H05BZ5-F and H07BZ5-F cables | B6Q2030015OR | 3 | 1.5mm² | Orange | ||
| H05BZ5-F and H07BZ5-F cables | B6Q1030025OR | 3 | 2.5mm² | Orange | ||
| H05BZ5-F and H07BZ5-F cables | B6Q2030025OR | 3 | 2.5mm² | Orange | ||
| H05BZ5-F and H07BZ5-F cables | B6Q2030040OR | 3 | 4mm² | Orange | ||
| H05BZ5-F and H07BZ5-F cables | B6Q2030060OR | 3 | 6mm² | Orange | ||
| H05BZ5-F and H07BZ5-F cables | B6Q203010OR | 3 | 10mm² | Orange | ||
| H05BZ5-F and H07BZ5-F cables | B6Q203016OR | 3 | 16mm² | Orange | ||
| H05BZ5-F and H07BZ5-F cables | B6Q203025OR | 3 | 25mm² | Orange | ||
| H05BZ5-F and H07BZ5-F cables | B6Q203035OR | 3 | 35mm² | Orange | ||
| H05BZ5-F and H07BZ5-F cables | B6Q2040025OR | 4 | 2.5mm² | Orange | ||
| H05BZ5-F and H07BZ5-F cables | B6Q2040040OR | 4 | 4mm² | Orange | ||
| H05BZ5-F and H07BZ5-F cables | B6Q2040060OR | 4 | 5mm² | Orange | ||
| H05BZ5-F and H07BZ5-F cables | B6Q204010OR | 4 | 10mm² | Orange | ||
| H05BZ5-F and H07BZ5-F cables | B6Q204016OR | 4 | 16mm² | Orange | ||
| H05BZ5-F and H07BZ5-F cables | B6Q204025OR | 4 | 25mm² | Orange | ||
| H05BZ5-F and H07BZ5-F cables | B6Q2050025OR | 5 | 2.5mm² | Orange | ||
| H05BZ5-F and H07BZ5-F cables | B6Q2050040OR | 5 | 4mm² | Orange | ||
| H05BZ5-F and H07BZ5-F cables | B6Q2050060OR | 5 | 6mm² | Orange | ||
| H05BZ5-F and H07BZ5-F cables | B6Q205010OR | 5 | 10mm² | Orange | ||
| H05BZ5-F and H07BZ5-F cables | B6Q205016OR | 5 | 16mm² | Orange | ||
| H05BZ5-F and H07BZ5-F cables | B6Q205025OR | 5 | 25mm² | Orange | ||
| H05BZ5-F and H07BZ5-F cables | B6Q205035OR | 5 | 35mm² | Orange |
