Cable lugs

Eland Cables supplies a comprehensive range of cable lugs (also referred to as crimp lugs) designed for terminating and connecting our low and medium voltage cables to equipment.

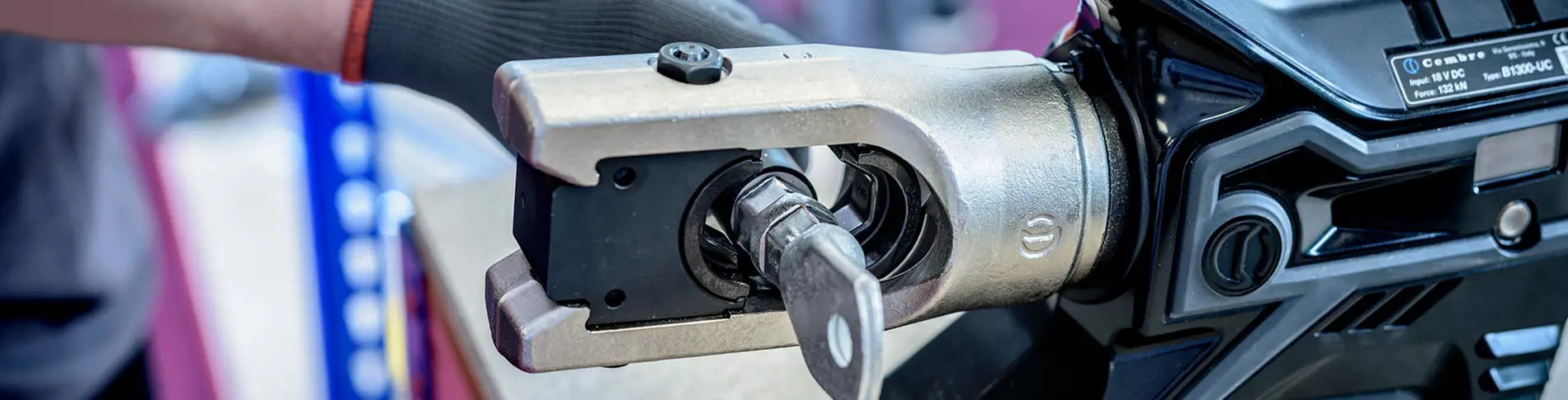

Our cable lugs work in conjunction with standard cable crimping tools and come with inspection holes to ensure the conductor has been fully inserted before crimping occurs. Lugs with a bell mouth ensure smooth transition from lug to cable, avoiding problems of chafing where the cable is subjected to vibration.

Our range of cable lugs covers cables with copper and aluminium conductors.

Cable Lugs Portfolio

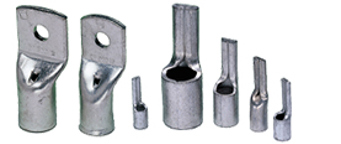

Some of our most widely supplied cable lugs include:

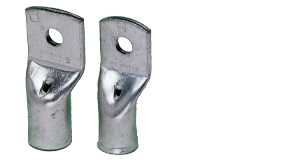

Copper tube terminals	Our standard copper tube terminals are manufactured from seamless copper tube. The internal barrel diameters of these cable lugs suit standard cables as defined in BS EN 60228.

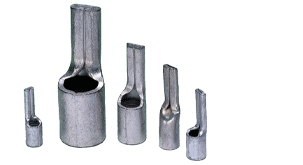

Copper tube pin terminals	Our copper tube pin terminals are designed to terminate conductors into contact blocks. These cable lugs are manufactured from copper strips, rolled, brazed and tin plated.

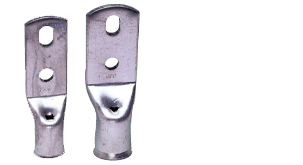

Long palm lugs	Our long palm lugs provide added connectivity through a larger surface area for secure connections to the power source. These lugs are available blank or drilled.

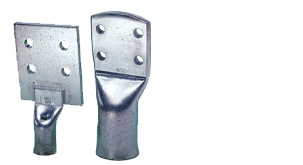

Transformer terminal 4-hole fixing	Our transformer terminal 4-hole fixing, also known as a four-hole crimp lug, connect to the four fixing studs on transformer fixing points to give the best surface contact possible. The FT70 to FT300 are of a brazed palm type. The FT400 to FT1000 are formed from 1 single tube.

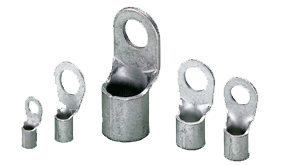

Uninsulated copper brazed sheet terminals	Our uninsulated copper brazed sheet terminals tend to be used when the size of the fixing hole is too large for the specified cable lug.

In addition to the above standard cable lugs, we supply a wide range of specialist cable lugs designed to meet specific applications as well as a range of compatible cable glands, cable cleats and cable management systems. As cable experts, our technical team is ideally suited to advise on the compatibility of the cable lugs to various cable types. We can also provide crimp and lug testing in our Cable Lab to cover compression and mechanical connnectors for power cables at rated voltages of up to 36kV.

Cable Lugs

5 product(s)

Copper Tube Terminals

Copper Tube Pin Terminals

Long Palm Lugs

Transformer Terminals 4 Hole Fixing

Uninsulated Copper Brazed Sheet Terminals

Reset

Product name	Part No	Type	Cable Size	Size	Stud Diameter	Pack Quantity
Copper Tube Terminals	FT6-5	n/a	6	n/a	5	n/a
Copper Tube Terminals	FT6-6	n/a	6	n/a	6	n/a
Copper Tube Terminals	FT6-8	n/a	6	n/a	8	n/a
Copper Tube Terminals	FT10-5	n/a	10	n/a	5	n/a
Copper Tube Terminals	FT10-6	n/a	10	n/a	6	n/a
Copper Tube Terminals	FT10-10	n/a	10	n/a	10	n/a
Copper Tube Terminals	FT16-5	n/a	16	n/a	5	n/a
Copper Tube Terminals	FT16-6	n/a	16	n/a	6	n/a
Copper Tube Terminals	FT16-8	n/a	16	n/a	8	n/a
Copper Tube Terminals	FT16-10	n/a	16	n/a	10	n/a
Copper Tube Terminals	FT16-12	n/a	16	n/a	-	n/a
Copper Tube Terminals	FT25-5	n/a	25	n/a	5	n/a
Copper Tube Terminals	FT25-6	n/a	25	n/a	6	n/a
Copper Tube Terminals	FT25-8	n/a	25	n/a	8	n/a
Copper Tube Terminals	FT25-10	n/a	25	n/a	10	n/a
Copper Tube Terminals	FT25-12	n/a	25	n/a	12	n/a
Copper Tube Terminals	FT35-6	n/a	35	n/a	6	n/a
Copper Tube Terminals	FT35-8	n/a	35	n/a	8	n/a
Copper Tube Terminals	FT35-10	n/a	35	n/a	10	n/a
Copper Tube Terminals	FT35-12	n/a	35	n/a	12	n/a
Copper Tube Terminals	FT35-14	n/a	35	n/a	14	n/a
Copper Tube Terminals	FT50-6	n/a	50	n/a	6	n/a
Copper Tube Terminals	FT50-8	n/a	50	n/a	8	n/a
Copper Tube Terminals	FT50-10	n/a	50	n/a	10	n/a
Copper Tube Terminals	FT50-12	n/a	50	n/a	12	n/a
Copper Tube Terminals	FT50-14	n/a	50	n/a	14	n/a
Copper Tube Terminals	FT50-16	n/a	50	n/a	16	n/a
Copper Tube Terminals	FT70-6	n/a	70	n/a	6	n/a
Copper Tube Terminals	FT70-8	n/a	70	n/a	8	n/a
Copper Tube Terminals	FT70-10	n/a	70	n/a	10	n/a
Copper Tube Terminals	FT70-12	n/a	70	n/a	12	n/a
Copper Tube Terminals	FT70-14	n/a	70	n/a	14	n/a
Copper Tube Terminals	FT70-16	n/a	70	n/a	16	n/a
Copper Tube Terminals	FT95-8	n/a	95	n/a	8	n/a
Copper Tube Terminals	FT95-10	n/a	95	n/a	10	n/a
Copper Tube Terminals	FT95-12	n/a	95	n/a	12	n/a
Copper Tube Terminals	FT95-14	n/a	95	n/a	14	n/a
Copper Tube Terminals	FT95-16	n/a	95	n/a	16	n/a
Copper Tube Terminals	FT120-8	n/a	120	n/a	8	n/a
Copper Tube Terminals	FT120-10	n/a	120	n/a	10	n/a
Copper Tube Terminals	FT120-12	n/a	120	n/a	12	n/a
Copper Tube Terminals	FT120-14	n/a	120	n/a	14	n/a
Copper Tube Terminals	FT120-16	n/a	120	n/a	16	n/a
Copper Tube Terminals	FT120-20	n/a	120	n/a	20	n/a
Copper Tube Terminals	FT150-10	n/a	150	n/a	10	n/a
Copper Tube Terminals	FT150-12	n/a	150	n/a	12	n/a
Copper Tube Terminals	FT150-14	n/a	150	n/a	14	n/a
Copper Tube Terminals	FT150-16	n/a	150	n/a	16	n/a
Copper Tube Terminals	FT150-20	n/a	150	n/a	20	n/a
Copper Tube Terminals	FT185-10	n/a	185	n/a	10	n/a
Copper Tube Terminals	FT185-12	n/a	185	n/a	12	n/a
Copper Tube Terminals	FT185-14	n/a	185	n/a	14	n/a
Copper Tube Terminals	FT185-16	n/a	185	n/a	16	n/a
Copper Tube Terminals	FT185-20	n/a	185	n/a	20	n/a
Copper Tube Terminals	FT240-10	n/a	240	n/a	10	n/a
Copper Tube Terminals	FT240-12	n/a	240	n/a	12	n/a
Copper Tube Terminals	FT240-14	n/a	240	n/a	14	n/a
Copper Tube Terminals	FT240-16	n/a	240	n/a	16	n/a
Copper Tube Terminals	FT240-20	n/a	240	n/a	20	n/a
Copper Tube Terminals	FT300-10	n/a	300	n/a	10	n/a
Copper Tube Terminals	FT300-12	n/a	300	n/a	12	n/a
Copper Tube Terminals	FT300-14	n/a	300	n/a	14	n/a
Copper Tube Terminals	FT300-16	n/a	300	n/a	16	n/a
Copper Tube Terminals	FT300-20	n/a	300	n/a	20	n/a
Copper Tube Terminals	FT400-12	n/a	400	n/a	12	n/a
Copper Tube Terminals	FT400-14	n/a	400	n/a	14	n/a
Copper Tube Terminals	FT400-16	n/a	400	n/a	16	n/a
Copper Tube Terminals	FT400-20	n/a	400	n/a	20	n/a
Copper Tube Terminals	FT500-14	n/a	500	n/a	14	n/a
Copper Tube Terminals	FT500-16	n/a	500	n/a	16	n/a
Copper Tube Terminals	FT500-20	n/a	500	n/a	20	n/a
Copper Tube Pin Terminals	FTP15	n/a	1.5	n/a	n/a	100
Copper Tube Pin Terminals	FTP025	n/a	2.5	n/a	n/a	100
Copper Tube Pin Terminals	FTP6	n/a	6	n/a	n/a	100
Copper Tube Pin Terminals	FTP10	n/a	10	n/a	n/a	100
Copper Tube Pin Terminals	FTP16	n/a	16	n/a	n/a	100
Copper Tube Pin Terminals	FTP25	n/a	25	n/a	n/a	100
Copper Tube Pin Terminals	FTP35	n/a	35	n/a	n/a	100
Copper Tube Pin Terminals	FTP50	n/a	50	n/a	n/a	100
Copper Tube Pin Terminals	FTP70	n/a	70	n/a	n/a	50
Copper Tube Pin Terminals	FTP95	n/a	95	n/a	n/a	50
Long Palm Lugs	FT10/LP	n/a	10	n/a	n/a	n/a
Long Palm Lugs	FT16/LP	n/a	16	n/a	n/a	n/a
Long Palm Lugs	FT25/LP	n/a	25	n/a	n/a	n/a
Long Palm Lugs	FT35/LP	n/a	35	n/a	n/a	n/a
Long Palm Lugs	FT50/LP	n/a	50	n/a	n/a	n/a
Long Palm Lugs	FT70/LP	n/a	70	n/a	n/a	n/a
Long Palm Lugs	FT95/LP	n/a	95	n/a	n/a	n/a
Long Palm Lugs	FT120/LP	n/a	120	n/a	n/a	n/a
Long Palm Lugs	FT150/LP	n/a	150	n/a	n/a	n/a
Long Palm Lugs	FT185/LP	n/a	185	n/a	n/a	n/a
Long Palm Lugs	FT240/LP	n/a	240	n/a	n/a	n/a
Long Palm Lugs	FT300/LP	n/a	300	n/a	n/a	n/a
Long Palm Lugs	FT400/LP	n/a	400	n/a	n/a	n/a
Long Palm Lugs	FT500/LP	n/a	500	n/a	n/a	n/a
Long Palm Lugs	FT630/LP	n/a	630	n/a	n/a	n/a
Long Palm Lugs	FT800/LP	n/a	800	n/a	n/a	n/a
Transformer Terminals 4 Hole Fixing	FT70-8	Brazed	n/a	15	n/a	n/a
Transformer Terminals 4 Hole Fixing	FT95-8	Brazed	n/a	17	n/a	n/a
Transformer Terminals 4 Hole Fixing	FT120-8	Brazed	n/a	19	n/a	n/a
Transformer Terminals 4 Hole Fixing	FT150-8	Brazed	n/a	21	n/a	n/a
Transformer Terminals 4 Hole Fixing	FT185-8	Brazed	n/a	23	n/a	n/a
Transformer Terminals 4 Hole Fixing	FT240-8	Brazed	n/a	26	n/a	n/a
Transformer Terminals 4 Hole Fixing	FT300-8	Brazed	n/a	28	n/a	n/a
Transformer Terminals 4 Hole Fixing	FT400-8	Formed	n/a	36	n/a	n/a
Transformer Terminals 4 Hole Fixing	FT500-8	Formed	n/a	38	n/a	n/a
Transformer Terminals 4 Hole Fixing	FT630-8	Formed	n/a	44	n/a	n/a
Transformer Terminals 4 Hole Fixing	FT800-8	Formed	n/a	49	n/a	n/a
Transformer Terminals 4 Hole Fixing	FT1000-8	Formed	n/a	53	n/a	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY1M27D	n/a	0.5 - 1.5	n/a	2.4	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY1M32D	n/a	0.5 - 1.5	n/a	3	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY1M37D	n/a	0.5 - 1.5	n/a	3.5	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY1M43D	n/a	0.5 - 1.5	n/a	4	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY1M53D	n/a	0.5 - 1.5	n/a	5	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY1M65D	n/a	0.5 - 1.5	n/a	6	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY25M32D	n/a	1.5 - 2.5	n/a	3	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY25M37D	n/a	1.5 - 2.5	n/a	3.5	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY25M43D	n/a	1.5 - 2.5	n/a	4	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY25M53D	n/a	1.5 - 2.5	n/a	5	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY25M65D	n/a	1.5 - 2.5	n/a	6	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY25M84D	n/a	1.5 - 2.5	n/a	8	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY6M43D	n/a	4.0 - 6.0	n/a	4	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY6M53D	n/a	4.0 - 6.0	n/a	5	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY6M65D	n/a	4.0 - 6.0	n/a	6	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY6M84D	n/a	4.0 - 6.0	n/a	8	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY6M105D	n/a	4.0 - 6.0	n/a	10	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY4-10	n/a	10	n/a	4	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY5-10	n/a	10	n/a	5	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY6-10	n/a	10	n/a	6	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY8-10	n/a	10	n/a	8	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY10-10	n/a	10	n/a	10	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY12-10	n/a	10	n/a	12	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY5-16	n/a	16	n/a	5	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY6-16	n/a	16	n/a	6	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY8-16	n/a	16	n/a	8	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY10-16	n/a	16	n/a	10	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY12-16	n/a	16	n/a	12	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY5-25	n/a	25	n/a	5	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY6-25	n/a	25	n/a	6	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY8-25	n/a	25	n/a	8	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY10-25	n/a	25	n/a	10	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY12-25	n/a	25	n/a	12	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY14-25	n/a	25	n/a	14	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY16-25	n/a	25	n/a	16	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY6-35	n/a	35	n/a	6	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY8-35	n/a	35	n/a	8	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY10-35	n/a	35	n/a	10	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY12-35	n/a	35	n/a	12	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY14-35	n/a	35	n/a	14	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY16-35	n/a	35	n/a	16	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY6-50	n/a	50	n/a	6	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY8-50	n/a	50	n/a	8	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY10-50	n/a	50	n/a	10	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY12-50	n/a	50	n/a	12	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY14-50	n/a	50	n/a	14	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY16-50	n/a	50	n/a	16	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY8-70	n/a	70	n/a	8	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY10-70	n/a	70	n/a	10	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY12-70	n/a	70	n/a	12	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY14-70	n/a	70	n/a	14	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY16-70	n/a	70	n/a	16	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY10-95	n/a	95	n/a	10	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY12-95	n/a	95	n/a	12	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY14-95	n/a	95	n/a	14	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY16-95	n/a	95	n/a	16	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY10-120	n/a	120	n/a	10	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY12-120	n/a	120	n/a	12	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY14-120	n/a	120	n/a	14	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY16-120	n/a	120	n/a	16	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY10-150	n/a	150	n/a	10	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY12-150	n/a	150	n/a	12	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY14-150	n/a	150	n/a	14	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY16-150	n/a	150	n/a	16	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY12-185	n/a	185	n/a	12	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY14-185	n/a	185	n/a	14	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY16-185	n/a	185	n/a	16	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY12-240	n/a	240	n/a	12	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY14-240	n/a	240	n/a	14	n/a
Uninsulated Copper Brazed Sheet Terminals	FBY16-240	n/a	240	n/a	16	n/a
