YHKXS & YHAKXS Cables

Key Features: YHKXS & YHAKXS Cable

Application: Medium voltage Polish power cables for power distribution networks and generation units.
Suitability: Internal and External installations including use in transformer stations, switching blocks and power plants. Can be buried directly in the ground or in cable ducts.
Standard / Voltage Rating: IEC 60502-2, generally to HD620-10R. 6/10kV, 8.7/15kV, 12/20kV and 18/30kV. Flame retardant to IEC/EN 60332-1.
Construction: Class 2 Stranded Copper or Aluminium conductor, Cross-Linked Polyethylene (XLPE) insulation, Copper wire screen, and outer sheath of Polyvinyl Chloride (PVC).
Details: Polish cable naming. UV resistant. CPR compliant. Full technical support and datasheets provided.

Eland Cables is a leading global supplier of power, instrumentation and data cables for critical infrastructure and electrification. Our complete cable solutions are underpinned by technical expertise and our Cable Lab^®, ensures rigorous compliance. Contact our team to discuss your requirements.

Jump To:

What are YHKXS & YHAKXS Cables?
Understanding Polish Cable References
YHKXS & YHAKXS Cable Applications
YHKXS / YHAKXS Cable Voltages
Technical Support for YHAKXS and YHKXS Cables
Datasheets

These PVC-sheathed Medium Voltage cables are manufactured to IEC 60502-2 and generally to HD620-10R for use in Poland in power distribution networks.

They are used in primary power networks and for the connection of heavy-duty equipment including transformers and switching blocks.

The cables use the Polish naming convention but are the same construction as the German N2XSY & NA2XSY and Austrian E-2XHCY & E-A2XHCY cables.

The table below references the letters and numbers as they relate to the constructional elements and materials used. Please note that under HD620 10R the only option for insulation material is XLPE (Cross-linked Polyethylene) so there is no separate designation for this element.

X	PE sheath
Xn	Flame retardant PE sheath
Y	PVC sheath
R	Transversal watertightness
U	Longitudinal watertightness
H	Radial Field
-	Copper Conductor (no symbol)
A	Aluminium Conductor
K	Cable according to this section
XS	XLPE insulation
1	Type 1 according to Clause 2 No.3.2 (nominal thickness)
2	Type 2 according to Clause 2 No.3.2 (reduced thickness)
Number of cores x nominal cross sectional area of the conductor in mm2 / nominal cross sectional area of screen
then indications of form and type of conductor
R	Circular conductor
MC	Stranded compacted conductor
E	Solid conductor
Rated voltage U in kV

Sheathing in PVC, these cables are suitable for external installation, both buried directly in the ground or in buried cable ducts, as well as being suitable for internal installation on tray or ladder.

The Class 2 stranded Copper conductors make for a heavier cable than the Aluminium YHAKXS equivalent, but the increased current carrying capacity makes for smaller overall diameter cable so they are often preferred for internal use.

As is consistent with HD620-10R, the insulation material is XLPE (cross-linked Polyethylene), which supports a +90oC maximum operating temperature. The Copper Wire screen supports electromagnetic protection, preventing interference with adjacent cable installations.

The cable is CPR-Compliant providing flame retardant properties to IEC 60332-1-2. It is also UV stable and UV resistant.

These XLPE/CWS/PVC cables are available in the following voltages:

6/10 (12)kV – Test Voltage 21kV
8.7/15 (17.5)kV – Test Voltage 30.45kV
12/20 (24)kV – Test Voltage 42kV
18/30 (36)kV – Test Voltage 63kV

Our technical team alongside Polish language specialists are available to support any enquiry relating to the specification of YHKXS cables and YHAKXS cables.

The cable datasheets attached provide technical data relating to dimensions and electrical characteristics. All enquiries are responded to promptly, with short manufacturing lead times for extended requirements.

Speak to a member of the team to learn more.

More information

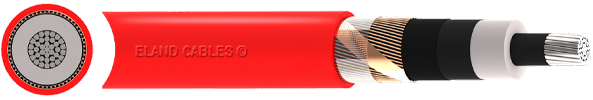

Construction Table

	YHKXS Cable	YHAKXS Cable
CONDUCTOR	Class 2 Stranded copper conductor	Class 2 stranded aluminium conductor
CONDUCTOR SCREEN	Semi-conductive material (Bonded Type)	Semi-conductive material
INSULATION	XLPE (Cross-Linked Polyethylene)
INSULATION SCREEN	Semi-conductive material (Strippable Type)	Semi-conductive material
SCREEN	Copper wires with Open Helix Copper Tape Screen	Copper wires
OUTER SHEATH	PVC (Polyvinyl Chloride)
