E-2XHCY and E-A2XHCY Cables
to E-2XHCY & E-A2XHCY Cable datasheets
Key Features: E-2XHCY and E-A2XHCY Cables
- Application: Austrian reference Medium Voltage power cables.
- Suitability: For primary power distribution networks in internal and external installations, laid directly in ground.
- Standards & Voltage Ratings: IEC 60502-2. Generally to HD 620 10-A. Flame Retardant to IEC/EN 60332-1-2. 6/10kV, 12/20kV, 18/30kV.
- Construction: Class 2 Stranded Copper or Aluminium conductor, Cross-linked Polyethylene (XLPE) insulation, Copper wire and tape screen, Polyvinyl Chloride (PVC) outer sheath.
- Details: Single core configurations (3-core available on request). CPR Compliant. UV resistant. Technical datasheets available to download below.
Eland Cables is a leading global supplier of power, instrumentation and data cables for critical infrastructure and electrification. Our complete cable solutions are underpinned by technical expertise and our Cable Lab®, ensures rigorous compliance. Contact our team to discuss your requirements.
Jump To:
- What are E-2XHCY and E-A2XHCY Cables?
- E-2XHCY Cable & E-A2XHCY Cable Specification
- Voltage Ratings for E-2XHCY and E-A2XHCY Cables
- Austrian nomenclature explained
- Datasheets

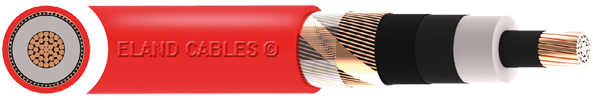

Referenced using the Austrian designation, E-2XHCY and E-A2XHCY Medium Voltage cables are single core XLPE insulated and PVC sheathed. In terms of construction and application, they are the same as the German nomenclature N2XSY and NA2XSY.

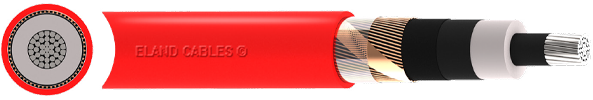

With E-2XHCY Cables having Copper conductors and E-A2XHCY Cables having Aluminium conductors, it provides specifiers with the ability to adapt to the installation environment.
Aluminium E-A2XHCY cables are more suited to installation designs without space constraints, given that to achieve parity in current carrying capacity with the E-2XHCY Copper cable you would need to upsize by 2-3 core sizes. However, whilst larger in size, Aluminium is significantly lighter in weight, which may also be a factor to support specification.
The PVC outer sheathing is suitable for internal and external installations, and is CPR Compliant. It is flame retardant and UV resistant. Consideration in specification should be given where the cables are installed in buildings designated 'high risk' as it may be appropriate to consider LSZH sheathing materials to improve performance in the event of a fire.
Manufactured in accordance with IEC 60502-2 and HD 620 10-A, these cables are available in voltages of:
6/10 (12)kV – Test Voltage 21kV
8.7/15 (17.5)kV – Test Voltage 30.45kV
12/20 (24)kV – Test Voltage 42kV
18/30 (36)kV – Test Voltage 63kV
The available cross-sectional sizes in line with these standards. Full details of dimensions and electrical characteristics are contained within the technical datasheets below.
E-2XHCY and E-A2XHCY Cables use Austrian nomenclature as explained in the table below. There is no specific letter / number denoting Copper conductors - this is assumed as the default for Energy Cables. It is only the specific indication of it being an Aluminium conductor that denotes an alternative to Copper.
| E | Energy Cable |
| A in second position | Aluminium Conductor |
| 2X | XLPE insulation |
| H | Metallic screen |
| J | Longitudinal water tightness |
| C | Radial and Longitudinal water tightness |
| CE | Individually screened cores (three-core variant) |
| A (after designation J) | Radial water tightness (Aluminium) |
| C (after designation J) | Radial water tightness (Copper) |
| Y | Polyvinyl Chloride |
| 2Y | Polyethylene (PE) Outer Sheath |
| H | Low Smoke Zero Halogen |
