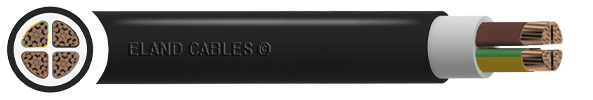

NY2Y Cable

to NY2Y Cable datasheet

The NY2Y-J cables (with green/yellow core) and NY2Y-O cables (without G/Y) are Polyethylene sheathed copper cables for low voltage power distribution with a voltage rating of 0.6/1kV.

NY2Y Cable Specification

Commonly used across Europe in local mains connections as well as in industrial grid connections including switchgear, they are available in a wide range of core configurations and core sizes as standard. Designed for fixed installation, the copper conductors are Class 1 solid or Class 2 stranded and in circular or sectoral format depending on cross-sectional area size.

The NY2Y Cable is suitable for installations with a maximum operating temperature of +70oC - a higher operating temperature would require the N2X2Y cable with XLPE insulation instead of PVC.

The polyethylene sheathing provides enhanced resistance to water, oils and chemicals and offers a robust abrasion resistant layer that gives a degree of mechanical protection, but it should be noted that it offers poor fire performance, burning rapidly and emitting thick smoke and halogen gases. The NY2Y can be direct buried or placed in cable ducts, as well as being installed externally (it is UV resistant).

NY2Y Cable Datasheets and Technical Support

Covering the most commonly specified core sizes and configurations, the technical PDF datasheet can be downloaded with dimensions, weights and electrical characteristics supplied. Where additional data or other sizes are required, please speak to the team for more information.

Support with cable sizing and guidance on specifying the NY2Y cable is available from our experts.

In addition to the Cu/PVC/PE NY2Y cable, our portfolio includes PVC (NYY) and LSZH (N2XH) versions and their respective equivalents with aluminium conductors - NAY2Y, NAYY and NA2XH.



FastQuote Logo

Your tailored quote direct to your inbox

Your basket is currently empty

Go back

Construction Table

  N2X2Y Cable CS NY2Y Cable
VOLTAGE

0.6/1kV

CONDUCTOR

Class 1 solid or Class 2 stranded circular or sectorial copper

INSULATION

PVC (Polyvinyl Chloride)

OUTER SHEATH

PE (Polyethylene)

NY2Y Cable

1 product(s)

YOUR CABLE OPTIONS

Use the FastQuote filters to find the exact cable specifications you need.

Need a bespoke solution? Learn more about customised cables.

Reset

Product name Part No Cores Nominal cross-sectional area (mm²) Sheath colour Length (m)
NY2Y CableB3C01050C2BK150mm²Black
NY2Y CableB3C01070C2BK150mm²Black
NY2Y CableB3C01095C2BK195mm²Black
NY2Y CableB3C01120C2BK1120mm²Black
NY2Y CableB3C01150C2BK1150mm²Black
NY2Y CableB3C01185C2BK1185mm²Black
NY2Y CableB3C01240C2BK1240mm²Black
NY2Y CableB3C01300C2BK1300mm²Black
NY2Y CableB3C020060C1BK26mm²Black
NY2Y CableB3C02010C1BK210mm²Black
NY2Y CableB3C02016C1BK216mm²Black
NY2Y CableB3C02025C2BK225mm²Black
NY2Y CableB3C02035C2BK235mm²Black
NY2Y CableB3C030060C1BK36mm²Black
NY2Y CableB3C03010C1BK310mm²Black
NY2Y CableB3C03016C2BK316mm²Black
NY2Y CableB3C0316/10C2BK3+116/10mm²Black
NY2Y CableB3C03025C2BK325mm²Black
NY2Y CableB3C0325/10C2BK3+125/10mm²Black
NY2Y CableB3C03025/16C2BK3+125/16mm²Black
NY2Y CableB3C03035C2BK335mm²Black
NY2Y CableB3C03035/16C2BK3+135/16mm²Black
NY2Y CableB3C0335/25C2BK3+135/25mm²Black
NY2Y CableB3C03050C2BK350mm²Black
NY2Y CableB3C03050/25C2BK3+150/25mm²Black
NY2Y CableB3C0350/35C2BK3+150/35mm²Black
NY2Y CableB3C03070/35C2BK3+170/35mm²Black
NY2Y CableB3C0370/50C2BK3+170/50mm²Black
NY2Y CableB3C03095/50C2BK3+195/50mm²Black
NY2Y CableB3C03120/70C2BK3+1120/70mm²Black
NY2Y CableB3C03150/70C2BK3+1150/70mm²Black
NY2Y CableB3C03185/95C2BK3+1185/95mm²Black
NY2Y CableB3C3240/120C2BK3+1240/120mm²Black
NY2Y CableB3C040060C1BK46mm²Black
NY2Y CableB3C04010C1BK410mm²Black
NY2Y CableB3C04016C2BK416mm²Black
NY2Y CableB3C04025C2BK425mm²Black
NY2Y CableB3C04035C2BK435mm²Black
NY2Y CableB3C04050C2BK450mm²Black
NY2Y CableB3C04070C2BK470mm²Black
NY2Y CableB3C04095C2BK495mm²Black
NY2Y CableB3C04120C2BK4120mm²Black
NY2Y CableB3C04150C2BK4150mm²Black
NY2Y CableB3C04185C2BK4185mm²Black
NY2Y CableB3C04240C2BK4240mm²Black
NY2Y CableB3C050060C1BK56mm²Black
NY2Y CableB3C05010C1BK510mm²Black
NY2Y CableB3C05016C2BK516mm²Black
NY2Y CableB3C05025C2BK525mm²Black
NY2Y CableB3C05035C2BK535mm²Black
NY2Y CableB3C05050C2BK550mm²Black
NY2Y CableB3C05070C2BK570mm²Black
NY2Y CableB3C05095C2BK595mm²Black
