What is a Hydropower Archimedean screw?
It has been used for thousands of years to move water and other materials from a lower elevation to a higher one. As its name suggests, the invention of the screw is attributed to Archimedes of Syracuse (III century BC), although more recent studies suggest similar devices had been in use even earlier, in ancient Egypt and Mesopotamia.
How does the Archimedes screw work?
Essentially a screw inside a tube, the Archimedean screw is operated by placing the bottom in the water or material you wish to transport (typically grain, sand, sewage, or even fish) and rotating the screw. The screw picks up material and moves it to the top of the tube. The screws can be powered by anything – in ancient times they were turned by hand or by cattle power, and in more modern times are powered by electricity.
How does the Archimedes screw generate power?

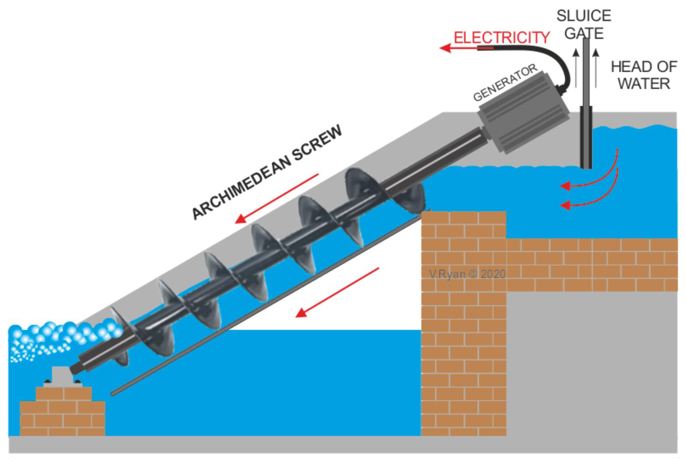

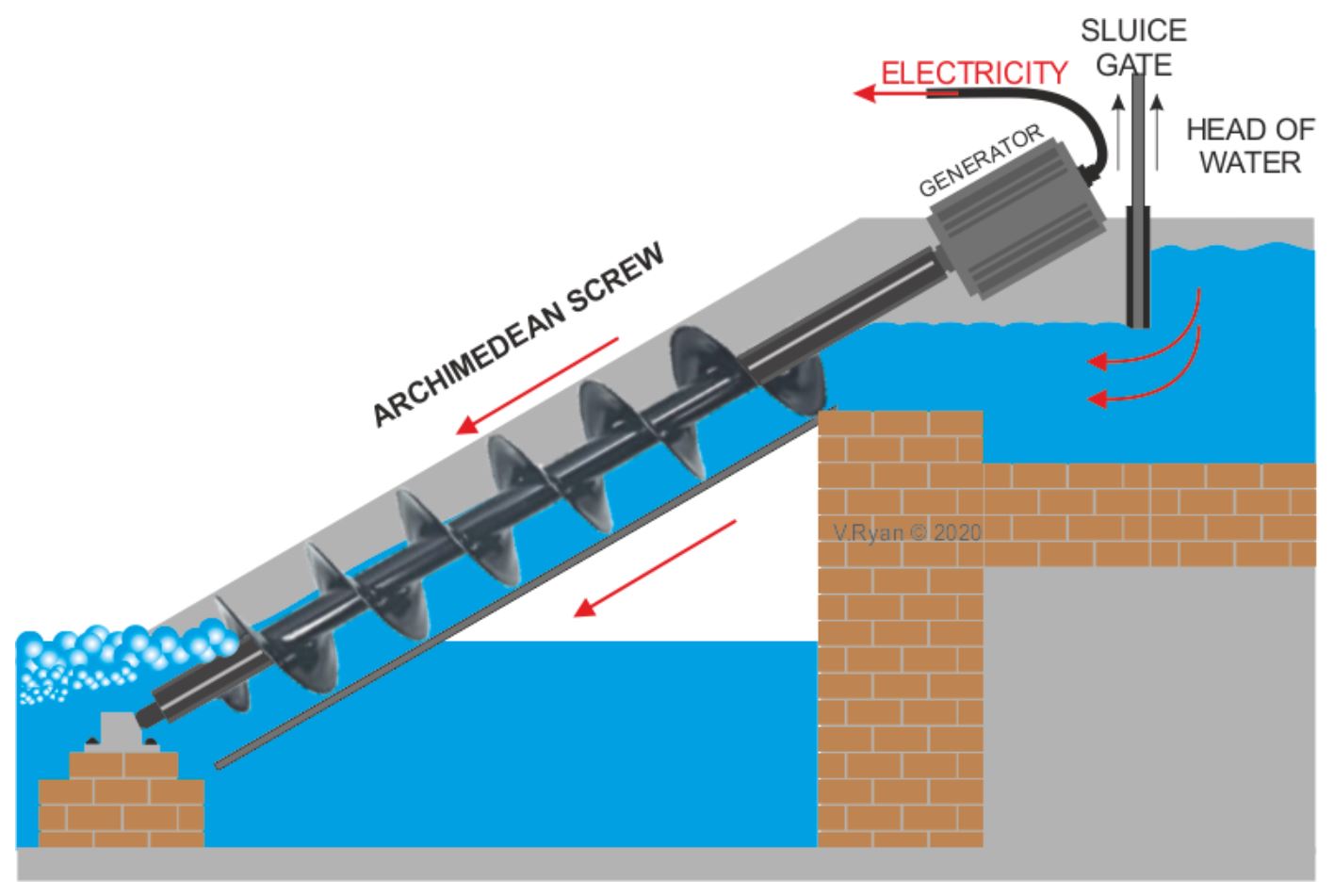

Just as you can use power to move water up the Archimedean screw, you can reverse the process to generate power by moving water down the screw. The water at the top of the screw moves down, rotating the screw as it travels, and that rotation can generate electricity.
This makes Archimedes screws an alternative model for generating hydroelectric power – typically called screw turbines or Archimedean turbines. Though not as popular as traditional hydroelectric installations, Archimedean turbines can operate in rivers with a relatively low flow, and work using a low head (the drop between where the water enters the turbine and where it leaves), making them well suited to smaller installations. They are also widely regarded as friendly to wildlife, as fish can pass through them more safely than through traditional hydroelectric installations.

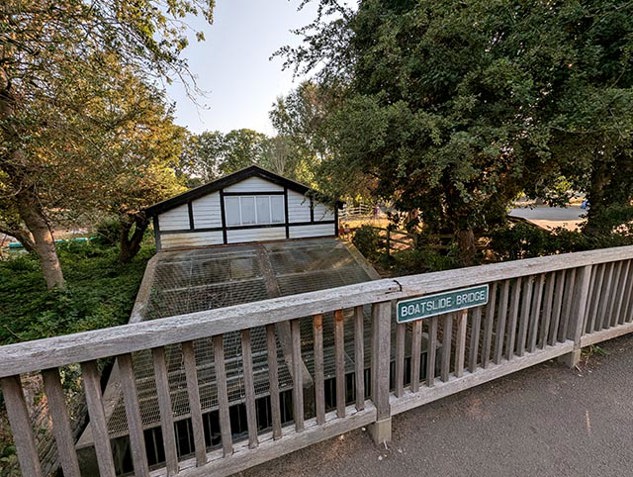

Where can I find an Archimedes screw?
Archimedean turbines are most prevalent in the UK, though both the US and Canada have them, and installations are also popping up in Europe. They can produce power at between 5kW and 500kW, depending on the size of the turbine (or turbines), and the flow of the river the turbine is installed on.
All turbines, of course, are connected to power networks via cables designed to handle the flow and current generated by the turbine. Most Archimedean turbines are connected to local power sources (such as the turbine in Romney, which provides power to Windsor Castle), though some are also connected into the National Grid. As Archimedean turbines are water-powered, the cables used to transfer power from the turbine to its source also need to be water resistant.
