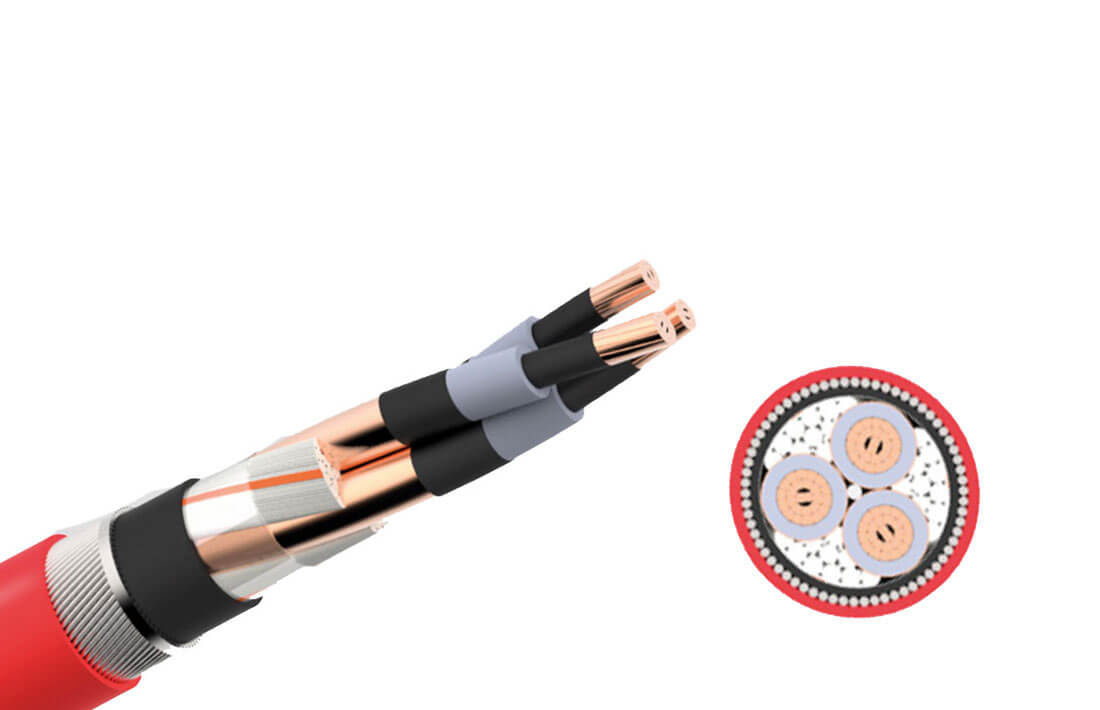

XHIRV, XHI1RV, LXHIRV & LXHI1RV Cables
These Armoured Copper and Aluminium conductor medium voltage cables are referred to by the Portuguese naming convention. Manufactured in accordance with IEC 60502-2, they are provided in voltages from 3.6/6kV through to 18/30kV as standard.
XHIRV cables are Copper SWA 3 core variants, with XHI1RV being the single core AWA cable sizes. Similarly, LXHIRV and LXHI1RV are Aluminium equivalents. All cables also have a copper wire screen. The steel and aluminium wire armouring provides excellent mechanical protection, allowing installations environments including direct burial. The PVC sheathing offers a flame retardant outer layer, making it more suited to installations terminating internally than the XHIRE / LXHIRE PE sheathed cables.
As with all medium voltage cables, our technical experts can provide extensive project support around specification, compatible accessories, and installation environment suitability. Coupled with that, we provide Portuguese language support should that make discussing this specific range of cables more straightforward. Please contact the team who will be happy to assist you.
Construction Table
XHIRV Cables
|
XHI1RV Cable
|
LXHI1RV Cable
|
LXHIRV Cable
|
|
|---|---|---|---|---|
| VOLTAGE | 3.6/6kV to 18/30kV | |||
| CONDUCTOR | Class 2 stranded Copper | Class 2 stranded Aluminium | ||
| INSULATION | XLPE (Cross-linked Polyethylene) | |||
| SCREEN | Copper Tape | |||
| INNER SHEATH | PVC (Polyvinyl Chloride) | |||
| ARMOUR | SWA (Galvanised Steel Wires) | AWA (Aluminium Wires) | SWA (Galvanised Steel Wires) | |
| OUTER SHEATH | PVC (Polyvinyl Chloride) | |||
XHIRV, XHI1RV, LXHIRV & LXHI1RV Cables
4 product(s)
YOUR CABLE OPTIONS
Use the FastQuote filters to find the exact cable specifications you need.
Need a bespoke solution? Learn more about customised cables.
| Product name | Part No | Cores | Nominal cross-sectional area (mm²) | Voltage Rating | Sheath colour | Length (m) | |
|---|---|---|---|---|---|---|---|
| XHIRV Cables | MP5506K03025 | 3 | 25 | 6kV | Black | ||
| XHIRV Cables | MP5515K03025 | 3 | 25 | 15kV | Black | ||
| XHIRV Cables | MP5510K03025 | 3 | 25 | 10kV | Black | ||
| XHIRV Cables | MP5506K03035 | 3 | 35 | 6kV | Black | ||
| XHIRV Cables | MP5515K03035 | 3 | 35 | 15kV | Black | ||
| XHIRV Cables | MP5510K03035 | 3 | 35 | 10kV | Black | ||
| XHIRV Cables | MP5520K03035 | 3 | 35 | 20kV | Black | ||
| XHIRV Cables | MP5506K03050 | 3 | 50 | 6kV | Black | ||
| XHIRV Cables | MP5530K03050 | 3 | 50 | 30kV | Black | ||
| XHIRV Cables | MP5515K03050 | 3 | 50 | 15kV | Black | ||
| XHIRV Cables | MP5510K03050 | 3 | 50 | 10kV | Black | ||
| XHIRV Cables | MP5520K03050 | 3 | 50 | 20kV | Black | ||
| XHIRV Cables | MP5506K03070 | 3 | 70 | 6kV | Black | ||
| XHIRV Cables | MP5530K03070 | 3 | 70 | 30kV | Black | ||
| XHIRV Cables | MP5515K03070 | 3 | 70 | 15kV | Black | ||
| XHIRV Cables | MP5510K03070 | 3 | 70 | 10kV | Black | ||
| XHIRV Cables | MP5520K03070 | 3 | 70 | 20kV | Black | ||
| XHIRV Cables | MP5506K03095 | 3 | 95 | 6kV | Black | ||
| XHIRV Cables | MP5530K03095 | 3 | 95 | 30kV | Black | ||
| XHIRV Cables | MP5515K03095 | 3 | 95 | 15kV | Black | ||
| XHIRV Cables | MP5510K03095 | 3 | 95 | 10kV | Black | ||
| XHIRV Cables | MP5520K03095 | 3 | 95 | 20kV | Black | ||
| XHIRV Cables | MP5506K03120 | 3 | 120 | 6kV | Black | ||
| XHIRV Cables | MP5530K03120 | 3 | 120 | 30kV | Black | ||
| XHIRV Cables | MP5515K03120 | 3 | 120 | 15kV | Black | ||
| XHIRV Cables | MP5510K03120 | 3 | 120 | 10kV | Black | ||
| XHIRV Cables | MP5520K03120 | 3 | 120 | 20kV | Black | ||
| XHIRV Cables | MP5506K03150 | 3 | 150 | 6kV | Black | ||
| XHIRV Cables | MP5515K03150 | 3 | 150 | 15kV | Black | ||
| XHIRV Cables | MP5510K03150 | 3 | 150 | 10kV | Black | ||
| XHIRV Cables | MP5520K03150 | 3 | 150 | 20kV | Black | ||
| XHIRV Cables | MP5506K03185 | 3 | 185 | 6kV | Black | ||
| XHIRV Cables | MP5515K03185 | 3 | 185 | 15kV | Black | ||
| XHIRV Cables | MP5510K03185 | 3 | 185 | 10kV | Black | ||
| XHIRV Cables | MP5520K03185 | 3 | 185 | 20kV | Black | ||
| XHIRV Cables | MP5506K03240 | 3 | 240 | 6kV | Black | ||
| XHIRV Cables | MP5515K03240 | 3 | 240 | 15kV | Black | ||
| XHIRV Cables | MP5510K03240 | 3 | 240 | 10kV | Black | ||
| XHIRV Cables | MP5506K03300 | 3 | 300 | 6kV | Black | ||
| XHIRV Cables | MP5510K03300 | 3 | 300 | 10kV | Black | ||
| XHI1RV Cable | MP2515K01025 | 1 | 25 | 15kV | Black | ||
| XHI1RV Cable | MP2510K01025 | 1 | 25 | 10kV | Black | ||
| XHI1RV Cable | MP2506KV01025 | 1 | 25 | 6kV | Black | ||
| XHI1RV Cable | MP2520K01035 | 1 | 35 | 20kV | Black | ||
| XHI1RV Cable | MP2515K01035 | 1 | 35 | 15kV | Black | ||
| XHI1RV Cable | MP2510K01035 | 1 | 35 | 10kV | Black | ||
| XHI1RV Cable | MP2506K01035 | 1 | 35 | 6kV | Black | ||
| XHI1RV Cable | MP2520K01050 | 1 | 50 | 20kV | Black | ||
| XHI1RV Cable | MP2515K01050 | 1 | 50 | 15kV | Black | ||
| XHI1RV Cable | MP2510K01050 | 1 | 50 | 10kV | Black | ||
| XHI1RV Cable | MP2506K01050 | 1 | 50 | 6kV | Black | ||
| XHI1RV Cable | MP2530K01050 | 1 | 50 | 30kV | Black | ||
| XHI1RV Cable | MP2520K01070 | 1 | 70 | 20kV | Black | ||
| XHI1RV Cable | MP2515K01070 | 1 | 70 | 15kV | Black | ||
| XHI1RV Cable | MP2510K01070 | 1 | 70 | 10kV | Black | ||
| XHI1RV Cable | MP2506K01070 | 1 | 70 | 6kV | Black | ||
| XHI1RV Cable | MP2530K01070 | 1 | 70 | 30kV | Black | ||
| XHI1RV Cable | MP2520K01095 | 1 | 95 | 20kV | Black | ||
| XHI1RV Cable | MP2515K01095 | 1 | 95 | 15kV | Black | ||
| XHI1RV Cable | MP2510K01095 | 1 | 95 | 10kV | Black | ||
| XHI1RV Cable | MP2506K01095 | 1 | 95 | 6kV | Black | ||
| XHI1RV Cable | MP2530K01095 | 1 | 95 | 30kV | Black | ||
| XHI1RV Cable | MP2520K01120 | 1 | 120 | 20kV | Black | ||
| XHI1RV Cable | MP2515K01120 | 1 | 120 | 15kV | Black | ||
| XHI1RV Cable | MP2510K01120 | 1 | 120 | 10kV | Black | ||
| XHI1RV Cable | MP2506K01120 | 1 | 120 | 6kV | Black | ||
| XHI1RV Cable | MP2530K01120 | 1 | 120 | 30kV | Black | ||
| XHI1RV Cable | MP2520K01150 | 1 | 150 | 20kV | Black | ||
| XHI1RV Cable | MP2515K01150 | 1 | 150 | 15kV | Black | ||
| XHI1RV Cable | MP2510K01150 | 1 | 150 | 10kV | Black | ||
| XHI1RV Cable | MP2506K01150 | 1 | 150 | 6kV | Black | ||
| XHI1RV Cable | MP2530K01150 | 1 | 150 | 30kV | Black | ||
| XHI1RV Cable | MP2520K01185 | 1 | 185 | 20kV | Black | ||
| XHI1RV Cable | MP2515K01185 | 1 | 185 | 15kV | Black | ||
| XHI1RV Cable | MP2510K01185 | 1 | 185 | 10kV | Black | ||
| XHI1RV Cable | MP2506K01185 | 1 | 185 | 6kV | Black | ||
| XHI1RV Cable | MP2530K01185 | 1 | 185 | 30kV | Black | ||
| XHI1RV Cable | MP2520K01240 | 1 | 240 | 20kV | Black | ||
| XHI1RV Cable | MP2515K01240 | 1 | 240 | 15kV | Black | ||
| XHI1RV Cable | MP2510K01240 | 1 | 240 | 10kV | Black | ||
| XHI1RV Cable | MP2506K01240 | 1 | 240 | 6kV | Black | ||
| XHI1RV Cable | MP2530K01240 | 1 | 240 | 30kV | Black | ||
| XHI1RV Cable | MP2520K01300 | 1 | 300 | 20kV | Black | ||
| XHI1RV Cable | MP2515K01300 | 1 | 300 | 15kV | Black | ||
| XHI1RV Cable | MP2510K01300 | 1 | 300 | 10kV | Black | ||
| XHI1RV Cable | MP2506K01300 | 1 | 300 | 6kV | Black | ||
| XHI1RV Cable | MP2530K01300 | 1 | 300 | 30kV | Black | ||
| XHI1RV Cable | MP2520K01400 | 1 | 400 | 20kV | Black | ||
| XHI1RV Cable | MP2515K01400 | 1 | 400 | 15kV | Black | ||
| XHI1RV Cable | MP2510K01400 | 1 | 400 | 10kV | Black | ||
| XHI1RV Cable | MP2506K01400 | 1 | 400 | 6kV | Black | ||
| XHI1RV Cable | MP2530K01400 | 1 | 400 | 30kV | Black | ||
| XHI1RV Cable | MP2520K01500 | 1 | 500 | 20kV | Black | ||
| XHI1RV Cable | MP2515K01500 | 1 | 500 | 15kV | Black | ||
| XHI1RV Cable | MP2510K01500 | 1 | 500 | 10kV | Black | ||
| XHI1RV Cable | MP2506K01500 | 1 | 500 | 6kV | Black | ||
| XHI1RV Cable | MP2530K01500 | 1 | 500 | 30kV | Black | ||
| XHI1RV Cable | MP2520K01630 | 1 | 630 | 20kV | Black | ||
| XHI1RV Cable | MP2515K01630 | 1 | 630 | 15kV | Black | ||
| XHI1RV Cable | MP2510K01630 | 1 | 630 | 10kV | Black | ||
| XHI1RV Cable | MP2506K01630 | 1 | 630 | 6kV | Black | ||
| XHI1RV Cable | MP2530K01630 | 1 | 630 | 30kV | Black | ||
| LXHI1RV Cable | MP2915K01025 | 1 | 25 | 15kV | Black | ||
| LXHI1RV Cable | MP2910K01025 | 1 | 25 | 10kV | Black | ||
| LXHI1RV Cable | MP2906KV01025 | 1 | 25 | 6kV | Black | ||
| LXHI1RV Cable | MP2920K01035 | 1 | 35 | 20kV | Black | ||
| LXHI1RV Cable | MP2915K01035 | 1 | 35 | 15kV | Black | ||
| LXHI1RV Cable | MP2910K01035 | 1 | 35 | 10kV | Black | ||
| LXHI1RV Cable | MP2906K01035 | 1 | 35 | 6kV | Black | ||
| LXHI1RV Cable | MP2920K01050 | 1 | 50 | 20kV | Black | ||
| LXHI1RV Cable | MP2915K01050 | 1 | 50 | 15kV | Black | ||
| LXHI1RV Cable | MP2910K01050 | 1 | 50 | 10kV | Black | ||
| LXHI1RV Cable | MP2906K01050 | 1 | 50 | 6kV | Black | ||
| LXHI1RV Cable | MP2930K01050 | 1 | 50 | 30kV | Black | ||
| LXHI1RV Cable | MP2920K01070 | 1 | 70 | 20kV | Black | ||
| LXHI1RV Cable | MP2915K01070 | 1 | 70 | 15kV | Black | ||
| LXHI1RV Cable | MP2910K01070 | 1 | 70 | 10kV | Black | ||
| LXHI1RV Cable | MP2906K01070 | 1 | 70 | 6kV | Black | ||
| LXHI1RV Cable | MP2930K01070 | 1 | 70 | 30kV | Black | ||
| LXHI1RV Cable | MP2920K01095 | 1 | 95 | 20kV | Black | ||
| LXHI1RV Cable | MP2915K01095 | 1 | 95 | 15kV | Black | ||
| LXHI1RV Cable | MP2910K01095 | 1 | 95 | 10kV | Black | ||
| LXHI1RV Cable | MP2906K01095 | 1 | 95 | 6kV | Black | ||
| LXHI1RV Cable | MP2930K01095 | 1 | 95 | 30kV | Black | ||
| LXHI1RV Cable | MP2920K01120 | 1 | 120 | 20kV | Black | ||
| LXHI1RV Cable | MP2915K01120 | 1 | 120 | 15kV | Black | ||
| LXHI1RV Cable | MP2910K01120 | 1 | 120 | 10kV | Black | ||
| LXHI1RV Cable | MP2906K01120 | 1 | 120 | 6kV | Black | ||
| LXHI1RV Cable | MP2930K01120 | 1 | 120 | 30kV | Black | ||
| LXHI1RV Cable | MP2920K01150 | 1 | 150 | 20kV | Black | ||
| LXHI1RV Cable | MP2915K01150 | 1 | 150 | 15kV | Black | ||
| LXHI1RV Cable | MP2910K01150 | 1 | 150 | 10kV | Black | ||
| LXHI1RV Cable | MP2906K01150 | 1 | 150 | 6kV | Black | ||
| LXHI1RV Cable | MP2930K01150 | 1 | 150 | 30kV | Black | ||
| LXHI1RV Cable | MP2920K01185 | 1 | 185 | 20kV | Black | ||
| LXHI1RV Cable | MP2915K01185 | 1 | 185 | 15kV | Black | ||
| LXHI1RV Cable | MP2910K01185 | 1 | 185 | 10kV | Black | ||
| LXHI1RV Cable | MP2906K01185 | 1 | 185 | 6kV | Black | ||
| LXHI1RV Cable | MP2930K01185 | 1 | 185 | 30kV | Black | ||
| LXHI1RV Cable | MP2920K01240 | 1 | 240 | 20kV | Black | ||
| LXHI1RV Cable | MP2915K01240 | 1 | 240 | 15kV | Black | ||
| LXHI1RV Cable | MP2910K01240 | 1 | 240 | 10kV | Black | ||
| LXHI1RV Cable | MP2906K01240 | 1 | 240 | 6kV | Black | ||
| LXHI1RV Cable | MP2930K01240 | 1 | 240 | 30kV | Black | ||
| LXHI1RV Cable | MP2920K01300 | 1 | 300 | 20kV | Black | ||
| LXHI1RV Cable | MP2915K01300 | 1 | 300 | 15kV | Black | ||
| LXHI1RV Cable | MP2910K01300 | 1 | 300 | 10kV | Black | ||
| LXHI1RV Cable | MP2906K01300 | 1 | 300 | 6kV | Black | ||
| LXHI1RV Cable | MP2930K01300 | 1 | 300 | 30kV | Black | ||
| LXHI1RV Cable | MP2920K01400 | 1 | 400 | 20kV | Black | ||
| LXHI1RV Cable | MP2915K01400 | 1 | 400 | 15kV | Black | ||
| LXHI1RV Cable | MP2910K01400 | 1 | 400 | 10kV | Black | ||
| LXHI1RV Cable | MP2906K01400 | 1 | 400 | 6kV | Black | ||
| LXHI1RV Cable | MP2930K01400 | 1 | 400 | 30kV | Black | ||
| LXHI1RV Cable | MP2920K01500 | 1 | 500 | 20kV | Black | ||
| LXHI1RV Cable | MP2915K01500 | 1 | 500 | 15kV | Black | ||
| LXHI1RV Cable | MP2910K01500 | 1 | 500 | 10kV | Black | ||
| LXHI1RV Cable | MP2906K01500 | 1 | 500 | 6kV | Black | ||
| LXHI1RV Cable | MP2930K01500 | 1 | 500 | 30kV | Black | ||
| LXHI1RV Cable | MP2920K01630 | 1 | 630 | 20kV | Black | ||
| LXHI1RV Cable | MP2915K01630 | 1 | 630 | 15kV | Black | ||
| LXHI1RV Cable | MP2910K01630 | 1 | 630 | 10kV | Black | ||
| LXHI1RV Cable | MP2906K01630 | 1 | 630 | 6kV | Black | ||
| LXHI1RV Cable | MP2930K01630 | 1 | 630 | 30kV | Black | ||
| LXHIRV Cable | MP5715K03025 | 3 | 25 | 15kV | Black | ||
| LXHIRV Cable | MP5706K03025 | 3 | 25 | 6kV | Black | ||
| LXHIRV Cable | MP5710K03025 | 3 | 25 | 10kV | Black | ||
| LXHIRV Cable | MP5720K03035 | 3 | 35 | 20kV | Black | ||
| LXHIRV Cable | MP5715K03035 | 3 | 35 | 15kV | Black | ||
| LXHIRV Cable | MP5706K03035 | 3 | 35 | 6kV | Black | ||
| LXHIRV Cable | MP5710K03035 | 3 | 35 | 10kV | Black | ||
| LXHIRV Cable | MP5720K03050 | 3 | 50 | 20kV | Black | ||
| LXHIRV Cable | MP5715K03050 | 3 | 50 | 15kV | Black | ||
| LXHIRV Cable | MP5706K03050 | 3 | 50 | 6kV | Black | ||
| LXHIRV Cable | MP5710K03050 | 3 | 50 | 10kV | Black | ||
| LXHIRV Cable | MP5730K03050 | 3 | 50 | 30kV | Black | ||
| LXHIRV Cable | MP5720K03070 | 3 | 70 | 20kV | Black | ||
| LXHIRV Cable | MP5715K03070 | 3 | 70 | 15kV | Black | ||
| LXHIRV Cable | MP5706K03070 | 3 | 70 | 6kV | Black | ||
| LXHIRV Cable | MP5710K03070 | 3 | 70 | 10kV | Black | ||
| LXHIRV Cable | MP5730K03070 | 3 | 70 | 30kV | Black | ||
| LXHIRV Cable | MP5720K03095 | 3 | 95 | 20kV | Black | ||
| LXHIRV Cable | MP5715K03095 | 3 | 95 | 15kV | Black | ||
| LXHIRV Cable | MP5706K03095 | 3 | 95 | 6kV | Black | ||
| LXHIRV Cable | MP5710K03095 | 3 | 95 | 10kV | Black | ||
| LXHIRV Cable | MP5730K03095 | 3 | 95 | 30kV | Black | ||
| LXHIRV Cable | MP5720K03120 | 3 | 120 | 20kV | Black | ||
| LXHIRV Cable | MP5715K03120 | 3 | 120 | 15kV | Black | ||
| LXHIRV Cable | MP5706K03120 | 3 | 120 | 6kV | Black | ||
| LXHIRV Cable | MP5710K03120 | 3 | 120 | 10kV | Black | ||
| LXHIRV Cable | MP5730K03120 | 3 | 120 | 30kV | Black | ||
| LXHIRV Cable | MP5720K03150 | 3 | 150 | 20kV | Black | ||
| LXHIRV Cable | MP5715K03150 | 3 | 150 | 15kV | Black | ||
| LXHIRV Cable | MP5706K03150 | 3 | 150 | 6kV | Black | ||
| LXHIRV Cable | MP5710K03150 | 3 | 150 | 10kV | Black | ||
| LXHIRV Cable | MP5720K03185 | 3 | 185 | 20kV | Black | ||
| LXHIRV Cable | MP5715K03185 | 3 | 185 | 15kV | Black | ||
| LXHIRV Cable | MP5706K03185 | 3 | 185 | 6kV | Black | ||
| LXHIRV Cable | MP5710K03185 | 3 | 185 | 10kV | Black | ||
| LXHIRV Cable | MP5715K03240 | 3 | 240 | 15kV | Black | ||
| LXHIRV Cable | MP5706K03240 | 3 | 240 | 6kV | Black | ||
| LXHIRV Cable | MP5710K03240 | 3 | 240 | 10kV | Black | ||
| LXHIRV Cable | MP5706K03300 | 3 | 300 | 6kV | Black | ||
| LXHIRV Cable | MP5710K03300 | 3 | 300 | 10kV | Black |
