MV Armoured Cables
XLPE/PVC/SWA/PVC (also AWA & LSZH)
Eland Cables has an extensive portfolio of medium voltage cable including armoured cable manufactured to British Standard BS6622 and BS7835. These MV armoured cables are BASEC approved with single core AWA cable and multicore SWA cable available with both PVC and LSZH sheathing. These XLPE/PVC/AWA/PVC, XLPE/PVC/SWA/PVC, XLPE/LSZH/AWA//LSZH and XLPE/LSZH/SWA/LSZH are all available with a voltage rating of 3.8/6.6kV, 6.35/11kV and 19/33kV.
The armoured power cables are commonly used for the supply of mains electricity both in aerial power networks and in underground systems. These MV SWA cables are suitable for direct burial in free draining soil as the armour protects against mechanical stresses and potential damage. These cables are also suitable for use indoors, in cable ducts, clipped directly onto a surface, on a tray, in a basket or in free air.
SWA cable is often referred to as mains power cable or booklet armoured cable. The 3 core cable is protected by steel wire armour, whilst the single core cable uses aluminium wires (AWA) to prevent induced current in the armour. The outer sheath of these MV armoured cables can be either a low smoke zero halogen compound (LSZH) or a UV-stable PVC material. LSZH armoured cable should be used in applications where the emission of smoke and toxic fumes could create a serious threat to life and sensitive equipment in the event of fire.
XLPE/PVC/AWA/PVC BS6622 cable construction
| British Standard BS6622 | |
|---|---|
| Voltage Rating | 3.8/6.6kV, 6.35/11kV, 19/33kV |
| Conductor | Single core: Copper (Cu) (Class 2), Aluminium (Al) (Class 2) |
| Conductor Screen | Semi-conductive XLPE |
| Insulation | Cross-linked polyethylene (XLPE) |
| Insulation Screen | Semi-conductive XLPE |
| Metallic screen | Cu tape |
| Bedding | Polyvinyl Chloride (PVC) |
| Armour | AWA |
| Sheath | PVC |
This range is available with an MDPE outersheath instead of PVC for greater resistance to abrasion and water, It's construction then becomes XLPE/PVC/AWA/MDPE. For more information on the benefits of MDPE see our FAQ.

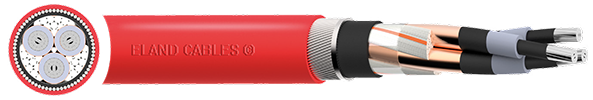

XLPE/PVC/SWA/PVC BS6622 cable construction
| British Standard BS6622 | |
|---|---|
| Voltage Rating | 3.8/6.6kV, 6.35/11kV, 19/33kV |
| Conductor | 3 core: Copper (Cu) (Class 2), Aluminium (Al) (Class 2) |
| Conductor Screen | Semi-conductive XLPE |
| Insulation | Cross-linked polyethylene (XLPE) |
| Insulation Screen | Semi-conductive XLPE |
| Metallic screen | Cu tape |
| Bedding | Polyvinyl Chloride (PVC) |
| Armour | SWA |
| Sheath | PVC |
This range is also available with an MDPE outersheath.
XLPE/LSZH/AWA/LSZH BS7835 cable construction
| British Standard BS7835 | |
|---|---|
| Voltage Rating | 3.8/6.6kV, 6.35/11kV, 19/33kV |
| Conductor | Single core: Copper (Cu) (Class 2), Aluminium (Al) (Class 1) |
| Conductor Screen | Semi-conductive XLPE |
| Insulation | Cross-linked polyethylene (XLPE) |
| Insulation Screen | Semi-conductive XLPE |
| Metallic screen | Cu tape |
| Bedding | LSZH |
| Armour | AWA |
| Sheath | LSZH |
When exposed to fire, the LSZH materials emit very low levels of smoke and non-toxic levels of halogen gas (typically under 0.5% HCl emission)
XLPE/LSZH/SWA/LSZH BS7835 cable construction
| British Standard BS6622 | |
|---|---|
| Voltage Rating | 3.8/6.6kV, 6.35/11kV, 19/33kV |
| Conductor | 3 cores: Copper (Cu) (Class 2), Aluminium (Al) (Class 2) |
| Conductor Screen | Semi-conductive XLPE |
| Insulation | Cross-linked polyethylene (XLPE) |
| Insulation Screen | Semi-conductive XLPE |
| Metallic screen | Cu tape |
| Bedding | LSZH |
| Armour | SWA |
| Sheath | LSZH |
XLPE/SWA & XLPE/AWA - PVC & LSZH cable sizes
The sizes below are the most commonly used medium voltage armoured booklet, non-booklet and mains cables:
| Single core cable | SWA 3 core cable |
|---|---|
| 1 x 50mm2 | 3 x 50mm2 |
| 1 x 70mm2 | 3 x 70mm2 |
| 1 x 95mm2 | 3 x 95mm2 |
| 1 x 120mm2 | 3 x 120mm2 |
| 1 x 150mm2 | 3 x 150mm2 |
| 3 x 185mm2 | |
| 3 x 240mm2 | |
| 3 x 300mm2 |
XLPE/SWA & XLPE/AWA - PVC & LSZH CABLE ACCESSORIES
Our range of armoured cables AWA and SWA cables is complemented by a range of quality cable accessories including SWA glands, terminations, clips and cleats designed and tested to ensure perfect fit with our cables. Please discuss your application and specific requirements with our technical engineers.
Eland Cables also supplies a range of unarmoured medium voltage cables manufactured to international standard IEC 60502 and known according to their cable construction including N2XSY, NA2XSY, N2XSEY, N2XS2Y and NA2XS2Y cables. Many of these cables are also available with additional waterblocking properties, designated by (F) and (FL) which may be required for certain power cable applications.
Range of Cables
BS 6622 XLPE / PVC Medium Voltage 19/33 (36)kV Cable
BS 6622 XLPE MDPE 6.35/11 (12)kV Cable
BS 6622 XLPE PVC 6.35/11 (12)kV Cable
BS7835 XLPE LSZH 6.35/11 (12)kV Cable
BS7835 XLPE LSZH 19/33 (36)kV Cable
Call Sales on +44 (0)20 7241 8787
Click to Email Us We will reply within 3 hours
Technical Hotline +44 (0)20 7241 8500

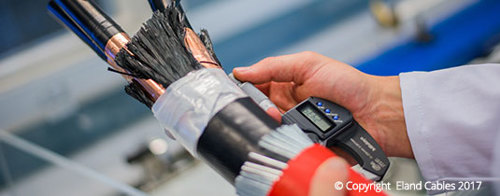

The Cable Lab®
