Drincable 600 and Drincable 800 Cables

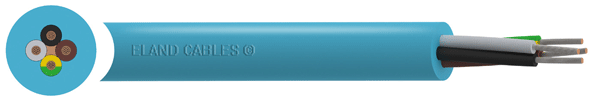

Our WRAS approved 1kV Pump cables, Drincable 600 and Drincable 800, are designed for permanent submersion in potable water, to respective depths of 600 and 800 metres.
Drincable Cable Specification
The Drincable 600 and Drincable 600 pump cables are both is water resistance tested to the European standard EN 505825-2-21 (AD8 condition) and meets the requirements of BS 6920 covering the suitability of non-metallic materials and products for use in contact with water. The EPR (Ethylene Propylene Rubber) insulation and Elastomeric Cross-linked outer sheath provide a robust and water-tight barrier.
This submersible cable, used extensively in the water treatment industry and the food processing industry, has a voltage rating of 0.6/1kV and a temperature rating of -25oc to +90oC. It is suitable for use in water of a maximum temperature of 80oC.

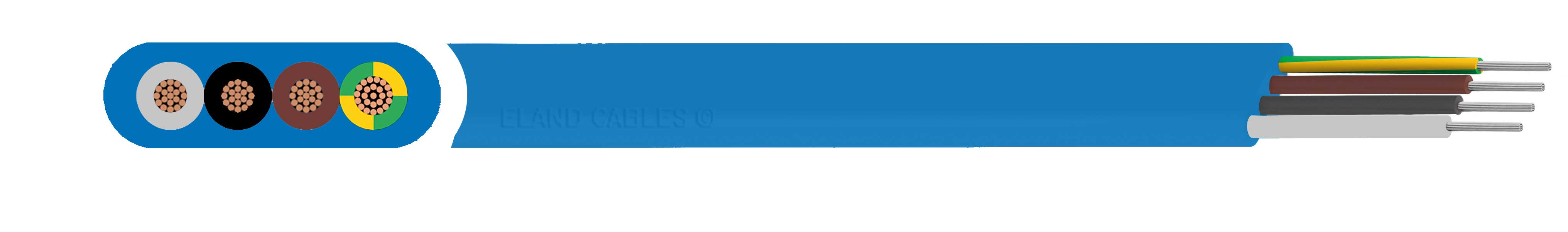

We supply Drincable 600 and Drincable 800 pump cables with a light blue outersheath - this colour blends into the surrounding environment in most cases. The Drincable 800 cable is available as a circular cable whilst the Drincable 600 is also available in a flat configuration upon request.
WRAS Approved Pump Cable
This submersible product holds WRAS approval, demonstrating its compliance with the Water Supply (Water Fittings) Regulations, and making it suitable for use in installations across every UK water supplier. The Drincable cable is tested to assure both performance whilst submerged, and to ensure the cable materials including sheathing do not affect water quality.
The Drincable 600 and Drincable 800 are part of the wider portfolio of submersible cables for use on pumps and underwater motor applications. Cable sizes and electrical data are provided on the attached datasheets, but for additional information or support with cable selection, get in touch with the team.
Construction Table
Drincable 600 Cable
|
Drincable 800 Cable
|
|
|
|---|---|---|---|
| VOLTAGE | 450/750V | 0.6/1kV | 450/750V |
| CONDUCTOR | Class 5 fine stranded tinned Copper | Class 5 fine stranded tinned copper | Class 5 flexible stranded tinned Copper |
| INSULATION | EPR (Ethylene Propylene Rubber) | ||
| OUTER SHEATH | Special XLPE (Cross-linked Polyethylene) compound | Elastomeric Cross-linked compound | Special XLPE (Cross-linked Polyethylene) compound |
Drincable 600 and Drincable 800 Cables
YOUR CABLE OPTIONS
Use the FastQuote filters to find the exact cable specifications you need.
Need a bespoke solution? Learn more about customised cables.
| Product name | Part No | Cores | Nominal cross-sectional area (mm²) | Sheath colour | Length (m) | |
|---|---|---|---|---|---|---|
| Drincable 600 Cable | B6E010015 | 1 | 1.5 | Light Blue | ||
| Drincable 600 Cable | B6E010025 | 1 | 2.5 | Light Blue | ||
| Drincable 600 Cable | B6E010040 | 1 | 4 | Light Blue | ||
| Drincable 600 Cable | B6E010060 | 1 | 6 | Light Blue | ||
| Drincable 600 Cable | B6E01010 | 1 | 10 | Light Blue | ||
| Drincable 600 Cable | B6E01016 | 1 | 16 | Light Blue | ||
| Drincable 600 Cable | B6E01025 | 1 | 25 | Light Blue | ||
| Drincable 600 Cable | B6E01035 | 1 | 35 | Light Blue | ||
| Drincable 600 Cable | B6E01050 | 1 | 50 | Light Blue | ||
| Drincable 600 Cable | B6E01070 | 1 | 70 | Light Blue | ||
| Drincable 600 Cable | B6E01095 | 1 | 95 | Light Blue | ||
| Drincable 600 Cable | B6E01120 | 1 | 120 | Light Blue | ||
| Drincable 600 Cable | B6E01150 | 1 | 150 | Light Blue | ||
| Drincable 600 Cable | B6E01185 | 1 | 185 | Light Blue | ||
| Drincable 600 Cable | B6E01240 | 1 | 240 | Light Blue | ||
| Drincable 600 Cable | B6E01300 | 1 | 300 | Light Blue | ||
| Drincable 600 Cable | B6E020015 | 2 | 1.5 | Light Blue | ||
| Drincable 600 Cable | B6E020025 | 2 | 2.5 | Light Blue | ||
| Drincable 600 Cable | B6E020040 | 2 | 4 | Light Blue | ||
| Drincable 600 Cable | B6E020060 | 2 | 6 | Light Blue | ||
| Drincable 600 Cable | B6E02010 | 2 | 10 | Light Blue | ||
| Drincable 600 Cable | B6E02016 | 2 | 16 | Light Blue | ||
| Drincable 600 Cable | B6E02025 | 2 | 25 | Light Blue | ||
| Drincable 600 Cable | B6E030015 | 3 | 1.5 | Light Blue | ||
| Drincable 600 Cable | B6E030025 | 3 | 2.5 | Light Blue | ||
| Drincable 600 Cable | B6E030040 | 3 | 4 | Light Blue | ||
| Drincable 600 Cable | B6E030060 | 3 | 6 | Light Blue | ||
| Drincable 600 Cable | B6E03010 | 3 | 10 | Light Blue | ||
| Drincable 600 Cable | B6E03016 | 3 | 16 | Light Blue | ||
| Drincable 600 Cable | B6E03025 | 3 | 25 | Light Blue | ||
| Drincable 600 Cable | B6E03035 | 3 | 35 | Light Blue | ||
| Drincable 600 Cable | B6E03050 | 3 | 50 | Light Blue | ||
| Drincable 600 Cable | B6E03070 | 3 | 70 | Light Blue | ||
| Drincable 600 Cable | B6E03095 | 3 | 95 | Light Blue | ||
| Drincable 600 Cable | B6E03120 | 3 | 120 | Light Blue | ||
| Drincable 600 Cable | B6E03150 | 3 | 150 | Light Blue | ||
| Drincable 600 Cable | B6E03185 | 3 | 185 | Light Blue | ||
| Drincable 600 Cable | B6E040015 | 4 | 1.5 | Light Blue | ||
| Drincable 600 Cable | B6E040025 | 4 | 2.5 | Light Blue | ||
| Drincable 600 Cable | B6E040040 | 4 | 4 | Light Blue | ||
| Drincable 600 Cable | B6E040060 | 4 | 6 | Light Blue | ||
| Drincable 600 Cable | B6E04010 | 4 | 10 | Light Blue | ||
| Drincable 600 Cable | B6E04016 | 4 | 16 | Light Blue | ||
| Drincable 600 Cable | B6E04025 | 4 | 25 | Light Blue | ||
| Drincable 600 Cable | B6E04035 | 4 | 35 | Light Blue | ||
| Drincable 600 Cable | B6E04050 | 4 | 50 | Light Blue | ||
| Drincable 600 Cable | B6E04070 | 4 | 70 | Light Blue | ||
| Drincable 600 Cable | B6E04095 | 4 | 95 | Light Blue | ||
| Drincable 600 Cable | B6E04120 | 4 | 120 | Light Blue | ||
| Drincable 600 Cable | B6E04150 | 4 | 150 | Light Blue | ||
| Drincable 600 Cable | B6E04185 | 4 | 185 | Light Blue | ||
| Drincable 800 Cable | A6E10015 | 1 | 1.5 | Light Blue | ||
| Drincable 800 Cable | A6E10025 | 1 | 2.5 | Light Blue | ||
| Drincable 800 Cable | A6E10040 | 1 | 4 | Light Blue | ||
| Drincable 800 Cable | A6E10060 | 1 | 6 | Light Blue | ||
| Drincable 800 Cable | A6E1010 | 1 | 10 | Light Blue | ||
| Drincable 800 Cable | A6E1016 | 1 | 16 | Light Blue | ||
| Drincable 800 Cable | A6E1025 | 1 | 25 | Light Blue | ||
| Drincable 800 Cable | A6E1035 | 1 | 35 | Light Blue | ||
| Drincable 800 Cable | A6E1050 | 1 | 50 | Light Blue | ||
| Drincable 800 Cable | A6E1070 | 1 | 70 | Light Blue | ||
| Drincable 800 Cable | A6E1095 | 1 | 95 | Light Blue | ||
| Drincable 800 Cable | A6E1120 | 1 | 120 | Light Blue | ||
| Drincable 800 Cable | A6E1150 | 1 | 150 | Light Blue | ||
| Drincable 800 Cable | A6E1185 | 1 | 185 | Light Blue | ||
| Drincable 800 Cable | A6E1240 | 1 | 240 | Light Blue | ||
| Drincable 800 Cable | A6E1300 | 1 | 300 | Light Blue | ||
| Drincable 800 Cable | A6E1400 | 1 | 400 | Light Blue | ||
| Drincable 800 Cable | A6E1500 | 1 | 500 | Light Blue | ||
| Drincable 800 Cable | A6E3G0015 | 3G | 1.5 | Light Blue | ||
| Drincable 800 Cable | A6E3G0025 | 3G | 2.5 | Light Blue | ||
| Drincable 800 Cable | A6E3G0040 | 3G | 4 | Light Blue | ||
| Drincable 800 Cable | A6E3G0060 | 3G | 6 | Light Blue | ||
| Drincable 800 Cable | A6E3G010 | 3G | 10 | Light Blue | ||
| Drincable 800 Cable | A6E3G016 | 3G | 16 | Light Blue | ||
| Drincable 800 Cable | A6E3G025 | 3G | 25 | Light Blue | ||
| Drincable 800 Cable | A6E3G035 | 3G | 35 | Light Blue | ||
| Drincable 800 Cable | A6E3G050 | 3G | 50 | Light Blue | ||
| Drincable 800 Cable | A6E3G070 | 3G | 70 | Light Blue | ||
| Drincable 800 Cable | A6E3G095 | 3G | 95 | Light Blue | ||
| Drincable 800 Cable | A6E3G120 | 3G | 120 | Light Blue | ||
| Drincable 800 Cable | A6E3G150 | 3G | 150 | Light Blue | ||
| Drincable 800 Cable | A6E3G185 | 3G | 185 | Light Blue | ||
| Drincable 800 Cable | A6E3G240 | 3G | 240 | Light Blue | ||
| Drincable 800 Cable | A6E3G300 | 3G | 300 | Light Blue | ||
| Drincable 800 Cable | A6E4G0015 | 4G | 1.5 | Light Blue | ||
| Drincable 800 Cable | A6E4G0025 | 4G | 2.5 | Light Blue | ||
| Drincable 800 Cable | A6E4G0040 | 4G | 4 | Light Blue | ||
| Drincable 800 Cable | A6E4G0060 | 4G | 6 | Light Blue | ||
| Drincable 800 Cable | A6E4G010 | 4G | 10 | Light Blue | ||
| Drincable 800 Cable | A6E4G016 | 4G | 16 | Light Blue | ||
| Drincable 800 Cable | A6E4G025 | 4G | 25 | Light Blue | ||
| Drincable 800 Cable | A6E4G035 | 4G | 35 | Light Blue | ||
| Drincable 800 Cable | A6E4G050 | 4G | 50 | Light Blue | ||
| Drincable 800 Cable | A6E4G070 | 4G | 70 | Light Blue | ||
| Drincable 800 Cable | A6E4G095 | 4G | 95 | Light Blue | ||
| Drincable 800 Cable | A6E4G120 | 4G | 120 | Light Blue | ||
| Drincable 800 Cable | A6E4G150 | 4G | 150 | Light Blue | ||
| Drincable 800 Cable | A6E4G185 | 4G | 185 | Light Blue | ||
| Drincable 800 Cable | A6E4G240 | 4G | 240 | Light Blue | ||
| Drincable 600 Flat Cable | B6E030060F | 3 | 6 | Light Blue | ||
| Drincable 600 Flat Cable | B6E03010F | 3 | 10 | Light Blue | ||
| Drincable 600 Flat Cable | B6E03016F | 3 | 16 | Light Blue | ||
| Drincable 600 Flat Cable | B6E03025F | 3 | 25 | Light Blue | ||
| Drincable 600 Flat Cable | B6E03035F | 3 | 35 | Light Blue | ||
| Drincable 600 Flat Cable | B6E03050F | 3 | 50 | Light Blue | ||
| Drincable 600 Flat Cable | B6E03070F | 3 | 70 | Light Blue | ||
| Drincable 600 Flat Cable | B6E03095F | 3 | 95 | Light Blue | ||
| Drincable 600 Flat Cable | B6E03120F | 3 | 120 | Light Blue | ||
| Drincable 600 Flat Cable | B6E03150F | 3 | 150 | Light Blue | ||
| Drincable 600 Flat Cable | B6E03185F | 3 | 185 | Light Blue | ||
| Drincable 600 Flat Cable | B6E040040F | 4 | 4 | Light Blue | ||
| Drincable 600 Flat Cable | B6E040060F | 4 | 6 | Light Blue | ||
| Drincable 600 Flat Cable | B6E04010F | 4 | 10 | Light Blue | ||
| Drincable 600 Flat Cable | B6E04016F | 4 | 16 | Light Blue | ||
| Drincable 600 Flat Cable | B6E04025F | 4 | 25 | Light Blue | ||
| Drincable 600 Flat Cable | B6E04035F | 4 | 35 | Light Blue | ||
| Drincable 600 Flat Cable | B6E04050F | 4 | 50 | Light Blue | ||
| Drincable 600 Flat Cable | B6E04070F | 4 | 70 | Light Blue | ||
| Drincable 600 Flat Cable | B6E04095F | 4 | 95 | Light Blue | ||
| Drincable 600 Flat Cable | B6E04120F | 4 | 120 | Light Blue |
