What is cable lay?
Cable Lay refers to the lay length or length of twist or to the method and type of lay of electric cores or cables, sometimes known as cabling. Lay length is defined as the distance required to complete one revolution of the strand around the diameter of the conductor. When a conductor has more than one layer, it usually refers to the lay length of the outer layer.
There are several reasons for twisting cables together, including increasing flexibility, strength, concentricity and reducing cross-talk. The cable lay will depend on the reason for the twisting, the diameter of the cables, if there is a required orientation for cores and the number of cores of layers being twisted or laid up.
The cable lay may be left hand lay, known as S stranding or right hand lay, known as Z stranding.

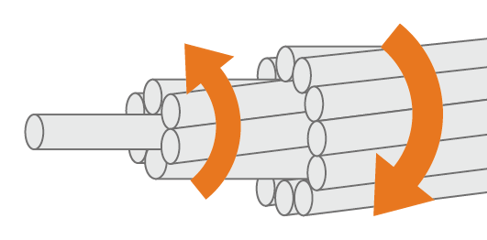

Multiple layers may be wound in alternating directions or the same direction as shown below:
Same Direction
Opposite Directions
In some configurations the lay is first in the left hand direction and then in the right hand direction known as SZ stranding.
