XHIAE, XHI1AE, LXHIAE and LXHI1AE Cables

Extending the range of Portuguese referenced Medium Voltage range are the XHIAE, XHI1AE, LXHIAE and LXHI1AE Cables, manufactured in accordance with IEC 60502-2 and HD 620.

XHIAE, XHI1AE, LXHIAE, LXHI1AE Cable Voltages and Sizes

With the XHIAE and XHI1AE cables having Copper conductors, and LXHIAE and LXHI1AE cables being Aluminium conductors, they are available in voltages of 3.6/6kV, 6/10kV, 8.7/15kV, 12/20kV and 18/30kV. Cable core sizes, with conductors provided in mm2, are broadly consistent across the voltages, but small differences do occur.

XHIAE, XHI1AE, LXHIAE, LXHI1AE Cable Specification

These MV cables have a robust Polyethylene (PE) sheathing covering a layer of armour. The PE sheathing is particularly suited to external installations including sitting in cable ducts subject to occasional waterlogging. Where ducts are permanently waterlogged, additional waterblocking measures may be required as part of the construction - speak to our team where this may be a factor.

The XHIAE and LXHIAE have STA Steel Tape armour being multicore cables, whilst the XHI1AE and LXHI1AE have ATA Aluminium Tape as they are single cores. This metallic armour is wound in a double layer, providing good mechanical protection. Tape armour is an alternative to SWA/AWA wire armoured cables such as the XHIRV and BS6622 cables.

These MV cables have a copper tape screening to minimise interference with proximate cables and electrical equipment, over the XLPE insulation which allows a maximum operating temperature of +90oC.

For installations requiring flame retardant cables, please see the PVC equivalent cables XHIAV, XHI1AV, LXHIAV and LXHI1AV.

These XHIAE, XHI1AE, LXHIAE and LXHI1AE cables are subject to intensive testing in our specialist MV cable facility to ensure quality and compliance; and are stored, wrapped and packaged so as to reach the customer site in optimum condition. For more information on our cable testing regime, please see the section on The Cable Lab or speak to a member of the technical team.

FastQuote Logo

Your tailored quote direct to your inbox

Your basket is currently empty

Go back

Construction Table

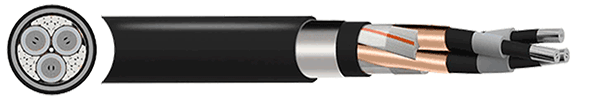

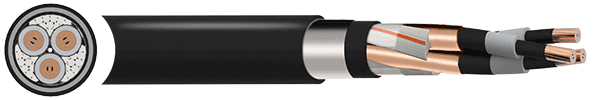

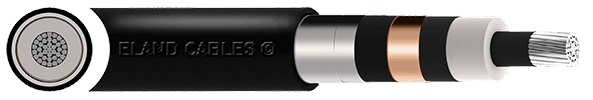

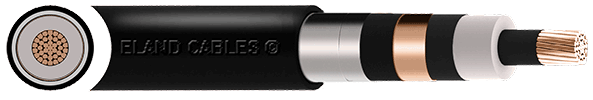

  CS XHIAV XHIAE Cable CS LXHIAV LXHIAE Cable CS XHI1AE XHI1AE Cable CS LXHI1AE LXHI1AE Cable
VOLTAGE

3.6/6kV to 18/30kV

CONDUCTOR

Class 2 stranded Copper

Class 2 stranded Aluminium

Class 2 stranded Copper

Class 2 stranded Aluminium

INSULATION

XLPE (Cross-linked Polyethylene)

SCREEN

Copper Tape

INNER SHEATH

PE (Polyethylene)

ARMOUR

STA (Steel Tape)

ATA (Aluminium Tape)

OUTER SHEATH

PE (Polyethylene)

XHIAE, XHI1AE, LXHIAE and LXHI1AE Cables

4 product(s)

YOUR CABLE OPTIONS

Use the FastQuote filters to find the exact cable specifications you need.

Need a bespoke solution? Learn more about customised cables.

Reset

Product name Part No Cores Nominal cross-sectional area (mm²) Voltage Rating Sheath colour Length (m)
XHIAE CableMP4510K03025325mm²10kVBlack
XHIAE CableMP4515K03025325mm²15kVBlack
XHIAE CableMP4506KV03025325mm²6kVBlack
XHIAE CableMP4520K03035335mm²20kVBlack
XHIAE CableMP4510K03035335mm²10kVBlack
XHIAE CableMP4515K03035335mm²15kVBlack
XHIAE CableMP4506K03035335mm²6kVBlack
XHIAE CableMP4530K03050350mm²30kVBlack
XHIAE CableMP4520K03050350mm²20kVBlack
XHIAE CableMP4510K03050350mm²10kVBlack
XHIAE CableMP4515K03050350mm²15kVBlack
XHIAE CableMP4506K03050350mm²6kVBlack
XHIAE CableMP4530K03070370mm²30kVBlack
XHIAE CableMP4520K03070370mm²20kVBlack
XHIAE CableMP4510K03070370mm²10kVBlack
XHIAE CableMP4515K03070370mm²15kVBlack
XHIAE CableMP4506K03070370mm²6kVBlack
XHIAE CableMP4530K03095395mm²30kVBlack
XHIAE CableMP4520K03095395mm²20kVBlack
XHIAE CableMP4510K03095395mm²10kVBlack
XHIAE CableMP4515K03095395mm²15kVBlack
XHIAE CableMP4506K03095395mm²6kVBlack
XHIAE CableMP4530K031203120mm²30kVBlack
XHIAE CableMP4520K031203120mm²20kVBlack
XHIAE CableMP4510K031203120mm²10kVBlack
XHIAE CableMP4515K031203120mm²15kVBlack
XHIAE CableMP4506K031203120mm²6kVBlack
XHIAE CableMP4530K031503150mm²30kVBlack
XHIAE CableMP4520K031503150mm²20kVBlack
XHIAE CableMP4510K031503150mm²10kVBlack
XHIAE CableMP4515K031503150mm²15kVBlack
XHIAE CableMP4506K031503150mm²6kVBlack
XHIAE CableMP4530K031853185mm²30kVBlack
XHIAE CableMP4520K031853185mm²20kVBlack
XHIAE CableMP4510K031853185mm²10kVBlack
XHIAE CableMP4515K031853185mm²15kVBlack
XHIAE CableMP4506K031853185mm²6kVBlack
XHIAE CableMP4530K032403240mm²30kVBlack
XHIAE CableMP4520K032403240mm²20kVBlack
XHIAE CableMP4510K032403240mm²10kVBlack
XHIAE CableMP4515K032403240mm²15kVBlack
XHIAE CableMP4506K032403240mm²6kVBlack
XHIAE CableMP4530K033003300mm²30kVBlack
XHIAE CableMP4520K033003300mm²20kVBlack
XHIAE CableMP4510K033003300mm²10kVBlack
XHIAE CableMP4515K033003300mm²15kVBlack
XHIAE CableMP4506K033003300mm²6kVBlack
XHIAE CableMP4530K034003400mm²30kVBlack
XHIAE CableMP4520K034003400mm²20kVBlack
XHIAE CableMP4510K034003400mm²10kVBlack
XHIAE CableMP4515K034003400mm²15kVBlack
XHIAE CableMP4506K034003400mm²6kVBlack
LXHIAE CableMP4915K03025325mm²15kVBlack
LXHIAE CableMP4910K03025325mm²10kVBlack
LXHIAE CableMP4906KV03025325mm²6kVBlack
LXHIAE CableMP4920K03035335mm²20kVBlack
LXHIAE CableMP4915K03035335mm²15kVBlack
LXHIAE CableMP4910K03035335mm²10kVBlack
LXHIAE CableMP4906K03035335mm²6kVBlack
LXHIAE CableMP4930K03050350mm²30kVBlack
LXHIAE CableMP4920K03050350mm²20kVBlack
LXHIAE CableMP4915K03050350mm²15kVBlack
LXHIAE CableMP4910K03050350mm²10kVBlack
LXHIAE CableMP4906K03050350mm²6kVBlack
LXHIAE CableMP4930K03070370mm²30kVBlack
LXHIAE CableMP4920K03070370mm²20kVBlack
LXHIAE CableMP4915K03070370mm²15kVBlack
LXHIAE CableMP4910K03070370mm²10kVBlack
LXHIAE CableMP4906K03070370mm²6kVBlack
LXHIAE CableMP4930K03095395mm²30kVBlack
LXHIAE CableMP4920K03095395mm²20kVBlack
LXHIAE CableMP4915K03095395mm²15kVBlack
LXHIAE CableMP4910K03095395mm²10kVBlack
LXHIAE CableMP4906K03095395mm²6kVBlack
LXHIAE CableMP4930K031203120mm²30kVBlack
LXHIAE CableMP4920K031203120mm²20kVBlack
LXHIAE CableMP4915K031203120mm²15kVBlack
LXHIAE CableMP4910K031203120mm²10kVBlack
LXHIAE CableMP4906K031203120mm²6kVBlack
LXHIAE CableMP4930K031503150mm²30kVBlack
LXHIAE CableMP4920K031503150mm²20kVBlack
LXHIAE CableMP4915K031503150mm²15kVBlack
LXHIAE CableMP4910K031503150mm²10kVBlack
LXHIAE CableMP4906K031503150mm²6kVBlack
LXHIAE CableMP4930K031853185mm²30kVBlack
LXHIAE CableMP4920K031853185mm²20kVBlack
LXHIAE CableMP4915K031853185mm²15kVBlack
LXHIAE CableMP4910K031853185mm²10kVBlack
LXHIAE CableMP4906K031853185mm²6kVBlack
LXHIAE CableMP4930K032403240mm²30kVBlack
LXHIAE CableMP4920K032403240mm²20kVBlack
LXHIAE CableMP4915K032403240mm²15kVBlack
LXHIAE CableMP4910K032403240mm²10kVBlack
LXHIAE CableMP4906K032403240mm²6kVBlack
LXHIAE CableMP4930K033003300mm²30kVBlack
LXHIAE CableMP4920K033003300mm²20kVBlack
LXHIAE CableMP4915K033003300mm²15kVBlack
LXHIAE CableMP4910K033003300mm²10kVBlack
LXHIAE CableMP4906K033003300mm²6kVBlack
LXHIAE CableMP4930K034003400mm²30kVBlack
LXHIAE CableMP4920K034003400mm²20kVBlack
LXHIAE CableMP4915K034003400mm²15kVBlack
LXHIAE CableMP4910K034003400mm²10kVBlack
LXHIAE CableMP4906K034003400mm²6kVBlack
XHI1AE CableMP1815K01025125mm²15kVBlack
XHI1AE CableMP1810K01025125mm²10kVBlack
XHI1AE CableMP1806KV01025125mm²6kVBlack
XHI1AE CableMP1820K01035135mm²20kVBlack
XHI1AE CableMP1815K01035135mm²15kVBlack
XHI1AE CableMP1810K01035135mm²10kVBlack
XHI1AE CableMP1806K01035135mm²6kVBlack
XHI1AE CableMP1830K01050150mm²30kVBlack
XHI1AE CableMP1820K01050150mm²20kVBlack
XHI1AE CableMP1815K01050150mm²15kVBlack
XHI1AE CableMP1810K01050150mm²10kVBlack
XHI1AE CableMP1806K01050150mm²6kVBlack
XHI1AE CableMP1830K01070170mm²30kVBlack
XHI1AE CableMP1820K01070170mm²20kVBlack
XHI1AE CableMP1815K01070170mm²15kVBlack
XHI1AE CableMP1810K01070170mm²10kVBlack
XHI1AE CableMP1806K01070170mm²6kVBlack
XHI1AE CableMP1830K01095195mm²30kVBlack
XHI1AE CableMP1820K01095195mm²20kVBlack
XHI1AE CableMP1815K01095195mm²15kVBlack
XHI1AE CableMP1810K01095195mm²10kVBlack
XHI1AE CableMP1806K01095195mm²6kVBlack
XHI1AE CableMP1830K011201120mm²30kVBlack
XHI1AE CableMP1820K011201120mm²20kVBlack
XHI1AE CableMP1815K011201120mm²15kVBlack
XHI1AE CableMP1810K011201120mm²10kVBlack
XHI1AE CableMP1806K011201120mm²6kVBlack
XHI1AE CableMP1830K011501150mm²30kVBlack
XHI1AE CableMP1820K011501150mm²20kVBlack
XHI1AE CableMP1815K011501150mm²15kVBlack
XHI1AE CableMP1810K011501150mm²10kVBlack
XHI1AE CableMP1806K011501150mm²6kVBlack
XHI1AE CableMP1830K011851185mm²30kVBlack
XHI1AE CableMP1820K011851185mm²20kVBlack
XHI1AE CableMP1815K011851185mm²15kVBlack
XHI1AE CableMP1810K011851185mm²10kVBlack
XHI1AE CableMP1806K011851185mm²6kVBlack
XHI1AE CableMP1830K012401240mm²30kVBlack
XHI1AE CableMP1820K012401240mm²20kVBlack
XHI1AE CableMP1815K012401240mm²15kVBlack
XHI1AE CableMP1810K012401240mm²10kVBlack
XHI1AE CableMP1806K012401240mm²6kVBlack
XHI1AE CableMP1830K013001300mm²30kVBlack
XHI1AE CableMP1820K013001300mm²20kVBlack
XHI1AE CableMP1815K013001300mm²15kVBlack
XHI1AE CableMP1810K013001300mm²10kVBlack
XHI1AE CableMP1806K013001300mm²6kVBlack
XHI1AE CableMP1830K014001400mm²30kVBlack
XHI1AE CableMP1820K014001400mm²20kVBlack
XHI1AE CableMP1815K014001400mm²15kVBlack
XHI1AE CableMP1810K014001400mm²10kVBlack
XHI1AE CableMP1806K014001400mm²6kVBlack
XHI1AE CableMP1830K015001500mm²30kVBlack
XHI1AE CableMP1820K015001500mm²20kVBlack
XHI1AE CableMP1815K015001500mm²15kVBlack
XHI1AE CableMP1810K015001500mm²10kVBlack
XHI1AE CableMP1806K015001500mm²6kVBlack
XHI1AE CableMP1830K016301630mm²30kVBlack
XHI1AE CableMP1820K016301630mm²20kVBlack
XHI1AE CableMP1815K016301630mm²15kVBlack
XHI1AE CableMP1810K016301630mm²10kVBlack
XHI1AE CableMP1806K016301630mm²6kVBlack
LXHI1AE CableMP2215K01025125mm²15kVBlack
LXHI1AE CableMP2210K01025125mm²10kVBlack
LXHI1AE CableMP2206KV01025125mm²6kVBlack
LXHI1AE CableMP2220K01035135mm²20kVBlack
LXHI1AE CableMP2215K01035135mm²15kVBlack
LXHI1AE CableMP2210K01035135mm²10kVBlack
LXHI1AE CableMP2206K01035135mm²6kVBlack
LXHI1AE CableMP2230K01050150mm²30kVBlack
LXHI1AE CableMP2220K01050150mm²20kVBlack
LXHI1AE CableMP2215K01050150mm²15kVBlack
LXHI1AE CableMP2210K01050150mm²10kVBlack
LXHI1AE CableMP2206K01050150mm²6kVBlack
LXHI1AE CableMP2230K01070170mm²30kVBlack
LXHI1AE CableMP2220K01070170mm²20kVBlack
LXHI1AE CableMP2215K01070170mm²15kVBlack
LXHI1AE CableMP2210K01070170mm²10kVBlack
LXHI1AE CableMP2206K01070170mm²6kVBlack
LXHI1AE CableMP2230K01095195mm²30kVBlack
LXHI1AE CableMP2220K01095195mm²20kVBlack
LXHI1AE CableMP2215K01095195mm²15kVBlack
LXHI1AE CableMP2210K01095195mm²10kVBlack
LXHI1AE CableMP2206K01095195mm²6kVBlack
LXHI1AE CableMP2230K011201120mm²30kVBlack
LXHI1AE CableMP2220K011201120mm²20kVBlack
LXHI1AE CableMP2215K011201120mm²15kVBlack
LXHI1AE CableMP2210K011201120mm²10kVBlack
LXHI1AE CableMP2206K011201120mm²6kVBlack
LXHI1AE CableMP2230K011501150mm²30kVBlack
LXHI1AE CableMP2220K011501150mm²20kVBlack
LXHI1AE CableMP2215K011501150mm²15kVBlack
LXHI1AE CableMP2210K011501150mm²10kVBlack
LXHI1AE CableMP2206K011501150mm²6kVBlack
LXHI1AE CableMP2230K011851185mm²30kVBlack
LXHI1AE CableMP2220K011851185mm²20kVBlack
LXHI1AE CableMP2215K011851185mm²15kVBlack
LXHI1AE CableMP2210K011851185mm²10kVBlack
LXHI1AE CableMP2206K011851185mm²6kVBlack
LXHI1AE CableMP2230K012401240mm²30kVBlack
LXHI1AE CableMP2220K012401240mm²20kVBlack
LXHI1AE CableMP2215K012401240mm²15kVBlack
LXHI1AE CableMP2210K012401240mm²10kVBlack
LXHI1AE CableMP2206K012401240mm²6kVBlack
LXHI1AE CableMP2230K013001300mm²30kVBlack
LXHI1AE CableMP2220K013001300mm²20kVBlack
LXHI1AE CableMP2215K013001300mm²15kVBlack
LXHI1AE CableMP2210K013001300mm²10kVBlack
LXHI1AE CableMP2206K013001300mm²6kVBlack
LXHI1AE CableMP2230K014001400mm²30kVBlack
LXHI1AE CableMP2220K014001400mm²20kVBlack
LXHI1AE CableMP2215K014001400mm²15kVBlack
LXHI1AE CableMP2210K014001400mm²10kVBlack
LXHI1AE CableMP2206K014001400mm²6kVBlack
LXHI1AE CableMP2230K015001500mm²30kVBlack
LXHI1AE CableMP2220K015001500mm²20kVBlack
LXHI1AE CableMP2215K015001500mm²15kVBlack
LXHI1AE CableMP2210K015001500mm²10kVBlack
LXHI1AE CableMP2206K015001500mm²6kVBlack
LXHI1AE CableMP2230K016301630mm²30kVBlack
LXHI1AE CableMP2220K016301630mm²20kVBlack
LXHI1AE CableMP2215K016301630mm²15kVBlack
LXHI1AE CableMP2210K016301630mm²10kVBlack
LXHI1AE CableMP2206K016301630mm²6kVBlack
