NF M 87 202 Cable

to NF M87 202 Cable datasheets

NF M87-202 is the French Standard (Norme Française) covering both armoured and unarmoured instrumentation cables, connecting electrical circuits and providing communication services in process plants for the petroleum and petrochemical industry.

NF M87-202 Cable Specification

These cables are designed for safe extra-low voltage, for the transmission of AC or DC analogue signals. They are suitable for aliphatic and aromatic hydrocarbon resistance applications. They have a voltage rating of 300/500V.

With both armoured and unarmoured variants, these cables are in cores, pairs and multi-pair configurations. The armoured versions, with double steel tape to provide mechanical protection, can be buried directly. PVC insulated and with a special PVC sheathing, these cables are flame retardant, and resistant to UV, mineral oil and hydrocarbons.

All NF M87-202 Cables are screened to provide signal integrity, with Al/PET tapes collectively applied and, in the case of EISF and EIFA type cables, also individually applied.

An armoured version with double steel tape Low Smoke Zero Halogen (LSZH) is also available on request.

NF M87-202 Cable Datasheets

The attached datasheets for EISF, EIFA, EGFA and EGSF instrumentation cables provides the dimensional details and electrical characteristics to support cable selection. Where additional information - or alternate cable constructions and materials - are required, please speak to our team who will be able to assist. Where required, our international team has French speakers to support any enquiry.

NF M87 202 Cable Technical Support

Eland Cables supplies a comprehensive range of instrumentation cables for the oil & gas industry manufactured according to British and International Standards, including French, German and Norwegian. Details on NF M87-202 standard cables, our wider instrumentation range, and our technical services are also available in French. Please call us for technical support with cable selection or to discuss your project's specific requirements.

FastQuote Logo

Your tailored quote direct to your inbox

Your basket is currently empty

Go back

Construction Table

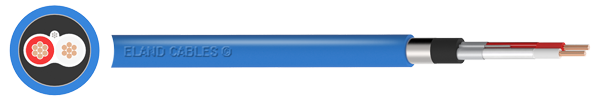

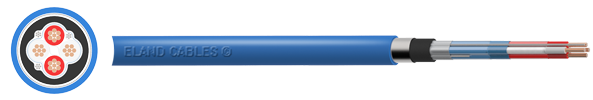

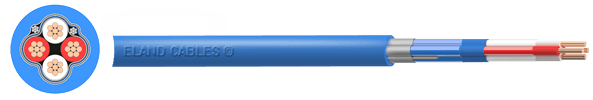

  NF M87-202 EGFA Cable CS NF M 87 - 202 EGFA NF M87-202 EGSF Cable CS NF M 87 - 202 EGSF NF M87-202 EIFA Cable CS NF M 87 - 202 EIFA NF M87-202 EISF Cable CS NF M 87 - 202 EISF
VOLTAGE

300/500V

CONDUCTOR

Class 1 Solid Copper
Class 2 Stranded Copper

INSULATION

PVC (Polyvinyl Chloride)

INDIVIDUAL BINDER TAPE

-

PET (Polyester Tape)

INDIVIDUAL SCREEN

-

Al/PET (Aluminium/Polyester Tape)

INDIVIDUAL SHEATH

-

PVC (Polyvinyl Chloride)

OVERALL BINDER TAPE

PET (Polyester Tape)

COLLECTIVE SCREEN

Al/PET (Aluminium/Polyester Tape)

BEDDING

-

COVERING

-

INNER SHEATH

PVC (Polyvinyl Chloride)

-

PVC (Polyvinyl Chloride)

-

ARMOUR

Double Steel Tape

-

Double Steel Tape

-

OUTER SHEATH

PVC (Polyvinyl Chloride)

YOUR CABLE OPTIONS

Use the FastQuote filters to find the exact cable specifications you need.

Need a bespoke solution? Learn more about customised cables.

Reset

Product name Part No Pairs Nominal cross-sectional area (mm²) Sheath colour Length (m)
NF M 87 - 202 EGFAIEGFA0100051P0.5mm²Light Blue
NF M 87 - 202 EGFAIEGFA0100881P0.88mm²Light Blue
NF M 87 - 202 EGFAIEGFA010151P1.5mm²Light Blue
NF M 87 - 202 EGFAIEGFA01T00051T0.5mm²Light Blue
NF M 87 - 202 EGFAIEGFA01T00881T0.88mm²Light Blue
NF M 87 - 202 EGFAIEGFA01T0151T1.5mm²Light Blue
NF M 87 - 202 EGFAIEGFA0200052P(Q)0.5mm²Light Blue
NF M 87 - 202 EGFAIEGFA0200882P(Q)0.88mm²Light Blue
NF M 87 - 202 EGFAIEGFA020152P(Q)1.5mm²Light Blue
NF M 87 - 202 EGFAIEGFA02T00052T0.5mm²Light Blue
NF M 87 - 202 EGFAIEGFA02T00882T0.88mm²Light Blue
NF M 87 - 202 EGFAIEGFA02T0152T1.5mm²Light Blue
NF M 87 - 202 EGFAIEGFA0300053P0.5mm²Light Blue
NF M 87 - 202 EGFAIEGFA0300883P0.88mm²Light Blue
NF M 87 - 202 EGFAIEGFA030153P1.5mm²Light Blue
NF M 87 - 202 EGFAIEGFA03T00053T0.5mm²Light Blue
NF M 87 - 202 EGFAIEGFA03T00883T0.88mm²Light Blue
NF M 87 - 202 EGFAIEGFA03T0153T1.5mm²Light Blue
NF M 87 - 202 EGFAIEGFA0700057P0.5mm²Light Blue
NF M 87 - 202 EGFAIEGFA0700887P0.88mm²Light Blue
NF M 87 - 202 EGFAIEGFA070157P1.5mm²Light Blue
NF M 87 - 202 EGFAIEGFA07T00057T0.5mm²Light Blue
NF M 87 - 202 EGFAIEGFA07T00887T0.88mm²Light Blue
NF M 87 - 202 EGFAIEGFA07T0157T1.5mm²Light Blue
NF M 87 - 202 EGFAIEGFA12000512P0.5mm²Light Blue
NF M 87 - 202 EGFAIEGFA12008812P0.88mm²Light Blue
NF M 87 - 202 EGFAIEGFA1201512P1.5mm²Light Blue
NF M 87 - 202 EGFAIEGFA12T000512T0.5mm²Light Blue
NF M 87 - 202 EGFAIEGFA12T008812T0.88mm²Light Blue
NF M 87 - 202 EGFAIEGFA12T01512T1.5mm²Light Blue
NF M 87 - 202 EGFAIEGFA19000519P0.5mm²Light Blue
NF M 87 - 202 EGFAIEGFA19008819P0.88mm²Light Blue
NF M 87 - 202 EGFAIEGFA1901519P1.5mm²Light Blue
NF M 87 - 202 EGFAIEGFA19T000519T0.5mm²Light Blue
NF M 87 - 202 EGFAIEGFA19T008819T0.88mm²Light Blue
NF M 87 - 202 EGFAIEGFA19T01519T1.5mm²Light Blue
NF M 87 - 202 EGFAIEGFA27000527P0.5mm²Light Blue
NF M 87 - 202 EGFAIEGFA27008827P0.88mm²Light Blue
NF M 87 - 202 EGFAIEGFA2701527P1.5mm²Light Blue
NF M 87 - 202 EGFAIEGFA27T000527T0.5mm²Light Blue
NF M 87 - 202 EGFAIEGFA27T008827T0.88mm²Light Blue
NF M 87 - 202 EGFAIEGFA27T01527T1.5mm²Light Blue
NF M 87 - 202 EGSFIEGSF0100051P0.5mm²Orange
NF M 87 - 202 EGSFIEGSF0100881P0.88mm²Orange
NF M 87 - 202 EGSFIEGSF010151P1.5mm²Orange
NF M 87 - 202 EGSFIEGSF01T00051T0.5mm²Orange
NF M 87 - 202 EGSFIEGSF01T00881T0.88mm²Orange
NF M 87 - 202 EGSFIEGSF01T0151T1.5mm²Orange
NF M 87 - 202 EGSFIEGSF0200052P(Q)0.5mm²Orange
NF M 87 - 202 EGSFIEGSF0200882P(Q)0.88mm²Orange
NF M 87 - 202 EGSFIEGSF020152P(Q)1.5mm²Orange
NF M 87 - 202 EGSFIEGSF02T00052T0.5mm²Orange
NF M 87 - 202 EGSFIEGSF02T00882T0.88mm²Orange
NF M 87 - 202 EGSFIEGSF02T0152T1.5mm²Orange
NF M 87 - 202 EGSFIEGSF0300053P0.5mm²Orange
NF M 87 - 202 EGSFIEGSF0300883P0.88mm²Orange
NF M 87 - 202 EGSFIEGSF030153P1.5mm²Orange
NF M 87 - 202 EGSFIEGSF03T00053T0.5mm²Orange
NF M 87 - 202 EGSFIEGSF03T00883T0.88mm²Orange
NF M 87 - 202 EGSFIEGSF03T0153T1.5mm²Orange
NF M 87 - 202 EGSFIEGSF0700057P0.5mm²Orange
NF M 87 - 202 EGSFIEGSF0700887P0.88mm²Orange
NF M 87 - 202 EGSFIEGSF070157P1.5mm²Orange
NF M 87 - 202 EGSFIEGSF07T00057T0.5mm²Orange
NF M 87 - 202 EGSFIEGSF07T00887T0.88mm²Orange
NF M 87 - 202 EGSFIEGSF07T0157T1.5mm²Orange
NF M 87 - 202 EGSFIEGSF12000512P0.5mm²Orange
NF M 87 - 202 EGSFIEGSF12008812P0.88mm²Orange
NF M 87 - 202 EGSFIEGSF1201512P1.5mm²Orange
NF M 87 - 202 EGSFIEGSF12T000512T0.5mm²Orange
NF M 87 - 202 EGSFIEGSF12T008812T0.88mm²Orange
NF M 87 - 202 EGSFIEGSF12T01512T1.5mm²Orange
NF M 87 - 202 EGSFIEGSF19000519P0.5mm²Orange
NF M 87 - 202 EGSFIEGSF19008819P0.88mm²Orange
NF M 87 - 202 EGSFIEGSF1901519P1.5mm²Orange
NF M 87 - 202 EGSFIEGSF19T000519T0.5mm²Orange
NF M 87 - 202 EGSFIEGSF19T008819T0.88mm²Orange
NF M 87 - 202 EGSFIEGSF19T01519T1.5mm²Orange
NF M 87 - 202 EGSFIEGSF27000527P0.5mm²Orange
NF M 87 - 202 EGSFIEGSF27008827P0.88mm²Orange
NF M 87 - 202 EGSFIEGSF2701527P1.5mm²Orange
NF M 87 - 202 EGSFIEGSF27T000527T0.5mm²Orange
NF M 87 - 202 EGSFIEGSF27T008827T0.88mm²Orange
NF M 87 - 202 EGSFIEGSF27T01527T1.5mm²Orange
NF M 87 - 202 EIFAIEIFA0100051P0.5mm²Light Blue
NF M 87 - 202 EIFAIEIFA0100881P0.88mm²Light Blue
NF M 87 - 202 EIFAIEIFA010151P1.5mm²Light Blue
NF M 87 - 202 EIFAIEIFA01T00051T0.5mm²Light Blue
NF M 87 - 202 EIFAIEIFA01T00881T0.88mm²Light Blue
NF M 87 - 202 EIFAIEIFA01T0151T1.5mm²Light Blue
NF M 87 - 202 EIFAIEIFA0200052P(Q)0.5mm²Light Blue
NF M 87 - 202 EIFAIEIFA0200882P(Q)0.88mm²Light Blue
NF M 87 - 202 EIFAIEIFA020152P(Q)1.5mm²Light Blue
NF M 87 - 202 EIFAIEIFA02T00052T0.5mm²Light Blue
NF M 87 - 202 EIFAIEIFA02T00882T0.88mm²Light Blue
NF M 87 - 202 EIFAIEIFA02T0152T1.5mm²Light Blue
NF M 87 - 202 EIFAIEIFA0300053P0.5mm²Light Blue
NF M 87 - 202 EIFAIEIFA0300883P0.88mm²Light Blue
NF M 87 - 202 EIFAIEIFA030153P1.5mm²Light Blue
NF M 87 - 202 EIFAIEIFA03T00053T0.5mm²Light Blue
NF M 87 - 202 EIFAIEIFA03T00883T0.88mm²Light Blue
NF M 87 - 202 EIFAIEIFA03T0153T1.5mm²Light Blue
NF M 87 - 202 EIFAIEIFA0700057P0.5mm²Light Blue
NF M 87 - 202 EIFAIEIFA0700887P0.88mm²Light Blue
NF M 87 - 202 EIFAIEIFA070157P1.5mm²Light Blue
NF M 87 - 202 EIFAIEIFA07T00057T0.5mm²Light Blue
NF M 87 - 202 EIFAIEIFA07T00887T0.88mm²Light Blue
NF M 87 - 202 EIFAIEIFA07T0157T1.5mm²Light Blue
NF M 87 - 202 EIFAIEIFA12000512P0.5mm²Light Blue
NF M 87 - 202 EIFAIEIFA12008812P0.88mm²Light Blue
NF M 87 - 202 EIFAIEIFA1201512P1.5mm²Light Blue
NF M 87 - 202 EIFAIEIFA12T000512T0.5mm²Light Blue
NF M 87 - 202 EIFAIEIFA12T008812T0.88mm²Light Blue
NF M 87 - 202 EIFAIEIFA12T01512T1.5mm²Light Blue
NF M 87 - 202 EIFAIEIFA19000519P0.5mm²Light Blue
NF M 87 - 202 EIFAIEIFA19008819P0.88mm²Light Blue
NF M 87 - 202 EIFAIEIFA1901519P1.5mm²Light Blue
NF M 87 - 202 EIFAIEIFA19T000519T0.5mm²Light Blue
NF M 87 - 202 EIFAIEIFA19T008819T0.88mm²Light Blue
NF M 87 - 202 EIFAIEIFA19T01519T1.5mm²Light Blue
NF M 87 - 202 EIFAIEIFA27000527P0.5mm²Light Blue
NF M 87 - 202 EIFAIEIFA27008827P0.88mm²Light Blue
NF M 87 - 202 EIFAIEIFA2701527P1.5mm²Light Blue
NF M 87 - 202 EIFAIEIFA27T000527T0.5mm²Light Blue
NF M 87 - 202 EIFAIEIFA27T008827T0.88mm²Light Blue
NF M 87 - 202 EIFAIEIFA27T01527T1.5mm²Light Blue
NF M 87 - 202 EISFIEISF0100051P0.5mm²Orange
NF M 87 - 202 EISFIEISF0100881P0.88mm²Orange
NF M 87 - 202 EISFIEISF010151P1.5mm²Orange
NF M 87 - 202 EISFIEISF01T00051T0.5mm²Orange
NF M 87 - 202 EISFIEISF01T00881T0.88mm²Orange
NF M 87 - 202 EISFIEISF01T0151T1.5mm²Orange
NF M 87 - 202 EISFIEISF0200052P(Q)0.5mm²Orange
NF M 87 - 202 EISFIEISF0200882P(Q)0.88mm²Orange
NF M 87 - 202 EISFIEISF020152P(Q)1.5mm²Orange
NF M 87 - 202 EISFIEISF02T00052T0.5mm²Orange
NF M 87 - 202 EISFIEISF02T00882T0.88mm²Orange
NF M 87 - 202 EISFIEISF02T0152T1.5mm²Orange
NF M 87 - 202 EISFIEISF0300053P0.5mm²Orange
NF M 87 - 202 EISFIEISF0300883P0.88mm²Orange
NF M 87 - 202 EISFIEISF030153P1.5mm²Orange
NF M 87 - 202 EISFIEISF03T00053T0.5mm²Orange
NF M 87 - 202 EISFIEISF03T00883T0.88mm²Orange
NF M 87 - 202 EISFIEISF03T0153T1.5mm²Orange
NF M 87 - 202 EISFIEISF0700057P0.5mm²Orange
NF M 87 - 202 EISFIEISF0700887P0.88mm²Orange
NF M 87 - 202 EISFIEISF070157P1.5mm²Orange
NF M 87 - 202 EISFIEISF07T00057T0.5mm²Orange
NF M 87 - 202 EISFIEISF07T00887T0.88mm²Orange
NF M 87 - 202 EISFIEISF07T0157T1.5mm²Orange
NF M 87 - 202 EISFIEISF12000512P0.5mm²Orange
NF M 87 - 202 EISFIEISF12008812P0.88mm²Orange
NF M 87 - 202 EISFIEISF1201512P1.5mm²Orange
NF M 87 - 202 EISFIEISF12T000512T0.5mm²Orange
NF M 87 - 202 EISFIEISF12T008812T0.88mm²Orange
NF M 87 - 202 EISFIEISF12T01512T1.5mm²Orange
NF M 87 - 202 EISFIEISF19000519P0.5mm²Orange
NF M 87 - 202 EISFIEISF19008819P0.88mm²Orange
NF M 87 - 202 EISFIEISF1901519P1.5mm²Orange
NF M 87 - 202 EISFIEISF19T000519T0.5mm²Orange
NF M 87 - 202 EISFIEISF19T008819T0.88mm²Orange
NF M 87 - 202 EISFIEISF19T01519T1.5mm²Orange
NF M 87 - 202 EISFIEISF27000527P0.5mm²Orange
NF M 87 - 202 EISFIEISF27008827P0.88mm²Orange
NF M 87 - 202 EISFIEISF2701527P1.5mm²Orange
NF M 87 - 202 EISFIEISF27T000527T0.5mm²Orange
NF M 87 - 202 EISFIEISF27T008827T0.88mm²Orange
NF M 87 - 202 EISFIEISF27T01527T1.5mm²Orange
