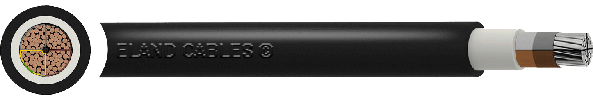

EAY2Y Cable
Key Features: EAY2Y Cable
- Application: Austrian reference low voltage power distribution cable.
- Suitability: For industrial installations, switch gears, and local main connections in energy grids. For fixed installation underground, in interior premises, cable ducts, in open air, in water.
- Standards & Voltage Rating: HD 603 S1. Flame retardant to: IEC/EN 60332-1. 0.6/1kV.
- Construction: Class 1 solid or Class 2 stranded Aluminium conductor, Polyvinyl Chloride (PVC) insulation, and High Density Polyethylene (HDPE) outer sheath.
- Details: Lightweight making for easier handling. CPR compliant.
Eland Cables is a leading global supplier of power, instrumentation and data cables for critical infrastructure and electrification. Our complete cable solutions are underpinned by technical expertise and our Cable Lab®, ensures rigorous compliance. Contact our team to discuss your requirements.
Jump To:
- Common applications for EAY2Y Cable
- E-AY2Y Cable specification
- Technical information for EAY2Y Cables
- Datasheet
Designed for low voltage applications in power stations, industrial installations, switch gears and local main connections in energy grids, our EAY2Y cables have a voltage rating of 0.6/1kV. With their aluminium conductors, these low voltage cables are also often used to connect computer technologies to networks and transmit data signals to underground network systems.
They are suitable for use in applications under mechanical stress, where protection is required against mechanical damage, particularly during installation and or operation, as well as from environmental elements - most often this is within the renewable energy industry.
Manufactured in accordance with IEC 60502-1, the EAYY cable is compliant with HD 603 S2, IEC 60332-1-2 for flame retardancy, and is CPR compliant.
The cable is designed for fixed installation underground, in buildings, cable ducts, in open air or in water, as permitted by the local building regulations. It has a maximum operating temperature of 70°C and minimum laying temperature of -5°C.
Provided with either a Class 1 solid or Class 2 stranded Aluminium conductors, circular or sectorial shaped, the EAY2Y is lightweight making for easier handling. The PVC (Polyvinyl Chloride) insulation is covered by a High-Density Polyethylene (HDPE) outer sheath, providing a balance between abrasion resistance, durability and flexibility. HDPE has improved resistance to stress cracking, making it ideal for moist environments due to its high resistance against water migration.
The cable sheath is also UV resistant (ultraviolet) light to prevent degradation, making it ideal for use in large industrial plants, like those in the chemical industry, which typically operate outdoors.
The technical datasheet confirms nominal cable sizes for the commonly specified single core and 4-core variants listed. 3-core plus reduced earth cable sizing is also available - please speak directly to the team for this information. Accompanying electrical characteristics are stated, but any further information to support cable selection can be provided by our technical team.
For wider support in the selection and specification of Austrian LV and MV power cables, please contact our Country Manager.
More information
Construction Table
EAY2Y
|
|
|---|---|
| VOLTAGE | 0.6/1kV |
| CONDUCTOR | Class 1 solid or Class 2 stranded Aluminium |
| INSULATION | PVC (Polyvinyl Chloride) |
| OUTER SHEATH | HDPE (High Density Polyethylene) |
YOUR CABLE OPTIONS
Use the FastQuote filters to find the exact cable specifications you need.
Need a bespoke solution? Learn more about customised cables.
| Product name | Part No | Cores | Nominal cross-sectional area (mm²) | Type | Sheath colour | Length (m) | |
|---|---|---|---|---|---|---|---|
| EAY2Y | C4B01150RM | 1 | 150mm² | RM | Black | ||
| EAY2Y | C4B01185RM | 1 | 185mm² | RM | Black | ||
| EAY2Y | C4B01240RM | 1 | 240mm² | RM | Black | ||
| EAY2Y | C4B01300RM | 1 | 300mm² | RM | Black | ||
| EAY2Y | C4B03240SM120SM | 3G | 240/120mm² | SM | Black | ||
| EAY2Y | C4B0416RM | 4 | 16mm² | RM | Black | ||
| EAY2Y | C4B0425RE | 4 | 25mm² | RE | Black | ||
| EAY2Y | C4B0425RM | 4 | 25mm² | RM | Black | ||
| EAY2Y | C4B0435RM | 4 | 35mm² | RM | Black | ||
| EAY2Y | C4B0435SM | 4 | 35mm² | SM | Black | ||
| EAY2Y | C4B0450SE | 4 | 50mm² | SE | Black | ||
| EAY2Y | C4B0450SM | 4 | 50mm² | SM | Black | ||
| EAY2Y | C4B0470SE | 4 | 70mm² | SE | Black | ||
| EAY2Y | C4B0470SM | 4 | 70mm² | SM | Black | ||
| EAY2Y | C4B0495SE | 4 | 95mm² | SE | Black | ||
| EAY2Y | C4B0495SM | 4 | 95mm² | SM | Black | ||
| EAY2Y | C4B04150SE | 4 | 150mm² | SE | Black | ||
| EAY2Y | C4B04150SM | 4 | 150mm² | SM | Black | ||
| EAY2Y | C4B04185SE | 4 | 185mm² | SE | Black | ||
| EAY2Y | C4B04185SM | 4 | 185mm² | SM | Black | ||
| EAY2Y | C4B04240SE | 4 | 240mm² | SE | Black | ||
| EAY2Y | C4B04240SM | 4 | 240mm² | SM | Black | ||
| EAY2Y | C4B04300SM | 4 | 300mm² | SM | Black |
