Coaxial cables are used for interconnecting data or telecoms industry equipment for the purpose of transmission of radio frequency signals, including television aerial connection, transmission of CCTV images, and broadband signals. Our range includes the RA7000 Equivalent cable and the BT3002 16 Way/ 8 Way cable which are both manufactured to the British Telecom (BT) specification.

Coaxial Cable Specification & Applications

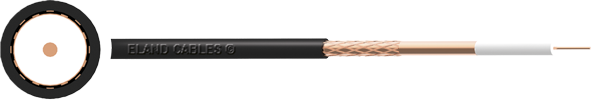

Cable CT Coaxial Cable Suitable for professional TV and CCTV system installations, including digital, satellite, terrestrial and cable TV.

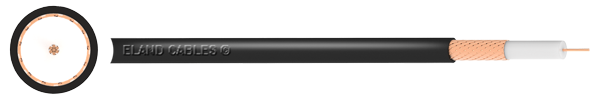

RG Coaxial Cable

50 or 75 Ohm, suitable for a broad range of applications including low power video, video signal, and broadband signals. Plain Copper, Tinned Copper wire, Copper Clad steel, or Copper Clad Aluminium. Available in Duct Grade PE, PVC or LSZH sheathing.

Variants include: RG6, RG11, RG58, RG 59, RG59 Shotgun, RG179 and RG213

URM Coaxial Cable

50 or 75 Ohm, suitable for a broad range of applications including low power video, video signal, and broadband signals. PVC sheathing over Copper Wire braid and PE insulation. Plain Copper Wires.

URM67 or URM70 variants.

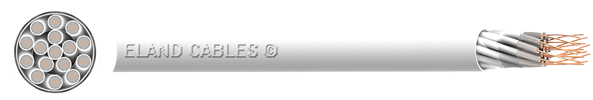

Coaxial BT3002 16 Way / 8 Way Cable

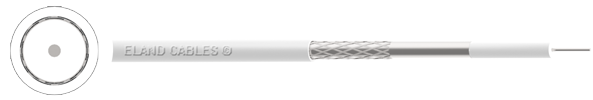

Coaxial RA7000 Equivalent Cable
Manufactured to BT Specifications.



Coaxial Technical Support & datasheets

Please contact our technical engineers for assistance with the selection of coaxial cable or to discuss your specific project requirement. The attached datasheets provide dimensional data and electrical characteristics for cable selection but should additional data be required, our team will be able to assist.
