ARE4H1R Cable
Key Features: ARE4H1R Cable
- Application: Italian reference Medium voltage power distribution cables.
- Suitability: Suitable for laying in underground channels; in underground pipe; in open air.
- Standards & Voltage Rating: IEC 60502-2. HD620. 12/20kV and 18/30kV.
- Construction: Class 2 stranded aluminium conductor, Cross-linked Polyethylene (XLPE) insulation, and Polyvinyl Chloride (PVC) outer sheath.
- Details: Single core cable. Can be used in wind power plants.
Eland Cables is a leading global supplier of power, instrumentation and data cables for critical infrastructure and electrification. Our complete cable solutions are underpinned by technical expertise and our Cable Lab®, ensures rigorous compliance. Contact our team to discuss your requirements.
- Italian PVC sheathed MV Cables
- ARE4H1R Cable Construction and Applications
- Technical support with ARE4H1R cables
- ARE4H1R Cable Datasheet
The ARE4H1R cables are manufactured in accordance with IEC 60502-2 for Medium Voltage Cables, and generally to HD620-10I1.
They use the Italian nomenclature for cable names, and are offered as single core cables in voltages of 12/20kV and 18/30kV, across a range of conductor cross-sectional area sizes.
Designed for power distribution projects, these cables can be installed in underground channels in accordance with Art. 4.3.11 of CEI 11-17. They can provide both infrastructure and equipment power, and are commonly specified in wind farms and wind power plants as connections to sub-stations.

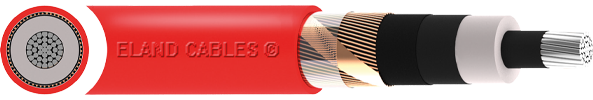

ARE4H1R cables have Class 2 rigid stranded Aluminium conductors, XLPE insulation, and PVC outer sheathing. This PVC sheathing provides robust environmental protections. Screening comes from a layer of Copper wires and tape, with a semi-conductive waterblocking tape laid underneath to assist in protecting against water ingress in the event of damage.
Support with the specification of the ARE4H1R cables can be provided, alongside guidance on our short manufacturing lead times and the logistics solutions that can support project delivery.
The technical data contained within the datasheets linked below provide electrical characteristics and cable dimensions. Where additional information is needed to aid cable selection, please contact the team.
More information
Construction Table
ARE4H1R Cable
|
|
|---|---|
| CONDUCTOR | Class 2 compacted stranded aluminium |
| INSULATION | XLPE (Cross-Linked Polyethylene) compound (DIX 8) |
| SCREEN | Copper Wires and Tape |
| OUTER SHEATH | PVC (Polyvinyl Chloride) (ST2) |
YOUR CABLE OPTIONS
Use the FastQuote filters to find the exact cable specifications you need.
Need a bespoke solution? Learn more about customised cables.
| Product name | Part No | Cores | Nominal cross-sectional area (mm²) | Voltage Rating | Sheath colour | Length (m) | |
|---|---|---|---|---|---|---|---|
| ARE4H1R Cable | T9XA20KV01050 | 1 | 50mm2 | 20kV | Red | ||
| ARE4H1R Cable | T9XA30KV01050 | 1 | 50mm2 | 30kV | Red | ||
| ARE4H1R Cable | T9XA20KV01070 | 1 | 70mm2 | 20kV | Red | ||
| ARE4H1R Cable | T9XA30KV01070 | 1 | 70mm2 | 30kV | Red | ||
| ARE4H1R Cable | T9XA20KV01095 | 1 | 95mm2 | 20kV | Red | ||
| ARE4H1R Cable | T9XA30KV01095 | 1 | 95mm2 | 30kV | Red | ||
| ARE4H1R Cable | T9XA20KV01120 | 1 | 120mm2 | 20kV | Red | ||
| ARE4H1R Cable | T9XA30KV01120 | 1 | 120mm2 | 30kV | Red | ||
| ARE4H1R Cable | T9XA20KV01150 | 1 | 150mm2 | 20kV | Red | ||
| ARE4H1R Cable | T9XA30KV01150 | 1 | 150mm2 | 30kV | Red | ||
| ARE4H1R Cable | T9XA20KV01185 | 1 | 185mm2 | 20kV | Red | ||
| ARE4H1R Cable | T9XA30KV01185 | 1 | 185mm2 | 30kV | Red | ||
| ARE4H1R Cable | T9XA20KV01240 | 1 | 240mm2 | 20kV | Red | ||
| ARE4H1R Cable | T9XA30KV01240 | 1 | 240mm2 | 30kV | Red | ||
| ARE4H1R Cable | T9XA20KV01300 | 1 | 300mm2 | 20kV | Red | ||
| ARE4H1R Cable | T9XA30KV01300 | 1 | 300mm2 | 30kV | Red | ||
| ARE4H1R Cable | T9XA20KV01400 | 1 | 400mm2 | 20kV | Red | ||
| ARE4H1R Cable | T9XA30KV01400 | 1 | 400mm2 | 30kV | Red | ||
| ARE4H1R Cable | T9XA20KV01500 | 1 | 500mm2 | 20kV | Red | ||
| ARE4H1R Cable | T9XA30KV01500 | 1 | 500mm2 | 30kV | Red | ||
| ARE4H1R Cable | T9XA20KV01630 | 1 | 630mm2 | 20kV | Red | ||
| ARE4H1R Cable | T9XA30KV01630 | 1 | 630mm2 | 30kV | Red |
