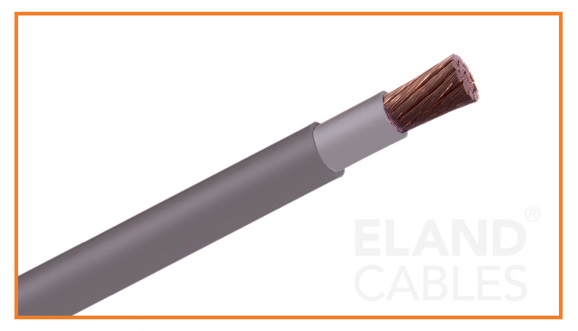

6381Y Cable
Key Features: 6381Y Cable
- Application: Low voltage fixed wiring cable.
- Suitability: For AC and DC power supplies to telecommunication industry equipment. Can be installed in trays, clipped, or suspended.
- Standards & Voltage Ratings: BS6004. 1.5mm2 to 35mm2: 450/750V. 50mm2 and above: 0.6/1kV.
- Construction: Class 5 flexible stranded copper, with Polyvinyl Chloride (PVC) insulation and outer sheath.
- Details: Often referred to as a double insulated cable. Meets the flammability requirements of BT M231. CPR compliant.
Eland Cables is a leading global supplier of power, instrumentation and data cables for critical infrastructure and electrification. Our complete cable solutions are underpinned by technical expertise and our Cable Lab®, ensures rigorous compliance. Contact our team to discuss your requirements.
The 6381Y is a flexible low voltage fixed wiring cable manufactured to BS6004, a British Standard covering electrical power, lighting and internal wiring. It is also Flame Retardant according to IEC/EN 60332-1-2 and CPR compliant.
It is often referred to as a double insulated cable, with both PVC insulation and sheathing over the copper conductor (and no additional component layers between them).
The 6381Y cable is suitable for AC and DC power supplies on telecommunication industry equipment such as telephone exchanges and power applications where flexibility is required. It is suitable for BT installations as it meets the flammability requirements of BT M231.
This fixed wiring cable should not be exposed to the risk of mechanical damage. It can be installed in trays, clipped, or suspended.
The voltage rating for this cable depends on the conductor size; 1.5mm2 to 35mm2 has a voltage rating of 450/750V and 50mm2 and above has a voltage rating of 0.6/1kV.
Depending on the installation requirements, the choice of sheath colour is Grey, Blue, and Green/Yellow. Special colours can be available on request.
The dimensional data and electrical characteristics contained within the PDF datasheet will support accurate specification and cable selection. For technical support or more information, please speak to the team.
More information
Construction Table
6381Y Cable
|
|
|---|---|
| VOLTAGE | 1.5mm2 to 35mm2: 450/750V |
| CONDUCTOR | Class 5 Flexible Stranded Copper |
| INSULATION | PVC (Polyvinyl Chloride) |
| OUTER SHEATH | PVC (Polyvinyl Chloride) |
YOUR CABLE OPTIONS
Use the FastQuote filters to find the exact cable specifications you need.
Need a bespoke solution? Learn more about customised cables.
| Product name | Part No | Cores | Nominal cross-sectional area (mm²) | Sheath colour | Length (m) | |
|---|---|---|---|---|---|---|
| 6381Y Cable | A1FYBL/BL0015 | 1 | 1.5mm² | Blue | ||
| 6381Y Cable | A1FYBL/BL0025 | 1 | 2.5mm² | Blue | ||
| 6381Y Cable | A1FYBL/BL004 | 1 | 4mm² | Blue | ||
| 6381Y Cable | A1FYBL/BL006 | 1 | 6mm² | Blue | ||
| 6381Y Cable | A1FYBL/BL010 | 1 | 10mm² | Blue | ||
| 6381Y Cable | A1FYBL/BL016 | 1 | 16mm² | Blue | ||
| 6381Y Cable | A1FYBL/BL025 | 1 | 25mm² | Blue | ||
| 6381Y Cable | A1FYBL/BL035 | 1 | 35mm² | Blue | ||
| 6381Y Cable | A1FYBL/BL050 | 1 | 50mm² | Blue | ||
| 6381Y Cable | A1FYBL/BL070 | 1 | 70mm² | Blue | ||
| 6381Y Cable | A1FYBL/BL095 | 1 | 95mm² | Blue | ||
| 6381Y Cable | A1FYBL/BL120 | 1 | 120mm² | Blue | ||
| 6381Y Cable | A1FYBL/BL150 | 1 | 150mm² | Blue | ||
| 6381Y Cable | A1FYBL/BL185 | 1 | 185mm² | Blue | ||
| 6381Y Cable | A1FYBL/BL240 | 1 | 240mm² | Blue | ||
| 6381Y Cable | A1FYBL/BL300 | 1 | 300mm² | Blue | ||
| 6381Y Cable | A1FYBL/BL400 | 1 | 400mm² | Blue | ||
| 6381Y Cable | A1FYGR/GR0015 | 1 | 1.5mm² | Grey | ||
| 6381Y Cable | A1FYGR/GR0025 | 1 | 2.5mm² | Grey | ||
| 6381Y Cable | A1FYGR/GR004 | 1 | 4mm² | Grey | ||
| 6381Y Cable | A1FYGR/GR006 | 1 | 6mm² | Grey | ||
| 6381Y Cable | A1FYGR/GR010 | 1 | 10mm² | Grey | ||
| 6381Y Cable | A1FYGR/GR016 | 1 | 16mm² | Grey | ||
| 6381Y Cable | A1FYGR/GR025 | 1 | 25mm² | Grey | ||
| 6381Y Cable | A1FYGR/GR035 | 1 | 35mm² | Grey | ||
| 6381Y Cable | A1FYGR/GR050 | 1 | 50mm² | Grey | ||
| 6381Y Cable | A1FYGR/GR070 | 1 | 70mm² | Grey | ||
| 6381Y Cable | A1FYGR/GR095 | 1 | 95mm² | Grey | ||
| 6381Y Cable | A1FYGR/GR120 | 1 | 120mm² | Grey | ||
| 6381Y Cable | A1FYGR/GR150 | 1 | 150mm² | Grey | ||
| 6381Y Cable | A1FYGR/GR185 | 1 | 185mm² | Grey | ||
| 6381Y Cable | A1FYGR/GR240 | 1 | 240mm² | Grey | ||
| 6381Y Cable | A1FYGR/GR300 | 1 | 300mm² | Grey | ||
| 6381Y Cable | A1FYGR/GR400 | 1 | 400mm² | Grey | ||
| 6381Y Cable | A1FYGY/GY0015 | 1 | 1.5mm² | Green/Yellow | ||
| 6381Y Cable | A1FYGY/GY0025 | 1 | 2.5mm² | Green/Yellow | ||
| 6381Y Cable | A1FYGY/GY004 | 1 | 4mm² | Green/Yellow | ||
| 6381Y Cable | A1FYGY/GY006 | 1 | 6mm² | Green/Yellow | ||
| 6381Y Cable | A1FYGY/GY010 | 1 | 10mm² | Green/Yellow | ||
| 6381Y Cable | A1FYGY/GY016 | 1 | 16mm² | Green/Yellow | ||
| 6381Y Cable | A1FYGY/GY025 | 1 | 25mm² | Green/Yellow | ||
| 6381Y Cable | A1FYGY/GY035 | 1 | 35mm² | Green/Yellow | ||
| 6381Y Cable | A1FYGY/GY050 | 1 | 50mm² | Green/Yellow | ||
| 6381Y Cable | A1FYGY/GY070 | 1 | 70mm² | Green/Yellow | ||
| 6381Y Cable | A1FYGY/GY095 | 1 | 95mm² | Green/Yellow | ||
| 6381Y Cable | A1FYGY/GY120 | 1 | 120mm² | Green/Yellow | ||
| 6381Y Cable | A1FYGY/GY150 | 1 | 150mm² | Green/Yellow | ||
| 6381Y Cable | A1FYGY/GY185 | 1 | 185mm² | Green/Yellow | ||
| 6381Y Cable | A1FYGY/GY240 | 1 | 240mm² | Green/Yellow | ||
| 6381Y Cable | A1FYGY/GY300 | 1 | 300mm² | Green/Yellow | ||
| 6381Y Cable | A1FYGY/GY400 | 1 | 400mm² | Green/Yellow |
