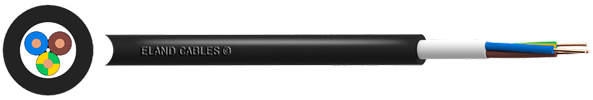

YKXS Cable
Key Features: YKXS Cables
- Application: Polish reference Copper low voltage power cables.
- Suitability: Fixed installation applications internally or externally (including direct burial).
- Standards & Voltage Ratings: IEC 60502-1. Flame retardant to IEC/EN 60332-1-2. 0.6/1kV.
- Construction: Class 1 solid or Class 2 stranded copper conductor, Cross-linked Polyethylene (XLPE) insulation, and Polyvinyl Chloride (PVC) bedding and outer sheath.
- Details: Single and multicore configurations. Core identification with or without G/Y earth core. CPR compliant.
Poland's YKXS cable is for low voltage power distribution application at 0.6/1kV. It is manufactured in accordance with international standard IEC 60502-1 and generally to the Polish adoption of the harmonised document PN HD603.
This cable is CPR Compliant.
YKXS Cable Specification
Available in single and multicore variants, including a 3-core with reduced earth, the YKXS cable has coloured cores including Green/Yellow earth as standard.
Comparable to the N2XY cable, the Class 2 rigid stranded conductors make this cable suitable for fixed installation internally in general buildings and constructions. The Copper conductors provide the optimum balance between current carrying capacity and overall diameter - the YAKXS cable with Aluminium conductors having larger ODs for parity in amperage.
XLPE insulation offers a +90oC maximum operating temperature, and the PVC outer sheathing providing a flame retardant and robust protection against environmental factors. It makes the YKXS cable suitable for external installation where additional mechanical protection is provided.
Technical support for YKXS Cable
Our technical experts and regional specialists combine to help navigate regulatory and compliance requirements for any project installation. Guidance on complementary accessories is also available.
For cable sizes and electrical characteristics, please consult the attached datasheet - should additional data be required, it can be provided on request. All cables are subject to the rigorous assessments of The Cable Lab to provide assurances of quality and compliance.
More information
Construction Table
YKXS Cable 0.6/1kV
|
|
|---|---|
| CONDUCTOR | RE: Class 1 solid copper conductor |
| INSULATION | XLPE (Cross-Linked Polyethylene) |
| BEDDING | PVC (Polyvinyl Chloride) |
| OUTER SHEATH | PVC (Polyvinyl Chloride) |
YOUR CABLE OPTIONS
Use the FastQuote filters to find the exact cable specifications you need.
Need a bespoke solution? Learn more about customised cables.
| Product name | Part No | Cores | Nominal cross-sectional area (mm²) | Sheath colour | Length (m) | |
|---|---|---|---|---|---|---|
| YKXS Cable 0.6/1kV | P2YKXS01016 | 1 | 16mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS01025 | 1 | 25mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS01035 | 1 | 35mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS01050 | 1 | 50mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS01070 | 1 | 70mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS01095 | 1 | 95mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS01120 | 1 | 120mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS01150 | 1 | 150mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS01185 | 1 | 185mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS01240 | 1 | 240mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS01300 | 1 | 300mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS01400 | 1 | 400mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS01500 | 1 | 500mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS01630 | 1 | 630mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS020015 | 2 | 1.5mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS020025 | 2 | 2.5mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS020040 | 2 | 4mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS020060 | 2 | 6mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS02010 | 2 | 10mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS02016 | 2 | 16mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS02025 | 2 | 25mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS02035 | 2 | 35mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS030015 | 3 | 1.5mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS030025 | 3 | 2.5mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS030040 | 3 | 4mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS030060 | 3 | 6mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS03010 | 3 | 10mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS0316/10 | 3 | 16/10mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS03016 | 3 | 16mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS03025/16 | 3 | 25/16mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS03025 | 3 | 25mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS03035/16 | 3 | 35/16mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS03035 | 3 | 35mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS03050/25 | 3 | 50/25mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS03050 | 3 | 50mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS03070/35 | 3 | 70/35mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS03095/50 | 3 | 95/50mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS03120/70 | 3 | 120/70mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS03150/70 | 3 | 150/70mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS03185/95 | 3 | 185/95mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS03240/120 | 3 | 240/120mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS03300/150 | 3 | 300/150mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS040015 | 4 | 1.5mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS040025 | 4 | 2.5mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS040040 | 4 | 4mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS040060 | 4 | 6mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS04010 | 4 | 10mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS04016 | 4 | 16mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS04025 | 4 | 25mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS04035 | 4 | 35mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS04050 | 4 | 50mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS04070 | 4 | 70mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS04095 | 4 | 95mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS04120 | 4 | 120mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS04150 | 4 | 150mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS04185 | 4 | 185mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS04240 | 4 | 240mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS050015 | 5 | 1.5mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS050025 | 5 | 2.5mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS050040 | 5 | 4mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS050060 | 5 | 6mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS05010 | 5 | 10mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS05016 | 5 | 16mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS05025 | 5 | 25mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS05035 | 5 | 35mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS05050 | 5 | 50mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS05070 | 5 | 70mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS05095 | 5 | 95mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS05120 | 5 | 120mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS05150 | 5 | 150mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS05185 | 5 | 185mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS05240 | 5 | 240mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS100015 | 10 | 1.5mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS100025 | 10 | 2.5mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS100040 | 10 | 4mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS120015 | 12 | 1.5mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS120025 | 12 | 2.5mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS140015 | 14 | 1.5mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS140025 | 14 | 2.5mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS160040 | 16 | 4mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS190015 | 19 | 1.5mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS190025 | 19 | 2.5mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS240015 | 24 | 1.5mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS240025 | 24 | 2.5mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS300015 | 30 | 1.5mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS300025 | 30 | 2.5mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS400015 | 40 | 1.5mm² | Black | ||
| YKXS Cable 0.6/1kV | P2YKXS400025 | 40 | 2.5mm² | Black |
