TSLF Cable
The TSLF cable range is for medium voltage fixed wiring external installations. Designed for the Finnish market, the TSLF cable is manufactured in accordance with HD 620 10 K and IEC 60228.
TSLF Cable Specification
Designed to withstand the wide temperature range external applications may face in Finland, the TSLF cable is sheathed in a hard and abrasion resistant Polyethylene (PE) polymer suitable for a minimum operating temperature of -50oC. The single core stranded aluminium conductor offers a lightweight option where space constraints are not a factor.
Underneath the screen is a polyethylene laminated aluminium foil layer alongside the copper wires metallic screen, providing a radial waterblocking in the event the sheathing is compromised. It also has longitudinal waterblocking with swellable tapes below the metallic screen. It makes the TSLF cable suitable for installation where cable ducts are liable to flooding by fresh water and where wet soil is present.
Insulated with XLPE (cross-linked Polyethylene) insulation, the material provides excellent dielectric strength with a low dissipation factor, and offers a maximum conductor operating temperature of +90oC. Although the TSLF cable range is halogen-free, the PE sheathing material means it is without fire protection. It is therefore not CPR-certified. For more information on our range of CPR certified MV cables or for CPR cable training, feel free to contact us to discuss your cable project installation requirements.
TSLF Cable Datasheets
The TSLF cable is just one of many in our range of Scandinavian, European and International MV cable portfolio and our technical team and project managers can help guide you in selecting the most appropriate cable for your installation.
Available on our website in a rated voltage of 18/30kV, this cable can be buried directly in the ground, including waterlogged ground as it benefits from a dual waterblocking protection. Technical datasheets for other voltages are available on request, as are additional cross sectional area sizes.
Accompanying accessories for installation are also available. Please speak to a member of the team to learn more.
More information
Construction Table

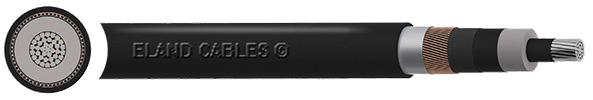

TSLF 18/30kV Cable
|
|
|---|---|
| VOLTAGE | 18/30 (36)kV |
| CONDUCTOR | Class 2 stranded Aluminium |
| INSULATION | XLPE (Cross-linked Polyethylene) - with Conductor screen and Insulation screen applied as a triple extrusion process |
| WATER-BLOCKING | Longitudinal water swellable tape above and below the metallic screen |
| SCREEN | Copper wires and Polyethylene laminated aluminium foil (CAS). (radial waterblocking) |
| OUTER SHEATH | PE (Polyethylene) |
YOUR CABLE OPTIONS
Use the FastQuote filters to find the exact cable specifications you need.
Need a bespoke solution? Learn more about customised cables.
| Product name | Part No | Cores | Nominal cross-sectional area (mm²) | Sheath colour | Length (m) | |
|---|---|---|---|---|---|---|
| TSLF 18/30kV Cable | C9G30KV101095BK | 1 | 95mm² | Black | ||
| TSLF 18/30kV Cable | C9G30KV101120BK | 1 | 120mm² | Black | ||
| TSLF 18/30kV Cable | C9G30KV101150BK | 1 | 150mm² | Black | ||
| TSLF 18/30kV Cable | C9G30KV101240BK | 1 | 240mm² | Black | ||
| TSLF 18/30kV Cable | C9G30KV101300BK | 1 | 300mm² | Black | ||
| TSLF 18/30kV Cable | C9G30KV101400BK | 1 | 400mm² | Black | ||
| TSLF 18/30kV Cable | C9G30KV101630BK | 1 | 630/35mm² | Black | ||
| TSLF 18/30kV Cable | C9G30KV201630BK | 1 | 630/50mm² | Black | ||
| TSLF 18/30kV Cable | C9G30KV101800BK | 1 | 800mm² | Black |
