H05VVH6-F Elevator Flatform Cable
Key Features: H05VVH6-F Elevator Flatform Cable
- Application: Flat travelling cable for use in conveyor and hoist equipment.
- Suitability: For internal and panoramic elevator applications with a freely suspended length of up to 45 metres. Can also be used in cable management festoon systems.
- Standards & Voltage Rating: H05VVH6-F. EN 50124. Flame Retardant to IEC/EN 60332-1-2. 300/500V.
- Construction: Class 5 Flexible Stranded Copper conductor, and Polyvinyl Chloride (PVC) insulation and outer sheath.
- Details: Flat cable configuration allow for the frequent bending and movement of the cable across one plane. CPR compliant.
Eland Cables is a leading global supplier of power, instrumentation and data cables for critical infrastructure and electrification. Our complete cable solutions are underpinned by technical expertise and our Cable Lab®, ensures rigorous compliance. Contact our team to discuss your requirements.
Jump To:
- What is a H05VVH6-F Elevator Flatform Cable?
- H05VVH6-F Cable Voltage & Application
- Technical Support for Elevator Flatform Cable
- Datasheet
H05VVH6-F elevator flatform cable (and the larger sized H07VV6H-F cable), is a flat travelling cable for use in conveyor and hoist equipment. The flat cable configuration allows for the frequent bending and movement of the cable across one plane.
Manufactured to European harmonised standard H05VVH6-F the nomenclature is broken down into the following:
H: Harmonized standard
05: Voltage rating for 300/500 V
V: PVC insulation
V: PVC outer sheath
H6: Flat, divisible cable construction
-F: Flexible stranded copper conductors (Class 5)
The H05VVH6-F cable is suitable for internal and panoramic elevator applications with a freely suspended length of up to 45 metres and requiring a voltage rating of 300/500V. The cables are designed for both internal and external applications to an ambient temperature of -20oC to +70oC.

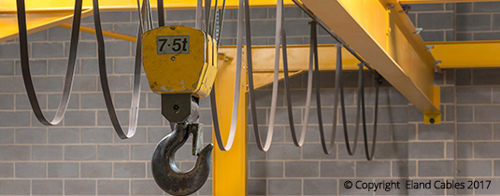

Notable industry applications include airport travellators. They can also be used in cable management festoon systems, delivering power and control signals to overhead cranes and other moving machinery.
The H05VVH6-F is available in multicore sizes ranging from 6 cores up to 24 cores in a cross sectional area size of 0.75mm2.
The 450/750V flat cable, with the harmonised designation H07VVH6-F, is also available upon request. H07VVH6-F cables are available with cores of a cross-sectional area size of 1.5mm2 and above.
H05VVH6-F Cable Mechanical Properties
| Free suspension length | Maximum 45m |
| Travelling height | Maximum 80m |
| Running speed | Maximum 6.3m/s |
The data required to support specification is included on the technical datasheet, but where additional information is needed our technical team is on hand to provide support. Where appropriate, this can include providing suitable alternative compliant solutions for festoon applications.
More information
Construction Table
H05VVH6-F Elevator Flatform Cable
|
|
|---|---|
| VOLTAGE | 300/500V |
| CONDUCTOR | Class 5 Flexible Stranded Copper |
| INSULATION | PVC (Polyvinyl Chloride) |
| OUTER SHEATH | PVC (Polyvinyl Chloride) |
YOUR CABLE OPTIONS
Use the FastQuote filters to find the exact cable specifications you need.
Need a bespoke solution? Learn more about customised cables.
| Product name | Part No | Cores | Nominal cross-sectional area (mm²) | Sheath colour | Length (m) | |
|---|---|---|---|---|---|---|
| H05VVH6-F Elevator Flatform Cable | A1TR060075BK | 6 | 0.75mm² | Black | ||
| H05VVH6-F Elevator Flatform Cable | A1TR120075BK | 12 | 0.75mm² | Black | ||
| H05VVH6-F Elevator Flatform Cable | A1TR180075BK | 18 | 0.75mm² | Black | ||
| H05VVH6-F Elevator Flatform Cable | A1TR200075BK | 20 | 0.75mm² | Black | ||
| H05VVH6-F Elevator Flatform Cable | A1TR240075BK | 24 | 0.75mm² | Black |
