FXQJ cables are low voltage power cables designed for the Swedish market. Manufactured to SS 424 14 18, they are compliant with the Construction Products Regulation (CPR) so suitable for applications in building and construction projects of a medium risk assessment.
FXQJ 1kV Cable Specification

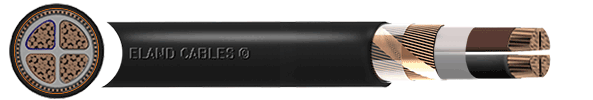

The FXQJ cables have copper conductors sheathed in an HFFR compound - halogen free flame retardant - and have a copper wire and tape screen. The FXQJ-EMC cable screen offers 100% coverage to provide electromagnetic compatibility with other cables in the immediate proximity. Both are suitable for internal installations where the protection of life and sensitive equipment is of paramount importance.
The FXQJ cables have a wide variety of applications across domestic and industrial wiring. It has an aluminium equivalent AXQJ cable. As with the aluminium version, the FXQJ and FXQJ-EMC cables have a wide operating temperature of -40oc to +90oC (the upper temperature being a maximum conductor operating temperature determined by the XLPE insulation). This broad temperature range is reflective of the environmental challenges projects in Sweden may face.
FXQJ 1kV Cable Datasheet
Our cable datasheets provide the commonly specified cable sizes with accompanying diameter and weight information. Where additional information including electrical characteristics are required please speak to the team about your project needs.
The FXQJ 1kV cables are available in 2-cores and upwards, including 3-core with reduced earth configurations.
For more information and assistance in specifying these cables, please speak to our technical team. Eland Cables offers a wide portfolio of low voltage power specific to national wiring regulations including Finnish XCMK-HF cable, the Dutch YMz1K mbzh, and Belgian XGB cables.
|FXQJ 1kV Cable||FXQJ EMC 1kV Cable|
Class 2 stranded copper
XLPE (Cross-linked Polyethylene)
HFFR (Halogen Free Flame Retardant)
Copper wires in open helix
Copper wires and tape (100% coverage)
LSZH (Low Smoke Zero Halogen)
YOUR CABLE OPTIONS
Use the FastQuote filters to find the exact cable specifications you need.
Need a bespoke solution? Learn more about customised cables.
|Product name||Part No||Cores||Nominal cross-sectional area (mm²)||Sheath colour||Length (m)|
|FXQJ 1kV Cable||B1F040025BK||4||2.5mm²||Black|
|FXQJ 1kV Cable||B1F040060BK||4||6mm²||Black|
|FXQJ 1kV Cable||B1F04010BK||4||10mm²||Black|
|FXQJ 1kV Cable||B1F04016BK||4||16mm²||Black|
|FXQJ EMC 1kV Cable||B1G030025/2.5BK||3||2.5/2.5mm²||Black|
|FXQJ EMC 1kV Cable||B1G030060/6BK||3||6/6mm²||Black|
|FXQJ EMC 1kV Cable||B1G03010/10BK||3||10/10mm²||Black|
|FXQJ EMC 1kV Cable||B1G03016/10BK||3||16/16mm²||Black|
|FXQJ EMC 1kV Cable||B1G03025/16BK||3||25/16mm²||Black|
|FXQJ EMC 1kV Cable||B1G03035/16BK||3||35/16mm²||Black|
|FXQJ EMC 1kV Cable||B1G03050/25BK||3||50/25mm²||Black|
|FXQJ EMC 1kV Cable||B1G03070/35BK||3||70/35mm²||Black|
|FXQJ EMC 1kV Cable||B1G03095/50BK||3||95/50mm²||Black|
|FXQJ EMC 1kV Cable||B1G03120/70BK||3||120/70mm²||Black|
|FXQJ EMC 1kV Cable||B1G03150/70BK||3||150/70mm²||Black|
|FXQJ EMC 1kV Cable||B1G03185/95BK||3||185/95mm²||Black|
|FXQJ EMC 1kV Cable||B1G03240/12BK||3||240/120mm²||Black|
|FXQJ EMC 1kV Cable||B1G03300/150BK||3||300/150mm²||Black|
|FXQJ EMC 1kV Cable||B1G040025/2.5BK||4||2.5/2.5mm²||Black|
|FXQJ EMC 1kV Cable||B1G040060/6BK||4||6/6mm²||Black|
|FXQJ EMC 1kV Cable||B1G04010/10BK||4||10/10mm²||Black|
|FXQJ EMC 1kV Cable||B1G04016/10BK||4||16/16mm²||Black|
|FXQJ EMC 1kV Cable||B1G04025/16BK||4||25/16mm²||Black|
|FXQJ EMC 1kV Cable||B1G04035/16BK||4||35/16mm²||Black|
|FXQJ EMC 1kV Cable||B1G04050/25BK||4||50/25mm²||Black|
|FXQJ EMC 1kV Cable||B1G04070/35BK||4||70/35mm²||Black|
|FXQJ EMC 1kV Cable||B1G04095/50BK||4||95/50mm²||Black|
|FXQJ EMC 1kV Cable||B1G04120/70BK||4||120/70mm²||Black|
|FXQJ EMC 1kV Cable||B1G04150/70BK||4||150/70mm²||Black|
|FXQJ EMC 1kV Cable||B1G04185/95BK||4||185/95mm²||Black|
|FXQJ EMC 1kV Cable||B1G04240/12BK||4||240/120mm²||Black|
|FXQJ EMC 1kV Cable||B1G04300/150BK||4||300/150mm²||Black|
