EXCG, EXeCG and EXeCeG Cables

Included in our Medium Voltage range are cables supplied against Belgian references. This includes the EXCG Copper cable with Low Smoke Zero Halogen, flame & fire retardant, sheathing, suitable for internal as well as direct burial power distribution applications.

Where required, these cables are available with additional longitudinal and radial (transverse) waterblocking properties, where water swellable tapes and/or Al/PET tapes are included in the cable construction. This addition is identified in the cable name.

The EXCG, EXeCG and EXeCeG cables are manufactured in accordance with IEC 60502-2 and Generally to HD 620 10B.

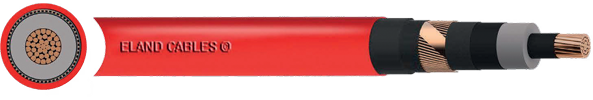

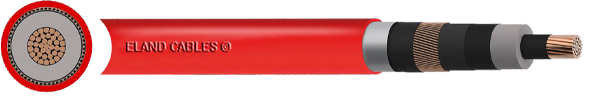

EXCG Cable Construction

For ease of reference this is the Belgian cable nomenclature explained. As with many cable naming codes, a copper conductor is assumed unless specifically stated otherwise, in this case listed as the letter A. PDF datasheets for our aluminium variants can be downloaded from the EAXCG, EAXeCG & EAXeCeG page.

EXCG, EXeCG & EXeCeG cable voltages

These MV cables are available in the following voltages:

Should alternate voltages be required, these can be supplied and a datasheet provided on request.

These Belgian reference cables are of the same construction as the N2XSH Cable (and waterblocked variants) that use the German nomenclature.

EXCG, EXeCG & EXeCeG Specification & Technical Support

Eland Cables' technical team are on-hand to answer specification queries, to ensure the most appropriate cable is identified for your project installation. The technical datasheets linked below also provide key information on cable sizing and electrical properties - as ever, supplemental data is available should it be required. For support, speak to a member of the sales team who will be able to best direct your enquiry.
