EAXCG, EAXeCG and EAXeCeG Cables

Our Aluminium Medium Voltage Cable range includes cables using the Belgian designations. EAXCG and the associated variants offer MV voltages with LSZH (Low Smoke Zero Halogen) properties, making them suited to both installations buried directly in the ground and those run internally in buildings.

The EAXCG, EAXeCG and EAXeCeG cables are manufactured in accordance with IEC 60502-2 and Generally to HD 620 10B. They are CPR compliant.

A consideration for installations buried direct may be to protect against water ingress - the EAXCG cable is available with additional water blocking properties featuring longitudinal and radial (transverse) water swellable tapes and/or Al/PET tapes.

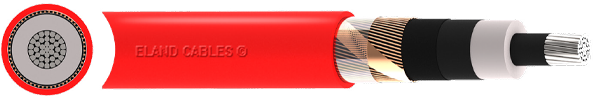

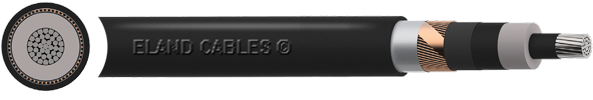

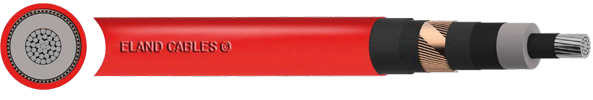

EAXCG Cable Construction

For ease of reference this is the Belgian cable nomenclature explained. The inclusion of the letter 'A' after the reference to Energy Cables denotes the conductor material being Aluminium - as with many similar nomenclature, a copper conductor is assumed unless specifically stated otherwise. Technical datasheets for the copper variants are available to download from the EXCG, EXeCG & EXeCeG page.

EAXCG, EAXeCG & EAXeCeG cable voltages

These Belgian Aluminium-XLPE-LSZH Medium Voltage cables are available in the following voltages:

Should alternate voltages be required, these can be supplied and a datasheet provided on request.

For reference, this is the same construction and voltage as the NA2XSH, NA2XS(F)H and NA2XS(FL)H Cables.

EAXCG Technical Support

Ensuring accurate specification to match your installation parameters is essential. To support this, Eland Cables' technical team are on-hand to answer queries so as to ensure the most appropriate cable is identified. The PDF datasheets below also provide key information on cable weights, ODs and electrical properties - with supplemental data is available on request. For support, speak to a member of the sales team who will be able to best direct your enquiry.
