Socapex Cable

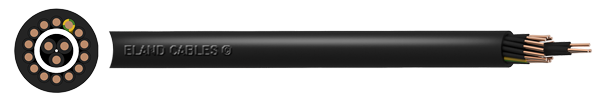

Socapex Cable Click here to view the cable arrow-no-circles.png

Applications Overview

Our highly flexible multicore Socapex cable is widely used in the connection of lighting technology and dimmer racks in events of all types around the world. This range is suitable for use in dry and damp environment. With its PVC sheathing, it is also designed to withstand moderate mechanical stress and UV exposure when used outdoors.

Socapex cables can be used in free and fixed applications with a voltage rating of 300/500V.

Socapex cable construction

Conductor Flexible copper (Class 5)
Insulation Polyvinyl chloride (PVC) Type TI1
Outer Sheath Polyvinyl Chloride (PVC) Type TM2

Socapex cable dimensions

Some of our most popular Socapex cable sizes include:

Part Number Number of Cores Nominal Cross-Sectional Area Maximum Overall Diameter mm Nominal Weight kg/km
A5Y18015 18 1.5mm2 14.5 432
A5Y18025 18 2.5mm2 17.9 692


For full technical specifications please refer to the datasheets or speak to our technical team for more advice.

Range of Cables

Back to top

Cable Standards and Approvals

Socapex Cable

DIN VDE 0472 Part 804, IEC 60332-1, BS EN 60228, DIN EN 50290-2-22, VDE 0819-102, TM54
