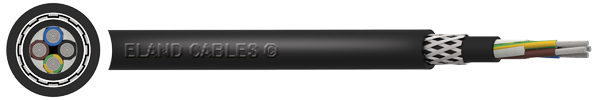

NSHTÖU Cable
The NSHTOU cable, available both with a reinforced heavy-duty rubber sheathing and with PUR, can be used wherever cables are frequently reeled, unreeled, or guided by roller trains. NSHTOU is designed with simultaneous tensile and torsional stress in mind, for applications under heavy mechanical stress such as hoists, conveyors, cranes, multispiral and monospiral drum and drag cables, hawsers, and other building machinery, and have common use within the mining industry for mobile equipment and dynamic static processing equipment. The variation (N)SHTOU offers a cable capable of handling applications with greater torsional stress.
Opencast Mining Operations - Type 21 Cable
This cable has applications in rough surface mining operations where it is may also be referred to as Type 21 cable. With the harsh environmental impact on cables and other components, the cables are designed to act as flexible trailing cables under heavy-duty stresses.
NSHTÖU Cable Reeling Speeds
The NSHTÖU cable portfolio is defined by the cable reeling speeds, determining which specification is most appropriate for your high-speed crane reeling operations.
| NSHTÖU | Maximum working speed 120m/min |
| (N)SHTÖU | Maximum working speed 180m/min |

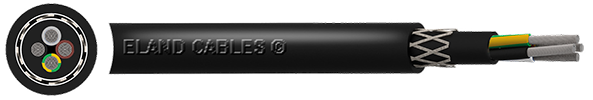

| (N)SHTÖU PUR | Maximum working speed 180m/min |
NSHTÖU Crane Cable Construction
| Conductor | Flexible tinned copper (Class 5) |
| Insulation | Rubber compound Type 3GI3 |
| Filler | Ethylene Propylene Rubber (EPR) Type 3GI3 on a textile polyester support |
| Bedding | Rubber compound Type GM1b |
| Braiding | Polyester braid |
| Outersheath | Rubber compound Type 5GM3 |
Our NSHTÖU-O and (N)SHTÖU-O cables (without earth conductor) and the NSHTÖU-J and (N)SHTÖU-J cables (without green/yellow earth conductor) offer resistance against oils and UV light. Additional resistance to the operational stresses is provided by an anti-torsion polyester braid.
NSHTÖU and (N)SHTÖU cables are suitable for outdoor installations and in dry, moist or wet rooms. They have an operating temperature range of -25oC to +60oC when flexed and -40oC to +60oC when fixed.
All variations, including the PUR-sheathed cable, are available with 4, 5, 7, 12, 18, 24, 30, 42 or 45 cores. The choice of rubber or PUR sheathing will depend on the individual application and installation environment.
NSHTÖU cable dimensions
Some of our most popular NSHTÖU cable sizes include 4-core variations:
| Part Number | Number of Cores | Nominal Cross-Sectional Area | Nominal Overall Diameter mm | Nominal Weight kg/km | Maximum Tensile Load N |
|---|---|---|---|---|---|
| A7M4G0015YW | 4 | 1.5mm2 | 14.3 | 270 | 90 |
| A7M4G0025YW | 4 | 2.5mm2 | 15.8 | 330 | 150 |
| A7M4G0040YW | 4 | 4.0m2 | 17.5 | 420 | 240 |
| A7M4G0060YW | 4 | 6.0mm2 | 18.8 | 520 | 360 |
| A7M4G010YW | 4 | 10mm2 | 22.4 | 750 | 600 |
| A7M4G016YW | 4 | 16mm2 | 24.5 | 970 | 960 |
| A7M4G025YW | 4 | 25mm2 | 30.1 | 1450 | 1500 |
| A7M4G035YW | 4 | 35mm2 | 32.7 | 1890 | 2100 |
| A7M4G050YW | 4 | 50mm2 | 37.8 | 2600 | 3000 |
| A7M4G070YW | 4 | 70mm2 | 41.9 | 3340 | 4200 |
| A7M4G095YW | 4 | 95mm2 | 47.8 | 4380 | 5700 |
| A7M4G120YW | 4 | 120mm2 | 51.4 | 5330 | 7200 |
| A7M4G150YW | 4 | 150mm2 | 56.9 | 6700 | 9000 |
For full technical specifications and other core sizes please refer to the datasheets or speak to our technical team for more advice.
Range of Cables
Back to top
Cable Standards and Approvals
(N)SHÖU O/J - 0.6/1kV Cable
Generally to VDE 0250 Part 812, VDE 0295, BS EN/IEC 60332-1-2, BS EN/IEC 60811-2-1
