Electricity North West (ENW) cable

Key Features: ENW Cable

Application: Medium voltage power cables for Electricity North West (ENW) grids.
Suitability: For connections from existing grid to new sub-main developments subject to adoption by the DNO.
Standards & Voltage Ratings: BS 7870-4.10. 6.35/11kV and 19/33kV.
Construction: Class 1 solid (11kV) or Class 2 stranded (33kV) aluminium conductor, Cross-linked Polyethylene (XLPE) insulation, Copper wire and tape screen, Binding tape separator, and Medium Density Polyethylene (MDPE) outer sheath.
Details: G81 approved manufacturing. Triplex formation for 11kV and single core for 33kV.

Eland Cables is a leading global supplier of power, instrumentation and data cables for critical infrastructure and electrification. Our complete cable solutions are underpinned by technical expertise and our Cable Lab^®, ensures rigorous compliance. Contact our team to discuss your requirements.

Jump To:

ENW Cable: DNO-approved Electricity North West
ENW Cable Specifications
DNO cables available from stock
Datasheets

ENW cables are Medium voltage DNO power cable approved to Electricity North West (ENW) specification and manufactured by G81 suppliers for connections from existing grid to new sub-main developments.

In total, Electricity North West owns and maintains over 44,000km of underground cable and 13,000km of overhead line wire.

The Electricity North West 11kV cable is in triplex formation - three single cores wound together - with solid Class 1 Aluminium conductors. For the 33kV cable they are single core Class 2 rigid stranded Aluminium.

They are sheathed in a robust abrasion and tear-resistant MDPE (Medium Density Polyethylene) as these cables are for external installation, usually in cable ducts.

For both cables, the screen cross-sectional area size is tailored to these specifications.

Full technical datasheets are available for PDF download or contact us for technical and project assistance.

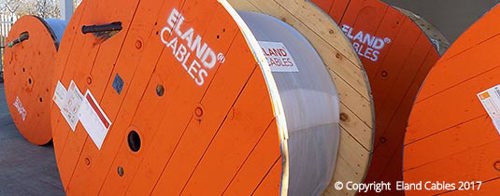

The 11kV and 33kV ENW cable are commonly held in stock for immediate despatch. For larger requirements, we offer some of the shortest manufacturing lead times in the industry. Contact our DNO-specialists for more information on our cable portfolio and the services designed to support NERS contractors and iDNOs.

These DNO-approved cables form part of the wider range of Medium Voltage cables including 6kV, 11kv, 22kV and 33kV British Standard armoured cables and 10kV, 20kV and 30kV European standard unarmoured cables. Additionally, Low Voltage Waveform cables for all Distribution Network Operators and a complete range of cable accessories are available.

More information

Construction Table

	Electricity North West (ENW) 11kV cable	Electricity North West (ENW) 33kV cable
VOLTAGE	6.35/11kV	19/33kV
CONDUCTOR	Class 1 Solid Aluminium	Class 2 Stranded Aluminium
INSULATION	XLPE (Cross-Linked Polyethylene)
SCREEN	Copper Wires and Equalising Tape
SEPARATOR	Binding Tape
OUTER SHEATH	MDPE (Medium Density Polyethylene)
