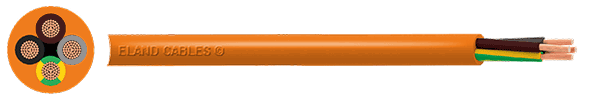

CR1-C1 Fire Resistant Cable
The CR1-C1 cable is a fire performance cable manufactured in accordance with French Normes NF C 32-310 and fire resistant to C1 in accordance with NF M 32-070. It is designed for use with emergency lighting, automatic fire detection systems, fire suppression systems and other applications requiring circuit integrity. It can be used for power applications or for control and signalling connections.
The CR1-C1 fire resistant cable has the voltage rating 300/500V and has a maximum operating temperature of +90oC, and a maximum short circuit rating of +350oC. It can be used in environments where the temperature drops to a low of -15oC. CR1-C1 cables are available as single core and multicores, and have colour-coded silicone rubber insulation covering the Class 1 solid or Class 2 stranded copper conductors (depending on cross-sectional area size). Insulated conductors are covered by thermoplastic LSZH outer sheathing.
This French standard cable is part of a wider portfolio of fire resistant cables including the European EN 60332-3-24 NHXH & NHXCH FE180 cables. Eland Cables' sales and technical teams can provide assistance with the specification of suitable fire performance cables on request.
Construction Table
CR1-C1 Fire Resistant Cable
|
|
|---|---|
| VOLTAGE | 0.6/1kV |
| CONDUCTOR | Class 1 solid or Class 2 stranded Copper |
| INSULATION | Fire resistant Silicone rubber |
| OUTER SHEATH | LSZH (Low Smoke Zero Halogen) |
YOUR CABLE OPTIONS
Use the FastQuote filters to find the exact cable specifications you need.
Need a bespoke solution? Learn more about customised cables.
| Product name | Part No | Cores | Nominal cross-sectional area (mm²) | Sheath colour | Length (m) | |
|---|---|---|---|---|---|---|
| CR1-C1 Fire Resistant Cable | B5C010015OR | 1 | 1.5 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C010025OR | 1 | 2.5 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C010040OR | 1 | 4 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C010060OR | 1 | 6 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C01010OR | 1 | 10 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C01016OR | 1 | 16 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C01025OR | 1 | 25 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C01035OR | 1 | 35 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C01050OR | 1 | 50 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C01070OR | 1 | 70 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C01095OR | 1 | 95 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C01120OR | 1 | 120 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C01150OR | 1 | 150 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C01185OR | 1 | 185 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C01240OR | 1 | 240 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C01300OR | 1 | 300 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C020015OR | 2 | 1.5 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C020025OR | 2 | 2.5 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C020040OR | 2 | 4 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C020060OR | 2 | 6 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C02010OR | 2 | 10 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C02016OR | 2 | 16 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C02025OR | 2 | 25 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C02035OR | 2 | 35 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C02050OR | 2 | 50 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C02070OR | 2 | 70 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C02095OR | 2 | 95 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C030015OR | 3 | 1.5 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C030025OR | 3 | 2.5 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C030040OR | 3 | 4 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C030060OR | 3 | 6 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C03010OR | 3 | 10 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C03016OR | 3 | 16 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C03025OR | 3 | 25 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C03035OR | 3 | 35 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C03050OR | 3 | 50 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C03070OR | 3 | 70 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C03095OR | 3 | 95 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C040015OR | 4 | 1.5 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C040025OR | 4 | 2.5 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C040040OR | 4 | 4 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C040060OR | 4 | 6 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C04010OR | 4 | 10 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C04016OR | 4 | 16 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C04025OR | 4 | 25 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C04035OR | 4 | 35 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C04050OR | 4 | 50 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C04070OR | 4 | 70 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C04095OR | 4 | 95 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C050015OR | 5 | 1.5 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C050025OR | 5 | 2.5 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C050040OR | 5 | 4 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C050060OR | 5 | 6 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C05010OR | 5 | 10 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C05016OR | 5 | 16 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C05025OR | 5 | 25 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C05035OR | 5 | 35 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C05050OR | 5 | 50 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C05070OR | 5 | 70 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C05095OR | 5 | 95 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C060015OR | 6 | 1.5 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C060025OR | 6 | 2.5 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C070015OR | 7 | 1.5 | Orange | ||
| CR1-C1 Fire Resistant Cable | B5C070025OR | 7 | 2.5 | Orange |
