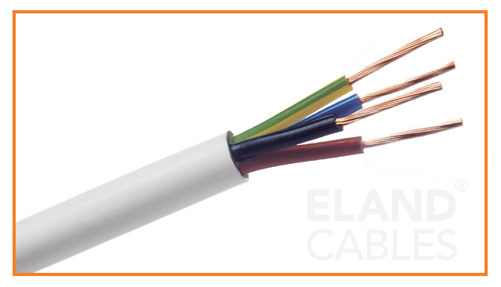

309-Y / H05V2V2-F Cable
Key Features: 309-Y / H05V2V2-F Cable
- Application: Harmonised European standard low voltage heat-resistant flexible power cable.
- Suitability: For internal wiring or supply cords to medium size electrical apparatus and portable tooling.
- Standards & Voltage Rating: EN 50525 Part 2-11. Flame Retardant to IEC/EN 60332-1-2. 300/500V
- Construction: Class 5 flexible stranded copper conductor, with Polyvinyl Chloride (PVC) insulation and outer sheath.
- Details: Multicore configuration, with core sizes to 2.5mm2. CPR compliant.
Eland Cables is a leading global supplier of power, instrumentation and data cables for critical infrastructure and electrification. Our complete cable solutions are underpinned by technical expertise and our Cable Lab®, ensures rigorous compliance. Contact our team to discuss your requirements.
Jump To:
The 309-Y / H05V2V2-F is a Harmonised European standard low voltage heat-resistant flexible power cable. Manufactured in accordance with standard BS EN 50525 Part 2-11, this cable is designed for internal wiring or supply cords to medium size electrical apparatus. This cable is also Flame Retardant according to IEC/EN 60332-1-2 and is CPR compliant.
The 309-Y / H05V2V2-F cable is available in a number of core sizes, with the most common cross-sectional conductor sizes being 0.75mm2, 1mm2, 1.5mm2 and 2.5mm2.
With a voltage rating of 300/500V, the 309-Y cable is suitable for use where there is low risk of mechanical stresses in the application, such as on portable tools, washing machines, and other domestic appliances. This cable is not suitable for outdoor use or for direct laying on trays or in racks.
With its heat-resistant insulation and outersheath, the H05V2V2-F PVC cable has a temperature rating when flexed of between 0oC and +90oC, making it particularly well suited to fluctuating and high temperature environments such as near storage heaters and cookers.
More information
Construction Table
309-Y / H05V2V2-F Cable
|
|
|---|---|
| VOLTAGE | 300/500V |
| CONDUCTOR | Class 5 Flexible Stranded Copper |
| INSULATION | PVC (Polyvinyl Chloride) |
| OUTER SHEATH | PVC (Polyvinyl Chloride) |
YOUR CABLE OPTIONS
Use the FastQuote filters to find the exact cable specifications you need.
Need a bespoke solution? Learn more about customised cables.
| Product name | Part No | Cores | Nominal cross-sectional area (mm²) | Sheath colour | Length (m) | |
|---|---|---|---|---|---|---|
| 309-Y / H05V2V2-F Cable | A5Y020075HRWH | 2 | 0.75mm² | White | ||
| 309-Y / H05V2V2-F Cable | A5Y030075HRWH | 3 | 0.75mm² | White | ||
| 309-Y / H05V2V2-F Cable | A5Y03010HRWH | 3 | 1mm² | White | ||
| 309-Y / H05V2V2-F Cable | A5Y03015HRWH | 3 | 1.5mm² | White | ||
| 309-Y / H05V2V2-F Cable | A5Y03025HRWH | 3 | 2.5mm² | White | ||
| 309-Y / H05V2V2-F Cable | A5Y040075HRWH | 4 | 0.75mm² | White | ||
| 309-Y / H05V2V2-F Cable | A5Y04010HRWH | 4 | 1mm² | White | ||
| 309-Y / H05V2V2-F Cable | A5Y04015HRWH | 4 | 1.5mm² | White | ||
| 309-Y / H05V2V2-F Cable | A5Y04025HRWH | 4 | 2.5mm² | White | ||
| 309-Y / H05V2V2-F Cable | A5Y050075HRWH | 5 | 0.75mm² | White |
