318-TRS / H05RR-F Cable
Key Features: 318-TRS / H05RR-F Cable
- Application: Harmonised European low voltage flexible cable with robust rubber sheathing.
- Suitability: For use in fixed installations in domestic premises and as an extension lead.
- Standards & Voltage Rating: EN 50525-1-21. Flame Retardant to IEC/EN 60332-1-2. 300/500V.
- Construction: Class 5 flexible stranded copper conductor, Rubber compound insulation, and Rubber outer sheath.
- Details: Can be repeatedly coiled and uncoiled without undue wear. Water and oil resistant. CPR compliant.
Eland Cables is a leading global supplier of power, instrumentation and data cables for critical infrastructure and electrification. Our complete cable solutions are underpinned by technical expertise and our Cable Lab®, ensures rigorous compliance. Contact our team to discuss your requirements.

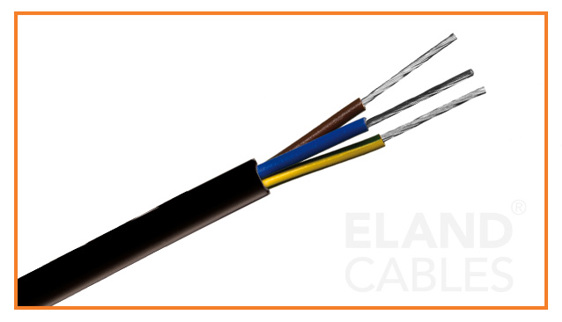

The 318-TRS (harmonised code H05RR-F) is a tough rubber sheathed flexible cable designed for use in fixed installations in domestic premises as well as kitchens and office environments.
This robust cable is ideally suited for use as 13 Amp mains extension leads to provide power to portable appliances. With its durable rubber compound insulation and sheath, it can be repeatedly coiled and uncoiled without undue wear, and offers resistance to water and oils.
318-TRS / H05RR-F cables are manufactured in accordance with BS EN 50525-1-21, Flame Retardant to IEC/EN 60332-1-2 and are CPR compliant.
They have a voltage rating of 300/500V and a temperature rating of -25oC to +60oC.
These 318-TRS cables are available with 2-core, 3-core, 4-core and 5-core variations and in cross sectional conductor sizes starting from 0.75mm2 and upwards.
More information
Construction Table
318-TRS / H05RR-F Cable
|
|
|---|---|
| VOLTAGE | 300/500V |
| CONDUCTOR | Class 5 Flexible Stranded Copper |
| INSULATION | Rubber Compound |
| OUTER SHEATH | Rubber |
YOUR CABLE OPTIONS
Use the FastQuote filters to find the exact cable specifications you need.
Need a bespoke solution? Learn more about customised cables.
| Product name | Part No | Cores | Nominal cross-sectional area (mm²) | Sheath colour | Length (m) | |
|---|---|---|---|---|---|---|
| 318-TRS / H05RR-F Cable | A5H030075BK | 3 | 0.75mm² | Black | ||
| 318-TRS / H05RR-F Cable | A5H03010BK | 3 | 1mm² | Black | ||
| 318-TRS / H05RR-F Cable | A5H03015BK | 3 | 1.5mm² | Black | ||
| 318-TRS / H05RR-F Cable | A5H03025BK | 3 | 2.5mm² | Black | ||
| 318-TRS / H05RR-F Cable | A5H020075BK | 2 | 0.75mm² | Black | ||
| 318-TRS / H05RR-F Cable | A5H02010BK | 2 | 1mm² | Black | ||
| 318-TRS / H05RR-F Cable | A5H02015BK | 2 | 1.5mm² | Black | ||
| 318-TRS / H05RR-F Cable | A5H02025BK | 2 | 2.5mm² | Black | ||
| 318-TRS / H05RR-F Cable | A5H02040BK | 2 | 4mm² | Black | ||
| 318-TRS / H05RR-F Cable | A5H03040BK | 3 | 4mm² | Black | ||
| 318-TRS / H05RR-F Cable | A5H03060BK | 3 | 6mm² | Black | ||
| 318-TRS / H05RR-F Cable | A5H040075BK | 4 | 0.75mm² | Black | ||
| 318-TRS / H05RR-F Cable | A5H04010BK | 4 | 1mm² | Black | ||
| 318-TRS / H05RR-F Cable | A5H04015BK | 4 | 1.5mm² | Black | ||
| 318-TRS / H05RR-F Cable | A5H04025BK | 4 | 2.5mm² | Black | ||
| 318-TRS / H05RR-F Cable | A5H04040BK | 4 | 4mm² | Black | ||
| 318-TRS / H05RR-F Cable | A5H04060BK | 4 | 6mm² | Black | ||
| 318-TRS / H05RR-F Cable | A5H050075BK | 5 | 0.75mm² | Black | ||
| 318-TRS / H05RR-F Cable | A5H05010BK | 5 | 1mm² | Black | ||
| 318-TRS / H05RR-F Cable | A5H05015BK | 5 | 1.5mm² | Black | ||
| 318-TRS / H05RR-F Cable | A5H05025BK | 5 | 2.5mm² | Black | ||
| 318-TRS / H05RR-F Cable | A5H05040BK | 5 | 4mm² | Black | ||
| 318-TRS / H05RR-F Cable | A5H020075WH | 2 | 0.75mm² | White | ||
| 318-TRS / H05RR-F Cable | A5H02010WH | 2 | 1mm² | White | ||
| 318-TRS / H05RR-F Cable | A5H02015WH | 2 | 1.5mm² | White | ||
| 318-TRS / H05RR-F Cable | A5H02025WH | 2 | 2.5mm² | White | ||
| 318-TRS / H05RR-F Cable | A5H02040WH | 2 | 4mm² | White | ||
| 318-TRS / H05RR-F Cable | A5H030075WH | 3 | 0.75mm² | White | ||
| 318-TRS / H05RR-F Cable | A5H03010WH | 3 | 1mm² | White | ||
| 318-TRS / H05RR-F Cable | A5H03015WH | 3 | 1.5mm² | White | ||
| 318-TRS / H05RR-F Cable | A5H03025WH | 3 | 2.5mm² | White | ||
| 318-TRS / H05RR-F Cable | A5H03040WH | 3 | 4mm² | White | ||
| 318-TRS / H05RR-F Cable | A5H03060WH | 3 | 6mm² | White | ||
| 318-TRS / H05RR-F Cable | A5H040075WH | 4 | 0.75mm² | White | ||
| 318-TRS / H05RR-F Cable | A5H04010WH | 4 | 1mm² | White | ||
| 318-TRS / H05RR-F Cable | A5H04015WH | 4 | 1.5mm² | White | ||
| 318-TRS / H05RR-F Cable | A5H04025WH | 4 | 2.5mm² | White | ||
| 318-TRS / H05RR-F Cable | A5H04040WH | 4 | 4mm² | White | ||
| 318-TRS / H05RR-F Cable | A5H04060WH | 4 | 6mm² | White | ||
| 318-TRS / H05RR-F Cable | A5H050075WH | 5 | 0.75mm² | White | ||
| 318-TRS / H05RR-F Cable | A5H05010WH | 5 | 1mm² | White | ||
| 318-TRS / H05RR-F Cable | A5H05015WH | 5 | 1.5mm² | White | ||
| 318-TRS / H05RR-F Cable | A5H05025WH | 5 | 2.5mm² | White | ||
| 318-TRS / H05RR-F Cable | A5H05040WH | 5 | 4mm² | White |
